EPAstore® – ESD storage solutions

EPAstore® – ESD storage solutions

The products in the EPAstore® series ensure ESD safety when storing and transporting components and assemblies. We offer you a wide selection of 200 different standard solutions for your Euro and KLT containers to meet your individual packaging solutions.
Our three different permanently conductive materials and thicknesses ensure reliable protection against electrostatic discharge.

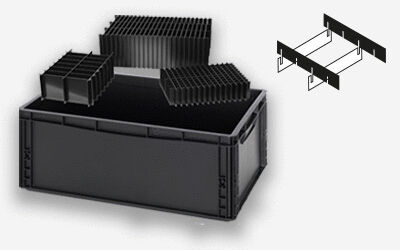

How are parting inserts made up?

PARTITIONS

PARTITIONS

Partitions for subdividing containers into any compartment size.

Plus
INTERLAYERS

INTERLAYERS

For use in transport containers to transport or store electronic components in an orderly manner and in layers.

Trenneinsätze und Gefache für Euro- und KLT-Behälter

Partitions and parting inserts for Euro and KLT containers

With the partitions, you can divide your containers into any compartment size. These can be made of different materials and are available from stock at short notice - even in small quantities - in various designs for Euro and KLT containers measuring 400 x 300 mm and 600 x 400 mm.

For space-saving shipping, we deliver your parting inserts bundled for self-assembly. On request, we can also assemble your parting inserts for you or send them directly in combination with an order of matching Euro containers

Our available materials

PP: polypropylenee
PS: polystyrene

Our parting inserts suitable for your container

In addition to the standard versions, we are also happy to supply you with partitions/parting inserts for your individual application. This means that even non-standard containers can be easily fitted with partitions/parting inserts. Any grid width in mm and partition wall heights from 20 mm can be customized.

Configure now

Our parting inserts suitable for your container

Interlayers

Our interlayersare suitable as stable, abrasion-resistant and, above all, reusable interlayers/inserts and are used for load securing, among other things. Resources are saved to a considerable extent.
Perfect integration into automated production processes is another argument in favor of using interlayers.

The interlayers are easy to use and are available in different versions that differ in terms of material, cutouts, thickness and dimensions.

Our available materials

PP: polypropylene
PS: polystyrene
PE: polyethylene
PP/ PE: PP with glued-on PE foam

Interlayers

Interlayers according to your wishes

Can't find the right size in our store? Design your suitable interlayers in no time at all, tailored to your box size.
You also define the material and cutouts yourself.

Configure now

Interlayers according to your wishes
Keep the overview and label your parting inserts

Keep the overview and label your parting inserts

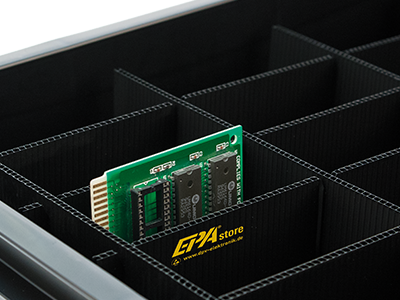

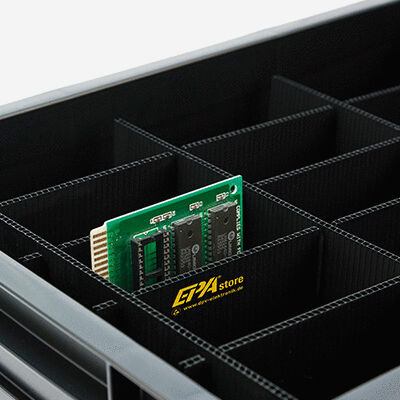

Emboss or print your parting inserts or interlayers with your own logo or desired text. Our practical online configurator helps you to quickly and easily create the embossing or printing on your desired product. With hot stamping, the printed image is transferred from a special foil to the material to be printed by heat and pressure during the printing process.

Customize now

Do you have any questions or need personalised advice?

Please feel free to contact us by phone or email using our contact form.

Contact

Everything summarized!

All information on our comprehensive range of storage solutions with EPAstore® can also be found clearly summarized in the current brochure. Available as an online leaflet catalog, as a download or request your free print copy (only in German).

The image displays a black surface with fine vertical lines. One corner is flattened, giving the picture an irregular shape. The texture appears slightly textured.
Interlayer PP type D, 254 x 154 x 3 mm ESD
Dimensions LxW [mm]: 254 x 154 / Thickness : 3 mm / Cut-out: Standard type D /
Interlayer PP type A, 254 x 154 x 3 mm ESD
Dimensions LxW [mm]: 254 x 154 / Thickness : 3 mm / Cut-out: Type A /
Interlayer PP 3.0 type D, 353 x 253 x 3 mm ESD
Dimensions LxW [mm]: 353 x 253 / Thickness : 3.0 mm / Cut-out: Standard type D /
Interlayer PP type A, 353 x 253 x 3 mm ESD
Dimensions LxW [mm]: 353 x 253 / Thickness : 3.0 mm / Cut-out: Type A /
Interlayer PP type C, 353 x 253 x 3 mm ESD
Dimensions LxW [mm]: 353 x 253 / Thickness : 3.0 mm / Cut-out: Type C /
Interlayer PP with 3 mm PE foam ESD
Dimensions LxW [mm]: 353 x 253 / Thickness : 6.0 mm / Cut-out: Standard type D /
Interlayer PP type D, 340 x 260 x 3 mm (for KLT)
Dimensions LxW [mm]: 340 x 260 / Thickness : 3.0 mm / Cut-out: Standard type D /
Interlayer PP type D, 553 x 353 x 3 mm
Dimensions LxW [mm]: 553 x 353 / Thickness : 3.0 mm / Cut-out: Standard type D /
Interlayer PP type A, 553 x 353 x 3 mm
Dimensions LxW [mm]: 553 x 353 / Thickness : 3.0 mm / Cut-out: Type A /
Interlayer PP type C, 553 x 353 x 3 mm
Dimensions LxW [mm]: 553 x 353 / Thickness : 3.0 mm / Cut-out: Type C /
Interlayer PP with 3 mm PE foam
Dimensions LxW [mm]: 550 x 350 / Thickness : 6.0 mm / Cut-out: Standard type D /
Interlayer PP with 6 mm PE foam
Dimensions LxW [mm]: 550 x 350 / Thickness : 9.0 mm / Cut-out: Standard type D /
Interlayer PP type D, 540 x 360 x 3 mm (for KLT)
Dimensions LxW [mm]: 540 x 360 / Thickness : 3.0 mm / Cut-out: Standard type D /
Interlayer PP type D, 753 x 553 x 3 mm
Dimensions LxW [mm]: 753 x 553 / Thickness : 3.0 mm / Cut-out: Standard type D /
Interlayer PP type A, 753 x 553 x 3 mm
Dimensions LxW [mm]: 753 x 553 / Thickness : 3.0 mm / Cut-out: Type A /
Interlayer PP cutting thickness 3.0 mm
Dimensions LxW [mm]: - x - / Thickness : 3.0 mm /

16 Products
Product No.: 050.230
from 0,81 EUR
excl. 19% tax

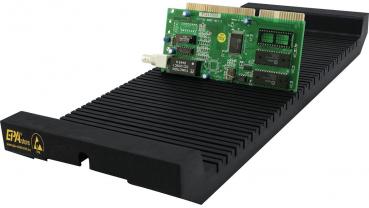

The image shows a black, elongated plastic frame with grooves, on which there is a green, rectangular circuit board with several electrical components and connections.
PCB holder "Tablet Type 759"
Dimensions: 160 x 437 mm, 25 rows / spacing 16 mm
max. PCB thickness 3.0 mm
electrostatically dissipative (DIN EN 61340-5-1)

Product No.: 052.759
28,00 EUR
excl. 19% tax
The image displays an elongated, black cooler with grooves and a green computer component resting on top. The card features black and silver components and shiny connections.
PCB holder "Tablet type Deep + Shallow"
Dimensions: 172 x 484 mm, 25 + 24 rows /
spacing 16 mm
Max. PCB thickness 3.0mm (25 rows), 2.0mm
(24 rows)
electrostatically dissipative (DIN EN 61340-5-1)

Product No.: 052.745
26,70 EUR
excl. 19% tax
The image shows a gray box with three rollers. One roller is black, one is white, and one is blue. The rollers vary in size and are arranged with the blue one on top.
Partition wall for reel rack type 300
Length : 250 mm / Width : 250 mm / Height : 2 mm /
Partition wall for reel rack type 300 ESD
Length : 380 mm / Width : 190 mm / Height : 2 mm /
Partition wall for reel rack type 300 ESD
Length : 380 mm / Width : 380 mm / Height : 2 mm /
SMD reel rack type 300
Length : 210 mm / Width : 200 mm / Height : 110 mm / Reel diameter: 180 mm / Reels: 13 /
SMD reel rack type 300
Length : 410 mm / Width : 200 mm / Height : 110 mm / Reel diameter: 180 mm / Reels: 33 /
SMD reel rack type 300
Length : 850 mm / Width : 200 mm / Height : 110 mm / Reel diameter: 180 mm / Reels: 76 /
Partition wall for reel rack type
Length : 180 mm / Width : 180 mm / Height : 2 mm /
SMD reel rack type 300
Length : 210 mm / Width : 270 mm / Height : 175 mm / Reel diameter: 250 mm / Reels: 10 /
SMD reel rack type 300
Length : 410 mm / Width : 270 mm / Height : 175 mm / Reel diameter: 250 mm / Reels: 24 /
SMD reel rack type 300
Length : 850 mm / Width : 270 mm / Height : 175 mm / Reel diameter: 250 mm / Reels: 54 /
SMD reel rack type 300
Length : 210 mm / Width : 372 mm / Height : 190 mm / Reel diameter: 330 mm / Reels: 10 /
SMD reel rack type 300
Length : 415 mm / Width : 372 mm / Height : 190 mm / Reel diameter: 330 mm / Reels: 24 /
SMD reel rack type 300
Length : 850 mm / Width : 372 mm / Height : 190 mm / Reel diameter: 330 mm / Reels: 54 /
SMD reel rack type 300 ESD
Length : 415 mm / Width : 400 mm / Height : 230 mm / Reel diameter: 380 mm / Reels: 24 /
Partition wall for reel rack type 300
Length : 330 mm / Width : 165 mm / Height : 2 mm /
Partition wall for reel rack type 300 ESD
Length : 330 mm / Width : 330 mm / Height : 2 mm /

16 Products
Product No.: 039.300.180.210
from 1,60 EUR
excl. 19% tax
The image displays a black, rectangular area with three even notches on the upper edge. The dimensions are provided on the sides: 360 mm in width and 90 mm in height.
10 Products
Product No.: 050.240.080.105
from 0,80 EUR
excl. 19% tax
The image displays a black, rectangular area with precise measurements. At the top, there are two notches symmetrically placed. Overall dimensions: 253 mm width, 180 mm height.
10 Products
Product No.: 050.239.180.110
from 1,08 EUR
excl. 19% tax
PP Partition length 353 mm / height 120 mm / grid 10 mm ESD
Compartments: 25 / Grid spacing: 10 mm / Slots: 26 / External support: yes /
PP Partition length 353 mm / height 120 mm / grid 20 mm ESD
Compartments: 15 / Grid spacing: 20 mm / Slots: 14 / External support: no /
PP Partition length 353 mm / height 120 mm / grid 20 mm ESD with external supports
Compartments: 14 / Grid spacing: 20 mm / Slots: 15 / External support: yes /
PP Partition length 353 mm / height 120 mm / grid 32 mm ESD
Compartments: 10 / Grid spacing: 32 mm / Slots: 9 / External support: no /
PP Partition length 353 mm / height 120 mm / grid 41 mm ESD
Compartments: 8 / Grid spacing: 41 mm / Slots: 7 / External support: no /
PP Partition length 353 mm / height 120 mm / grid 55 mm ESD
Compartments: 6 / Grid spacing: 55 mm / Slots: 5 / External support: no /
PP Partition length 353 mm / height 120 mm / grid 67 mm ESD
Compartments: 5 / Grid spacing: 67 mm / Slots: 4 / External support: no /
PP Partition length 353 mm / height 120 mm / grid 78 mm ESD
Compartments: 4 / Grid spacing: 78 mm / Slots: 5 / External support: yes /
PP Partition length 353 mm / height 120 mm / grid 105 mm ESD
Compartments: 3 / Grid spacing: 105 mm / Slots: 4 / External support: yes /
PP Partition length 353 mm / height 120 mm / grid 159 mm ESD
Compartments: 2 / Grid spacing: 159 mm / Slots: 3 / External support: yes /
PP Partition length 353 mm / height 120 mm / grid 317 mm ESD
Compartments: 1 / Grid spacing: 317 mm / Slots: 2 / External support: yes /

11 Products
Product No.: 050.240.120.105
from 0,95 EUR
excl. 19% tax
The image displays a black, rectangular shape with a width of 253 mm and a height of 120 mm. At the top, there are two notches, each spaced 110 mm apart.
10 Products
Product No.: 050.239.120.110
from 0,81 EUR
excl. 19% tax
1 to 16 (from a total of 35)
