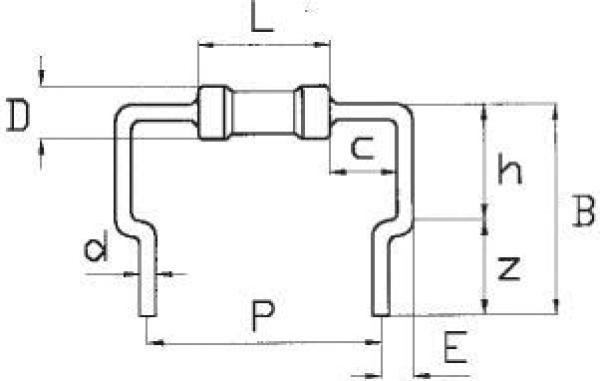

The image displays a technical drawing of a U-shaped component with various dimensions. Lines and measurements for D, L, c, h, B, E, d, P, and z are indicated.
Standard tool, reducing pitch for cutting and bending machine TP 6/PR-F
(Product No.: 415.191.420900)
The image displays a technical drawing of a U-shaped component with various dimensions. Lines and measurements for D, L, c, h, B, E, d, P, and z are indicated.
Notice

Standard tool, reducing pitch for cutting and bending machine TP 6/PR-F

Standard tool, reducing pitch for cutting and bending machine TP 6/PR-F

dpvlink:
6033
Further product information

available available
1.204,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Standard tool, reducing pitch for cutting and bending machine TP 6/PR-F

Olamef's standard tool for reducing pitch is specifically designed for the cutting and bending machine TP 6/PR-F. It allows for precise adjustment of the tape hole pitch from 7.62 mm to 58.42 mm and is ideal for processing components with a maximum body length of 50 mm. The compatible wire gauge ranges from 0.5 mm to 0.9 mm, while the component diameter ranges from 0.6 mm to 8 mm.
The dimensions for the distance between the component body and the bend are 1.2 mm, and the distance from the bend to the wire end varies between 7 mm and 11 mm. Additionally, the distance from the bend to the solder point (SP) is adjustable between 5 mm and 9 mm. These technical specifications make the tool essential equipment for high-precision operations in electronics manufacturing, where flexibility and accuracy are required.
Body diameter D
Body diameter D
0.5 - 8 mm
Component body length L
Component body length L
50 mm
Lead diameter d
Lead diameter d
0.5 - 0.9 mm
Measure bending / lead end B
Measure bending / lead end B
7 - 11 mm
Measure bending/PCB h
Measure bending/PCB h
5 - 9 mm
Measure component's body / bending c
Measure component's body / bending c
1.2 mm
Tape pitch pattern P
Tape pitch pattern P
7.62 - 58.42 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Standard tool, reducing pitch

Article image
Article description
Body diameter D
Component body length L
Lead diameter d
Measure bending / lead end B
Measure bending/PCB h
Measure component's body / bending c
Tape pitch pattern P
Price
Compare
415.191.420900 - Standard tool, reducing pitch for cutting and bending machine TP 6/PR-F
415.191.420900
Standard tool, reducing pitch for cutting and bending machine TP 6/PR-F
0.5 - 8 mm
50 mm
0.5 - 0.9 mm
7 - 11 mm
5 - 9 mm
1.2 mm
7.62 - 58.42 mm
1.204,00 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a mechanical machine with visible gears and rollers. A hand crank is located on the right side, and a long, thin strip of paper extends from the machine.
Cutting and bending machine TP6/PR-F/1...
TP 6, PR-F, 1 cutting and bending machine
for axial components wire thickness 0.5 - 0.9 mm
Basic machine ++ without processing tools ++
(Model 43.OL01 art. no....)
dpvlink
5170

4.701,00 EUR
