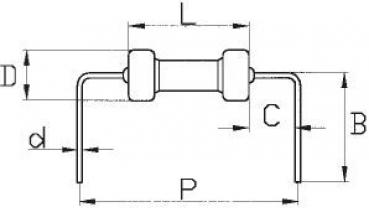

The image displays a technical drawing of a component with multiple dimensions (L, D, C, B, P, d). It features a central elevation with two lateral attachment arms.
Preview: The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
Preview: The image displays a technical drawing of a component with multiple dimensions (L, D, C, B, P, d). It features a central elevation with two lateral attachment arms.
Cutting and bending machine TP 6 / 4 - reinforced bending wheels
(Product No.: 415.103)
The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
The image displays a technical drawing of a component with multiple dimensions (L, D, C, B, P, d). It features a central elevation with two lateral attachment arms.
Mobile Preview: The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
Mobile Preview: The image displays a technical drawing of a component with multiple dimensions (L, D, C, B, P, d). It features a central elevation with two lateral attachment arms.
Notice

Cutting and bending machine TP 6 / 4 - reinforced bending wheels

Cutting and bending machine TP 6 / 4 - reinforced bending wheels

dpvlink:
5160
Further product information

Delivery time! Delivery time!
1.652,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Cutting and bending machine TP 6 / 4 - reinforced bending wheels

The cutting and bending machine TP 6/4 by Olamef is specifically designed for cutting and bending taped, axial components. This machine is characterized by its robust construction, which ensures high reliability in operation. It is capable of efficiently processing components with a lead wire diameter from 0.6 mm to 1.4 mm.
The machine features reinforced bending wheels and a simplified bending radius adjustment, significantly reducing setup times. The dimensions of the machine are 230 mm in length, 180 mm in width, and 210 mm in height, with a weight of 5 kg.
Additionally, the TP 6/4 allows for quick and easy adjustment of various dimensions, processing up to 50,000 components per hour. The technical specifications include a tape hole pitch from 10.16 to 60 mm, a component body distance to the bend of 2.4 mm, and a distance from the bend to the wire end between 5 and 13 mm. The diameter of the component body can vary between 0.6 and 16 mm.
Body diameter D
Body diameter D
0.6 - 16 mm
Component body length L
Component body length L
50 mm
Lead diameter d
Lead diameter d
0.6 - 1.4 mm
Measure bending / lead end B
Measure bending / lead end B
5 - 13 mm
Measure component's body / bending c
Measure component's body / bending c
2.4 mm
Tape pitch pattern P
Tape pitch pattern P
10.16 - 60 mm
Components per hour
Components per hour
50,000
Height
Height
210 mm
Length
Length
230 mm
Width
Width
180 mm
Weight
Weight
5.0 kg
Show accessories
Common

Cutting and bending machine for axial components,
version type 97 with simplified bending wheel adjustment



Cutting and bending machine TP 6.97 standard



With the cutting and bending machine TP 6 taped axial components can be cut and bent. The robust construction of the machine ensures a high level of reliability.

Components with leads up to a diameter of 1.3 mm can be processed. The setting of various dimensions is quick and easy.


Version TP 6 /....97

The TP 6 /....97 is in addition equipped with a simplified bending wheel adjustment reducing considerably the set-up times.

Technical data
Performance:approx. 50,000 components per hour
Dimensions:230 x 180 x 210 mm
Weight:5 kg


Accessories

Accessories

The image shows a machine with metallic rollers processing a black roll with fine, parallel wires. Yellow bands hold the structure together.
Feeder / component body type 200240
Feeding / component body type 200240
for taped components
suitable for TP 6.EC / TP 6 / TP 6.97, TP6/PR-B,
TP6/PR-B/97, TP6/S
dpvlink
13342

370,00 EUR
The image shows a blue, cylindrical machine with a handle for turning. On the side, there are several small rollers and an adjustable pressure mechanism. It is presumably used for processing paper strips.
BR6 reel holder
BR6 reel holder
dpvlink
5524

137,40 EUR
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 10 feeding unit / loose components
CS 10 - feeding unit for loose components
for TP 6 + TP6/S + TP6/PR-B
(Model 51.0100 part number...)
dpvlink
5163

1.349,00 EUR
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 20 feeding unit / loose components
CS 20 - feeding unit for loose components
for TP 6/V-PR
(Model 51.0200 part number...)
dpvlink
5163

1.453,00 EUR
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 30 feeding unit / loose components
CS 30 - feeding unit for loose components
for TP/6V
(Model 51.0300 part number...)
dpvlink
5163

1.328,00 EUR
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 40 feeding unit, loose components
CS 40 - feeding unit for loose components
for TP 6/PR F
(Model 51.0400 part number...)
dpvlink
5163

1.453,00 EUR
The image shows a machine. On the right side, there is a black box with a red emergency stop button and various control knobs. On the left, metal rollers are visible.
M adjustable motor drive
MOT-98 adjustable motor 220V
for TP 6 + S + R + R CP + V + PR B
(Model 7915030 art. no....)
dpvlink
5523

1.848,00 EUR
The image shows a machine. On the right side, there is a black box with a red emergency stop button and various control knobs. On the left, metal rollers are visible.
M/1 adjustable motor drive
MOT-98/A adjustable motor 220V
for TP 6 / V - PR + TP 6 / PR - F
(Model 7915032 art. no....)
dpvlink
5523

1.899,00 EUR
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/1 waste tape ejector
RA waste tape ejector TNS/11
for TP 6 + TP 6 / S + TP 6 / R + TP/6V + TP6/PR-B
(Model 21.0011)
dpvlink
5525

398,40 EUR
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/13 waste tape ejector
RA waste tape ejector TNS/13
for TP 6 / V PR
(Model 21.0013)
dpvlink
5525

398,40 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 515
Complete Catalog 2023 - 2024

Product Family

TP 6/4 • TP 6/4.97 reinforced bending wheels

Article image
Article description
Body diameter D
Component body length L
Lead diameter d
Measure bending / lead end B
Measure component's body / bending c
Tape pitch pattern P
Components per hour
Height
Length
Width
Weight
Price
Compare
415.103 - Cutting and bending machine TP 6 / 4 - reinforced bending wheels
415.103
Cutting and bending machine TP 6 / 4 - reinforced bending wheels
0.6 - 16 mm
50 mm
0.6 - 1.4 mm
5 - 13 mm
2.4 mm
10.16 - 60 mm
50,000
210 mm
230 mm
180 mm
5.0 kg
1.652,00 EUR
