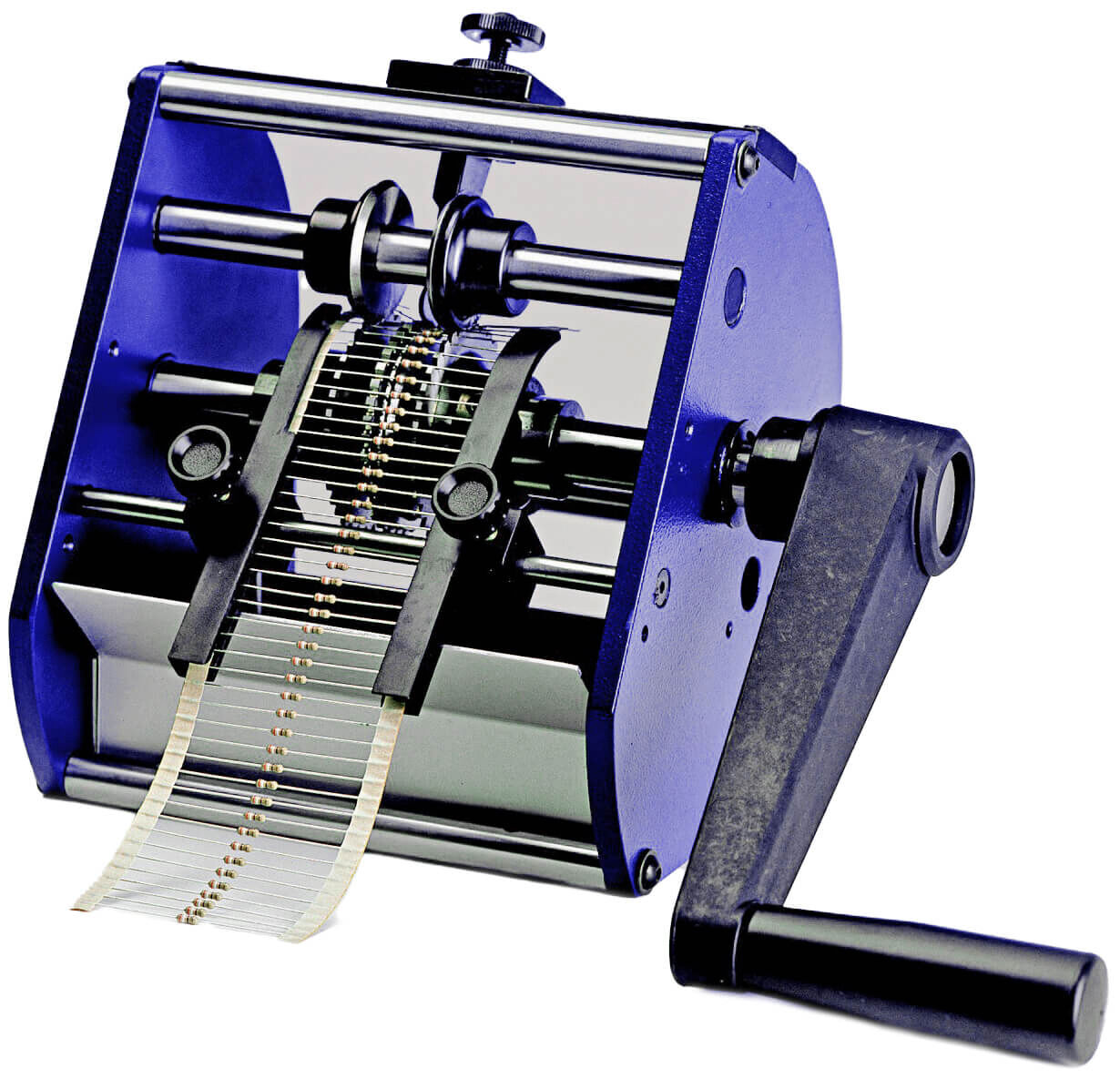

The image shows a mechanical device with a hand crank. Two rollers grasp a long, narrow strip that slides through the device. The colors are predominantly blue and black.

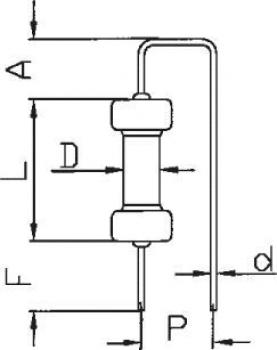

The image shows a technical drawing of a component, likely a resistor. Various dimensions are labeled: A, D, F, L, P, and d. The component has two bendable wires at the ends.
Preview: The image shows a mechanical device with a hand crank. Two rollers grasp a long, narrow strip that slides through the device. The colors are predominantly blue and black.
Preview: The image shows a technical drawing of a component, likely a resistor. Various dimensions are labeled: A, D, F, L, P, and d. The component has two bendable wires at the ends.
Cutting and bending machine TP 6/V1.EC - standard standing assembly
(Product No.: 415.400.EC)
The image shows a mechanical device with a hand crank. Two rollers grasp a long, narrow strip that slides through the device. The colors are predominantly blue and black.
The image shows a technical drawing of a component, likely a resistor. Various dimensions are labeled: A, D, F, L, P, and d. The component has two bendable wires at the ends.
Mobile Preview: The image shows a mechanical device with a hand crank. Two rollers grasp a long, narrow strip that slides through the device. The colors are predominantly blue and black.
Mobile Preview: The image shows a technical drawing of a component, likely a resistor. Various dimensions are labeled: A, D, F, L, P, and d. The component has two bendable wires at the ends.
Notice / Inquire

Cutting and bending machine TP 6/V1.EC - standard standing assembly

dpvlink:
5117
Further product information

at short notice at short notice
1.123,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Cutting and bending machine TP 6/V1.EC - standard standing assembly

The cutting and bending machine TP 6/V1.EC from Olamef is specifically designed for processing taped axial components and allows for precise cutting and bending for vertical assembly. This robust machine processes components with connecting wires of up to 0.8 mm in diameter and is extremely reliable due to its design.
The machine has a width of 180 mm, a height of 210 mm, and a length of 230 mm. It can process up to 50,000 components per hour and weighs 5.0 kg. The minimum length of the component body is 15 mm, while the distance between the component body and the end of the wire can vary between 3 and 8 mm. The distance from the top of the component body to the bend ranges from 2 to 6 mm. The diameter of the component body can be between 0.5 and 3 mm, while the wire diameter varies between 0.5 and 0.8 mm.
For different grid dimensions, starting with a tape hole grid of 2.54 mm, various bending tools can be used, which can be finely adjusted using a knurled screw. This makes the TP 6/V1.EC a flexible solution for various requirements in electronic manufacturing.
Body diameter D
Body diameter D
0.5 - 3 mm
Component body length L
Component body length L
15 mm
Lead diameter d
Lead diameter d
0.5 - 0.8 mm
Measure component's body/lead end F
Measure component's body/lead end F
3 - 8 mm
Measure top component's body/bending A
Measure top component's body/bending A
2 - 6 mm
Tape pitch pattern P
Tape pitch pattern P
2.54 mm
Components per hour
Components per hour
50,000
Height
Height
210 mm
Length
Length
230 mm
Width
Width
180 mm
Weight
Weight
5.0 kg
Show accessories
Accessories

Accessories

The image shows a machine with metallic rollers processing a black roll with fine, parallel wires. Yellow bands hold the structure together.
Feeder / component body type 200240
Feeding / component body type 200240
for taped components
suitable for TP 6.EC / TP 6 / TP 6.97, TP6/PR-B,
TP6/PR-B/97, TP6/S
dpvlink
13342

370,00 EUR
Show product
The image displays a technical drawing of a component with various dimensions. There is a cylindrical center with two ends that have different lengths (A to F).
Additional bending tool P = 3.8 mm for cutting...
additional bending tool RM P = 3.8 mm
A/H = 2.5 mm, wire thickness 0.5 - 0.8 mm
for 6 / V1 + V21 + EC version
dpvlink
5207

121,90 EUR
Show product
The image displays a technical drawing of a component, likely a fuse. Various dimension lines (A, D, F, L, P, d) are marked, indicating the dimensions of the component.
Additional bending tool P = 5.08 mm for cutting...
additional bending tool RM P = 5.08 mm
A/H =3.0 mm, wire thickness 0.5 - 1.3 mm
for TP 6 / V1 + V21 + EC version
dpvlink
5207

121,90 EUR
Show product
The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
Holder for additional bending tool for cutting...
Holder for additional bending tool
for TP 6 / V1 + TP 6 / V2
(for easier conversion)
dpvlink
5207

107,75 EUR
Show product
The image shows a blue, cylindrical machine with a handle for turning. On the side, there are several small rollers and an adjustable pressure mechanism. It is presumably used for processing paper strips.
BR6 reel holder
BR6 reel holder
dpvlink
5524

137,40 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 10 feeding unit / loose components
CS 10 - feeding unit for loose components
for TP 6 + TP6/S + TP6/PR-B
(Model 51.0100 part number...)
dpvlink
5163

1.349,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 20 feeding unit / loose components
CS 20 - feeding unit for loose components
for TP 6/V-PR
(Model 51.0200 part number...)
dpvlink
5163

1.453,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 30 feeding unit / loose components
CS 30 - feeding unit for loose components
for TP/6V
(Model 51.0300 part number...)
dpvlink
5163

1.328,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 40 feeding unit, loose components
CS 40 - feeding unit for loose components
for TP 6/PR F
(Model 51.0400 part number...)
dpvlink
5163

1.453,00 EUR
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/1 waste tape ejector
RA waste tape ejector TNS/11
for TP 6 + TP 6 / S + TP 6 / R + TP/6V + TP6/PR-B
(Model 21.0011)
dpvlink
5525

398,40 EUR
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/13 waste tape ejector
RA waste tape ejector TNS/13
for TP 6 / V PR
(Model 21.0013)
dpvlink
5525

398,40 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 514
Complete Catalog 2023 - 2024

Product Family

TP 6 / V-EC cutting and bending machines

Cutting and bending machine for axial components, standing assembly

With the cutting and bending machine TP 6/V-EC taped axial components for standing mounting can be cut and bent. The robust construction of the machine ensures a high level of reliability. Components with leads up to a diameter of 0.8 mm can be processed. Different bending tools are used for different grid dimensions. The fine tuning of the grid dimensions is done via a knurled screw.

Technical data:

Performance:

approx. 50,000 components/hour

Dimensions:

230 x 180 x 210 mm

Weight:

5 kg

TP 6/V-EC - Standard P = 2.54 mm

  P L F D dA
 Min. mm 2.54 - 3 0.5 0.52
 Max. mm fixed 15 8 3 0.86
