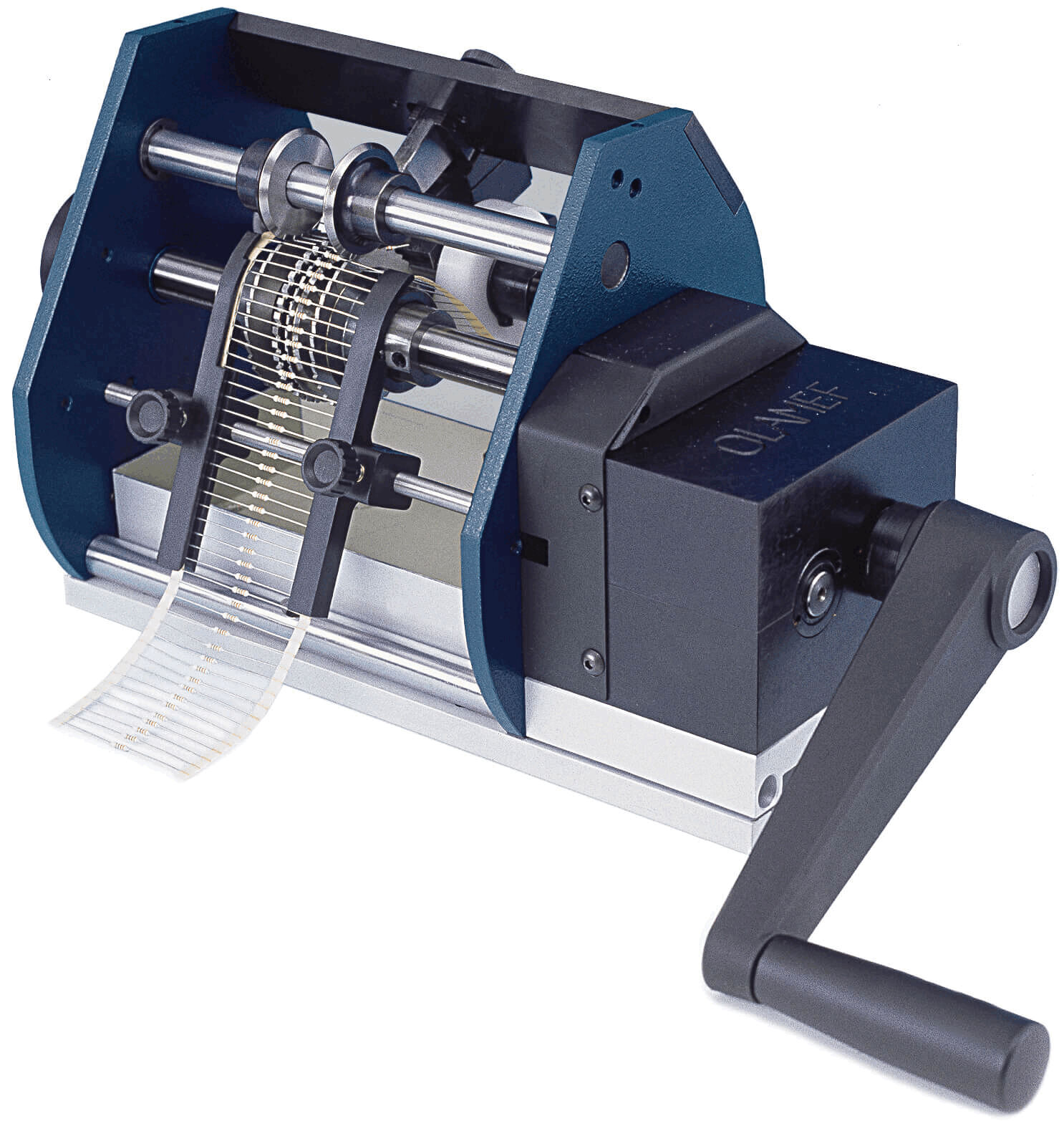

The image depicts a manual machine with a handle. It features two rollers and an area where paper strips are processed. The mechanism appears sturdy and functional.
The image shows a technical drawing of a component with various measurements. It consists of a cylindrical part and a connection to the ground, with clear lines and labels.
Preview: The image depicts a manual machine with a handle. It features two rollers and an area where paper strips are processed. The mechanism appears sturdy and functional.
Preview: The image shows a technical drawing of a component with various measurements. It consists of a cylindrical part and a connection to the ground, with clear lines and labels.
Cutting and bending machine TP 6 / V-PR (P = 5.08 mm)
(Product No.: 415.505)
The image depicts a manual machine with a handle. It features two rollers and an area where paper strips are processed. The mechanism appears sturdy and functional.
The image shows a technical drawing of a component with various measurements. It consists of a cylindrical part and a connection to the ground, with clear lines and labels.
Mobile Preview: The image depicts a manual machine with a handle. It features two rollers and an area where paper strips are processed. The mechanism appears sturdy and functional.
Mobile Preview: The image shows a technical drawing of a component with various measurements. It consists of a cylindrical part and a connection to the ground, with clear lines and labels.
Notice / Inquire

Cutting and bending machine TP 6 / V-PR (P = 5.08 mm)

dpvlink:
5274
Tape pitch pattern P :
5.08 mm
Lead diameter d:
0.5 - 0.8 mm
Body diameter D:
0.5 - 8 mm
Further product information

available available
5.051,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Cutting and bending machine TP 6 / V-PR (P = 5.08 mm)

The cutting and bending machine TP 6 / V-PR from Olamef is specifically designed for processing taped axial components. With an integrated bead device, connecting wires with a diameter of 0.5 to 0.8 mm can be efficiently cut and bent, with a bead added for secure mounting. The machine is designed for wire sizes in the specified range and a tape hole pitch of 5.08 mm.
The technical specifications include a width of 180 mm, a height of 220 mm, and a length of 490 mm. The machine can process components with a body length of 3 to 15 mm and a diameter of 0.5 to 8 mm. The distance between the component body and the wire end varies between 4.3 and 10 mm, while the distance from the top of the component body to the bend is between 3 and 5 mm.
The system is capable of processing up to 7,000 components per hour and weighs 11 kg. An adjustable motor drive, available as an accessory, is recommended for optimizing performance and adapting to specific requirements.
Tape pitch pattern P
Tape pitch pattern P
5.08 mm
Lead diameter d
Lead diameter d
0.5 - 0.8 mm
Body diameter D
Body diameter D
0.5 - 8 mm
Component body length L
Component body length L
3 - 15 mm
Kink width b
Kink width b
1 mm
Lead protrusion under PCB e
Lead protrusion under PCB e
1.2 - 4 mm
Measure component's body/lead end F
Measure component's body/lead end F
4.3 - 10 mm
Measure top component's body/bending A
Measure top component's body/bending A
3 - 5 mm
Components per hour
Components per hour
7,000
Height
Height
220 mm
Length
Length
490 mm
Width
Width
180 mm
Weight
Weight
11 kg
Show accessories
Accessories

Accessories

The image shows a machine with metallic rollers processing a black roll with fine, parallel wires. Yellow bands hold the structure together.
Feeder / component body type 200240
Feeding / component body type 200240
for taped components
suitable for TP 6.EC / TP 6 / TP 6.97, TP6/PR-B,
TP6/PR-B/97, TP6/S
dpvlink
13342

370,00 EUR
Show product
The image shows a blue, cylindrical machine with a handle for turning. On the side, there are several small rollers and an adjustable pressure mechanism. It is presumably used for processing paper strips.
BR6 reel holder
BR6 reel holder
dpvlink
5524

137,40 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 10 feeding unit / loose components
CS 10 - feeding unit for loose components
for TP 6 + TP6/S + TP6/PR-B
(Model 51.0100 part number...)
dpvlink
5163

1.349,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 20 feeding unit / loose components
CS 20 - feeding unit for loose components
for TP 6/V-PR
(Model 51.0200 part number...)
dpvlink
5163

1.453,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 30 feeding unit / loose components
CS 30 - feeding unit for loose components
for TP/6V
(Model 51.0300 part number...)
dpvlink
5163

1.328,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 40 feeding unit, loose components
CS 40 - feeding unit for loose components
for TP 6/PR F
(Model 51.0400 part number...)
dpvlink
5163

1.453,00 EUR
Show product
The image shows a machine. On the right side, there is a black box with a red emergency stop button and various control knobs. On the left, metal rollers are visible.
M adjustable motor drive
MOT-98 adjustable motor 220V
for TP 6 + S + R + R CP + V + PR B
(Model 7915030 art. no....)
dpvlink
5523

1.848,00 EUR
Show product
The image shows a machine. On the right side, there is a black box with a red emergency stop button and various control knobs. On the left, metal rollers are visible.
M/1 adjustable motor drive
MOT-98/A adjustable motor 220V
for TP 6 / V - PR + TP 6 / PR - F
(Model 7915032 art. no....)
dpvlink
5523

1.899,00 EUR
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/1 waste tape ejector
RA waste tape ejector TNS/11
for TP 6 + TP 6 / S + TP 6 / R + TP/6V + TP6/PR-B
(Model 21.0011)
dpvlink
5525

398,40 EUR
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/13 waste tape ejector
RA waste tape ejector TNS/13
for TP 6 / V PR
(Model 21.0013)
dpvlink
5525

398,40 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

TP 6 / V-PR

Cutting and bending machine for axial components, with crimping device, standing assembly

With the cutting and bending machine TP 6 / V PR taped axial components for the standing mounting can be cut and bent. The crimping device makes a crimp (snap in) on the leads. An adjustable motor drive is recommended and available as an accessory. Components with leads up to a diameter of 0.8 mm can be processed.

The machines differ in the pitch pattern (P = 2.54 mm or 5.08 mm)

TP 6 / V-PR   [P = 2.54 mm]

  P L F C e b d DA
 Min. mm 2.54 3 4.3 1.5 1.2 1 0.5 0.52.8
 Max. mm fixed 15 10 5 4 1 0.8 45

TP 6 / V-PR   [P = 5.08 mm]

  P L F C e b d DA
 Min. mm 5.08 3 4.3 1.5 1.2 1 0.5 0.53
 Max. mm fixed 15 10 5 4 1 0.8 85


Article image
Article description
Tape pitch pattern P
Lead diameter d
Body diameter D
Price
Compare
415.500 - Cutting and bending machine TP 6 / V-PR (P = 2.54 mm) standing assembly
415.500
Cutting and bending machine TP 6 / V-PR (P = 2.54 mm) standing assembly
2.54 mm
0.5 - 0.8 mm
0.5 - 4 mm
5.051,00 EUR
415.505 - Cutting and bending machine TP 6 / V-PR (P = 5.08 mm)
415.505
Cutting and bending machine TP 6 / V-PR (P = 5.08 mm)
5.08 mm
0.5 - 0.8 mm
0.5 - 8 mm
5.051,00 EUR
