Radial components

Radial components are electronic components in which the connections or pins are arranged laterally around the body of the component. The connections are usually arranged in a circle, giving the component a round or cylindrical shape. Radial components are used in particular in the assembly of printed circuit boards.

This contrasts with axial components.

Here you will find suitable cutting machines for processing radially arranged components.

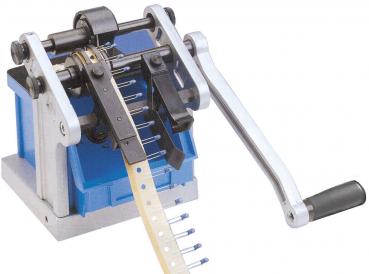

The image shows a manual machine with a long lever and a blue box. The machine has various teeth and a roller for processing material.
VARIOCUT
Cutting device VARIOCUT, tape pitch 12.7 mm
Pin wheel for tape pitch 15 mm for VARIOCUT

2 Products
Product No.: 405.500
from 86,40 EUR
excl. 19% tax
to the product family

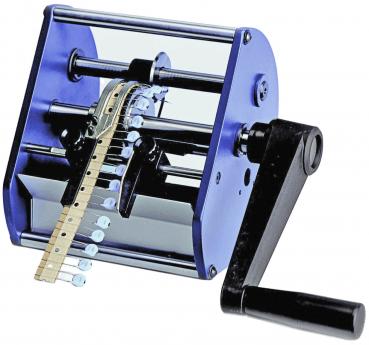

The image shows a blue, cylindrical machine with a crank. It has rollers inside and an elongated, perforated strip that is fed through the machine.
TP 6 / R
Cutting machine TP 6 / R P = 12.7 mm
Tape pitch pattern P : 12.7 mm / Version: standard / Lead diameter d: 0.4 - 1 mm / Body diameter D: 1 - 14 mm / Component body length L: 2 - 10 mm
Cutting machine TP 6 / R P = 15 mm
Tape pitch pattern P : 15 mm / Version: standard / Lead diameter d: 0.4 - 1 mm / Body diameter D: 1 - 14 mm / Component body length L: 2 - 10 mm

2 Products
Product No.: 415.600
1.505,00 EUR
excl. 19% tax
to the product family

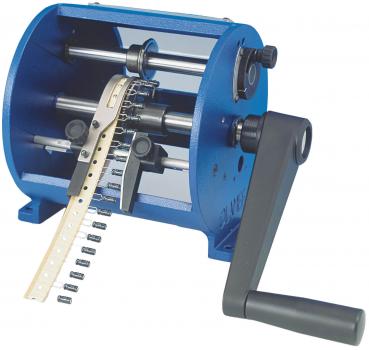

The image shows a manual machine with a large, rectangular casing and a crank. At the front, a flexible band runs through the machine, which has rotating mechanisms in the center.
TP 6 / R-EC cutting machines
Cutting machine TP 6/R-EC standard P = 12.7 mm
Tape pitch pattern P : 12.7 mm / Version: standard / Lead diameter d: 0.4 - 1 mm / Body diameter D: 1 - 14 mm / Component body length L: 2 - 10 mm
Cutting machine TP 6/R-EC, P = 15 mm
Tape pitch pattern P : 15 mm / Lead diameter d: 0.4 - 1 mm / Body diameter D: 1 - 14 mm / Component body length L: 2 - 10 mm

2 Products
Product No.: 415.600.EC
851,00 EUR
excl. 19% tax
to the product family
The image shows a machine with a blue casing. A movable arm with a black button and a chain leads to a large wheel. To the right, there is a red emergency stop button.

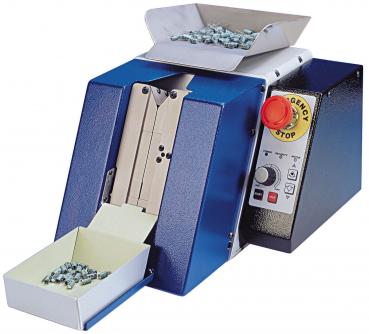

Preview: The image shows a blue machine with two funnels on top that dispenses small parts. On the side, there is an emergency stop switch and a control panel with buttons. The machine stands stable on a surface.
Preview: The image shows a machine with a blue casing. A movable arm with a black button and a chain leads to a large wheel. To the right, there is a red emergency stop button.
TP / TC 4
TP / TC 4 cutting machine
BR 3/12.7 tape guide for cutting machine TC 4
BR 3/15 tape guide for cutting machine TC 4

3 Products
Product No.: 415.911
from 461,00 EUR
excl. 19% tax
to the product family
1 to 4 (from a total of 4)
