ESD PCB holders / magazines

ESD PCB holders / magazines

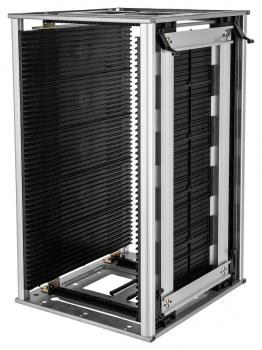

Quickfill magazine PS-4060
Quickfill magazine type PS-4060
Dimensions: 320 x 355 x 563 mm outside (WxDxH)
Width adjustment with quick-clamping adjustment
PCB width 50-250 mm
slot width 5 mm, slot depth 3.5 mm, slot pitch 10 mm
temperature resistance up to 60 °C
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
15102

Product No.: 152.4060
90,40 EUR

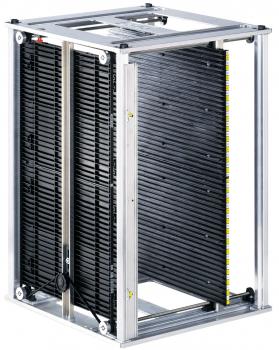

PCB magazine 602.1 PS, partially assembled
PCB width: 40 - 250 mm / PCB length: 387 mm / Type: partially assembled /
602.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 400 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
max. PCB length C = 387 mm
+++ 602.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5908

Product No.: 8917602
235,00 EUR
PCB magazine 716.2 PC, partially assembled
PCB width: 10 - 390 mm / PCB length: 522 mm / Type: partially assembled /
716.2PC PCB magazine partially assembled
with transport lock
Dimensions: 535 x 460 x 563 mm outside (LxWxH)
PCB width D = 10-390 mm, slot depth 3 mm
max. PCB length C = 522 mm
weight: 9.1 kg
+++ version 716.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916716
550,00 EUR
Partition 180, with holes for groove lock
Partition 180, electrically conductive
dpvlink
4288

Product No.: 8910060
26,00 EUR
PCB magazine 704.2 PC, partially assembled
PCB width: 10 - 330 mm / PCB length: 447 mm / Type: partially assembled /
704.2PC PCB magazine partially assembled
with transport lock
Dimensions: 460 x 400 x 563 mm outside (LxWxH)
PCB width D = 10-330 mm, slot depth 3 mm
max. PCB length C = 447 mm
weight: 7.8 kg
+++ version 704.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916704
530,00 EUR
PCB magazine 601.1 PS, partially assembled
PCB width: 40 - 250 mm / PCB length: 342 mm / Type: partially assembled /
601.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 355 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
Continuous use temperature max. 50°C
+++ 601.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5908

Product No.: 8917601
220,00 EUR
PCB magazine 701.1 PS, partially assembled
PCB width: 40 - 250 mm / PCB length: 342 mm / Type: partially assembled /
701.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 355 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
max. PCB length C = 342 mm
+++ 701.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5912

Product No.: 8917701
315,00 EUR
PCB magazine 802.1 PS
PCB width: 40 - 250 mm / PCB length: 387 mm /
802.1 PS PCB magazine partially assembled, TS
dimensions: 400 x 320 x 563 mm outside (LxWxH)
PCB width D = 10-250 mm, groove depth 3 mm
maximum PCB length C = 387 mm
+++ 802.1 PS with automatic width adjustment and polystyrene side walls. Ambient temperature max. 50°C+++
dpvlink
22506

Product No.: 8919802
365,00 EUR
PCB magazine 703.2 PC, partially assembled
PCB width: 40 - 310 mm / PCB length: 387 mm / Type: partially assembled /
703.2PC PCB magazine partially assembled
with transport lock
Dimensions: 400 x 380 x 563 mm outside (LxWxH)
PCB width D = 40-310 mm, slot depth 3 mm
max. PCB length C = 387 mm
weight: 6.4 kg
+++ version 703.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916703
415,00 EUR
Partition 100
Partition 100, electrically conductive
dpvlink
4285

Product No.: 8910050
19,90 EUR
Slotted wall 625 reinforced
Slotted wall reinforced
625 - 555 X 180 x 25 mm, with base stop 625
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4789

Product No.: 5518.025.992
30,90 EUR
PCB holder made of PE foam
PCB holder made of PE foam
Dimensions: 355 x 255 x 25 mm, 2 corners sloped
slot width 3 mm, slot depth 12 mm
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
14625

Product No.: 4550.25.0255.LP
8,65 EUR
Quickfill magazine ABS-3020
Quickfill magazine type ABS-3020
width adjustment with quick-clamping adjustment
Dimensions: 460 x 535 x 570 mm outer (WxDxH)
PCB width 50-390 mm
slot width 5 mm, slot depth 3.5 mm, slot pitch 10 mm
temperature resistance up to 110 °C
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
15102

Product No.: 152.3020
239,60 EUR
Plug-in board (knobbed)
ESD plug-in board (knobbed)
Dimensions: 352 x 252 x 15 mm, knobs 8 x 8 x 6 mm
max. PCB thickness 1.7 mm,
electrostatically volume conductive
dpvlink
3703

Product No.: 053210
11,34 EUR
Slotted wall 1-400 (pair)
Length [mm]: 355 mm / Width [mm]: 82 mm / Height [mm]: 13.5 mm / Version: with integrated base stop, unstrengthened /
Slotted wall pair 1-400, 355 x 82 x 13.5 mm
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4743

Product No.: 3510.000.992
28,05 EUR
Plug-in board (knobbed)
ESD plug-in board (knobbed)
Dimensions: 357 x 257 x 14 mm, knobs round
Diameter: 16 x 6 mm, max. PCB thickness 1.6 mm
electrostatically volume conductive
++ Item no. 2535.000.992 ++
dpvlink
3696

Product No.: 053211
7,20 EUR
1 to 16 (from a total of 179)
