Main page » Products » ESD Protection » ESD Table and shelf coverings » ESD Table coverings synthetic rubber » Table covering, rolls grey 1.00 x 10 m

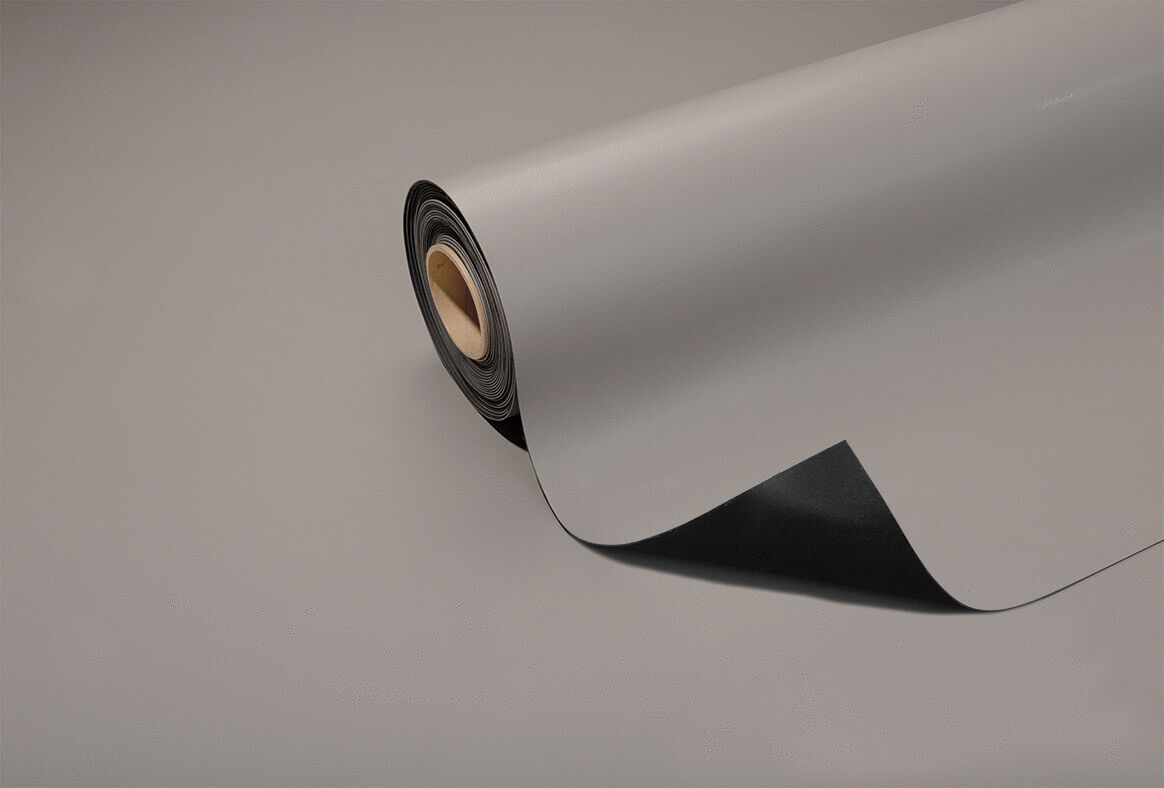

A gray carpet or mat partially lies on a surface. The roll is rolled up and displays a smooth, matte surface. The underside is dark.

Table covering, rolls grey 1.00 x 10 m

(Product No.: 1402.663.R.100)

A gray carpet or mat partially lies on a surface. The roll is rolled up and displays a smooth, matte surface. The underside is dark.

(Product No.: 1402.663.R.100)

Table covering, rolls grey 1.00 x 10 m

ArticleNo: 1402.663.R.100

Table covering, rolls grey 1.00 x 10 m

dpvlink:

2757

Color:

grey

Width :

1000 mm

Roll length [m]:

10 m

Thickness :

2 mm

Properties:

ESD-protective

Further product information

Table Covering Cutting
Configure now

Minimum order:

10 MTK

Availability: Delivery time!

Delivery time!

Delivery time!

49,85 EUR

excl. 19% tax

10 MTK

Notice / Inquire

Product Info

Table covering, rolls grey 1.00 x 10 m

The ESD table covering made of synthetic rubber in platinum gray is a high-quality solution for work areas that need to avoid electrostatic discharges. This product, measuring 1.00 x 10 m and with a material thickness of 2 mm, meets the ESD standard DIN EN 61340-5-1 and offers effective protection for electronic components. The dissipative, wear-resistant top layer combined with a high-resistance bottom layer prevents corrosion on electronic contacts and is heat resistant up to 60°C.
The roll material is suitable for both loose laying and adhesive bonding, with fixation possible using double-sided tape or Quick-Lift fabric tape. The material is free from PVC, plasticizers, halogens, and heavy metals, making it particularly environmentally friendly. Moreover, the covering is characterized by its high wear resistance and permanent elasticity, is abrasion-resistant, dimensionally stable, and easy to clean. This product is also available in other colors such as beige, forest green, light blue, and royal blue.

Details

Color Color: grey
Width Width: 1000 mm
Roll length [m] Roll length [m]: 10 m
Thickness Thickness: 2 mm
Point-to-point resistance Rp-p Point-to-point resistance Rp-p: 10⁷ Ω
Material Material: synthetic rubber

ESD protective

Show accessories

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a blue mat with a gray pillow, a yellow warning sign, and a connecting cable. A microphone is integrated into the cable and connected.

Accessory set 1 for table coverings

- 1 x 2850.10020.EPA Warning sign PVC 100x50 mm
- 1 x 2050.750.3 Wrist strap DK 3
- 1 x 2101.752.3.10 Grounding cable DK 3/10
- 1 x 2200.101 Grounding module

20,60 EUR

The image shows a blue mat with a gray pillow, a yellow warning sign, and a connecting cable. A microphone is integrated into the cable and connected.

Accessory set 1 for table coverings (Switzerland)...

- 1 x Art. 2850.10050.EPA Sign PVC 100x50 mm
- 1 x Art. 2050.750.3 Wrist strap DK 3
- 1 x Art. 2101.752.3.10 Grounding cable DK 3/10
- 1 x Art. 2200.101.CH grounding module
- 1 x Art. 2850.10050.EPA Warning Sign PVC 100x50 mm - M2-4
- 1 x Art. 2050.750.3 Wrist Strap DK 3 - M3-45
- 1 x Art. 2101.752.3.10 Ground cable DK 3/10 - M3-36
- 1 x Art. 2200.101.CH Grounding Module - M3-47

21,60 EUR

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Complete Catalog 2023 - 2024

Table Covering Cutting

Product Family

Table covering, rolls

suitable for loose laying as well as for bonding
causes no corrosion on electronic contacts
resistant to solder and heat up to 60°C
dissipative, wear-resistant wear layer, high-impedance bottom layer
easy to clean
two-layer structure
highly wear-resistant rubber material, permanently elastic
abrasion-resistant
dimensional stability
environmentally compatible
free from PVC, plasticizers, halogens and heavy metals
Material thickness: 2 mm
available Colors: beige, grey, green, blue, royalblue

(Fixation with double-sided adhesive tape or Quick-Lift fabric tape possible)

In compliance with ESD standard DIN EN 61340-5-1

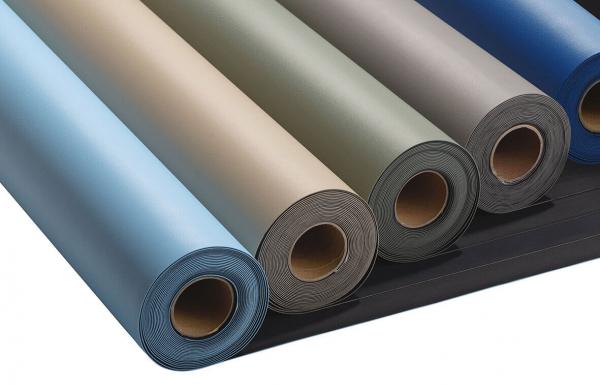

The image displays multiple spools in various colors, arranged from left to right: light blue, beige, olive green, gray, and dark blue. The spools are situated on a black background.

Article image

Article description

Color

Width

Roll length [m]

Thickness

Price

Compare

1402.662.R.061 - Table covering, rolls beige 0.61 x 10 m

1402.662.R.061
Table covering, rolls beige 0.61 x 10 m

beige

610 mm

10 m

2 mm

1402.662.R.100 - Table covering, rolls beige 1.00 x 10 m

1402.662.R.100
Table covering, rolls beige 1.00 x 10 m

beige

1000 mm

10 m

2 mm

1402.662.R - Table covering, rolls beige 1.22 x 10 m

1402.662.R
Table covering, rolls beige 1.22 x 10 m

beige

1220 mm

10 m

2 mm

1402.663.R.061 - Table covering, rolls grey 0.61 x 10 m

1402.663.R.061
Table covering, rolls grey 0.61 x 10 m

grey

610 mm

10 m

2 mm

1402.663.R.100 - Table covering, rolls grey 1.00 x 10 m

1402.663.R.100
Table covering, rolls grey 1.00 x 10 m

grey

1000 mm

10 m

2 mm

1402.663.R - Table covering, rolls grey 1.22 x 10 m

1402.663.R
Table covering, rolls grey 1.22 x 10 m

grey

1220 mm

10 m

2 mm

1402.664.R - Table covering, rolls green 1.22 x 10 m

1402.664.R
Table covering, rolls green 1.22 x 10 m

green

1220 mm

10 m

2 mm

1402.665.R.061 - Table covering, rolls light blue 0.61 x 10 m

1402.665.R.061
Table covering, rolls light blue 0.61 x 10 m

light blue

610 mm

10 m

2 mm

1402.665.R.100 - Table covering, rolls light blue 1.00 x 10 m

1402.665.R.100
Table covering, rolls light blue 1.00 x 10 m

light blue

1000 mm

10 m

2 mm

1402.665.R - Table covering, rolls light blue 1.22 x 10 m

1402.665.R
Table covering, rolls light blue 1.22 x 10 m

light blue

1220 mm

10 m

2 mm

1402.666.R.061 - Table covering, rolls royal blue 0.61 x 10 m

1402.666.R.061
Table covering, rolls royal blue 0.61 x 10 m

royal blue

610 mm

10 m

2 mm

1402.666.R.100 - Table covering, rolls royal blue 1.00 x 10 m

1402.666.R.100
Table covering, rolls royal blue 1.00 x 10 m

royal blue

1000 mm

10 m

2 mm

1402.66[..].Z - Table covering, cuttings

1402.66[..].Z
Table covering, cuttings

Cutting mm
