Ionizing bars

Ionizing bars are elongated ionizing systems for the targeted neutralization of electrostatic charges on surfaces or in the ambient air. They are used where direct earthing is not possible or not sufficiently effective - especially with non-conductive materials or moving processes.

The devices generate positive and negative ions using high-voltage electrodes, which actively compensate for charge imbalances on surfaces. Thanks to their design, they can be integrated into machines, conveyor systems or along production lines to save space.

Ionizing bars are typically used in electrostatically sensitive applications - for example in electronics production, packaging technology or plastics processing. Regular checking of the ionization performance and ion balance is required to ensure effective ESD control in accordance with IEC 61340-5-1.

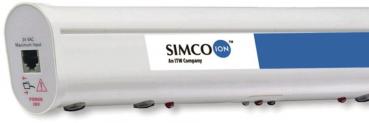

The image displays a simple, elongated device in white with a blue stripe and a logo ?SIMCO ION?. It features several small buttons and a connection on one side.
AeroBar 5225S Ionizing bar
AeroBar 5225S Ionizing bar 22"/558 mm
Width : 31 mm / Height : 53 mm / Length : 569 mm / Active length: 558 mm / Emitters: 5
AeroBar 5225S Ionizing bar 28"/711 mm
Width : 31 mm / Height : 53 mm / Length : 721 mm / Active length: 711 mm / Emitters: 7
AeroBar 5225S Ionizing bar 36"/907 mm
Width : 31 mm / Height : 53 mm / Length : 932 mm / Active length: 907 mm / Emitters: 8
AeroBar 5225S Ionizing bar 44"/1118 mm
Width : 31 mm / Height : 53 mm / Length : 1128 mm / Active length: 1118 mm / Emitters: 9
AeroBar 5225S Ionizing bar 64"/1626 mm
Width : 31 mm / Height : 53 mm / Length : 1636 mm / Active length: 1626 mm / Emitters: 13

5 Products
Product No.: 7500.AB.22
Price on request
to the product family
The image displays a long, rectangular device in light colors. It has multiple outputs on the bottom and controls on the front, as well as blue lettering with the name
AeroBar MP 5635 Ionizing bar
AeroBar MP 5635 Ionizing bar 350 mm
Width : 34 mm / Height : 78 mm / Length : 450 mm / Active length: 350 mm / Emitters: 8 / Emitter spacing: 50 mm
AeroBar MP 5635 Ionizing bar 500 mm
Width : 34 mm / Height : 78 mm / Length : 600 mm / Active length: 500 mm / Emitters: 11 / Emitter spacing: 50 mm
AeroBar MP 5635 Ionizing bar 900 mm
Width : 34 mm / Height : 78 mm / Length : 1000 mm / Active length: 900 mm / Emitters: 13 / Emitter spacing: 75 mm
AeroBar MP 5635 Ionizing bar 1050 mm
Width : 34 mm / Height : 78 mm / Length : 1150 mm / Active length: 1050 mm / Emitters: 15 / Emitter spacing: 75 mm
AeroBar MP 5635 Ionizing bar 1500 mm
Width : 34 mm / Height : 78 mm / Length : 1600 mm / Active length: 1500 mm / Emitters: 31 / Emitter spacing: 75 mm

5 Products
Product No.: 7500.AB-MP.18
Price on request
to the product family
Accessories for ionizing bars
AeroBar 5225S Remote control
AeroBar 5225S Power supply unit
AeroBar MP 5635 Replacement emitter
AeroBar MP 5635 power supply unit

4 Products
Product No.: 7500.AB-MP.E
Price on request
to the product family
1 to 3 (from a total of 3)
