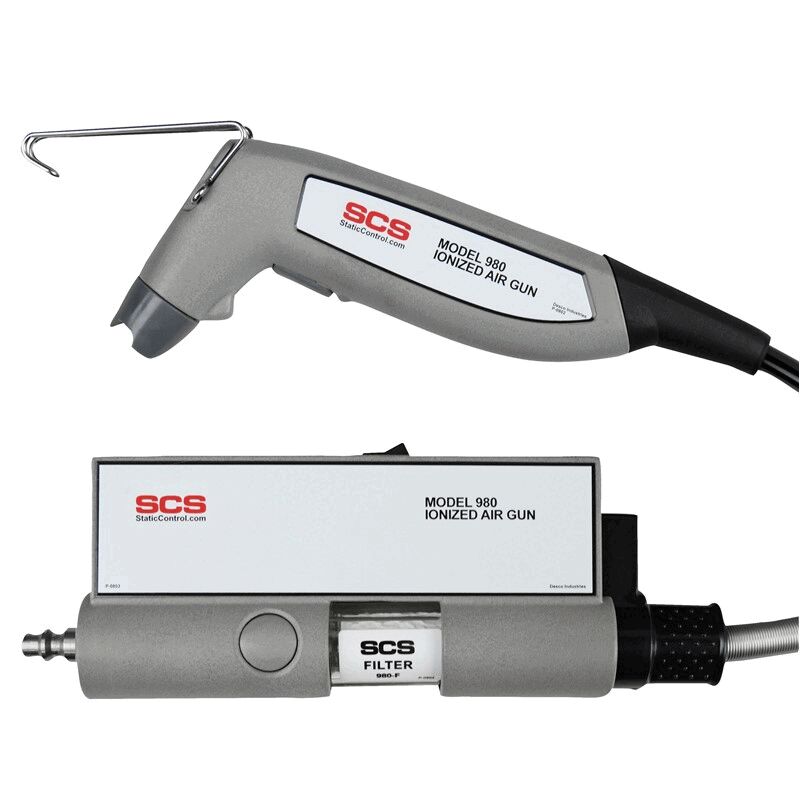

The image shows an ionized air gun in gray with a long handle and a hose connection. It has a mechanical shape and bears the "SCS" logo on various parts.

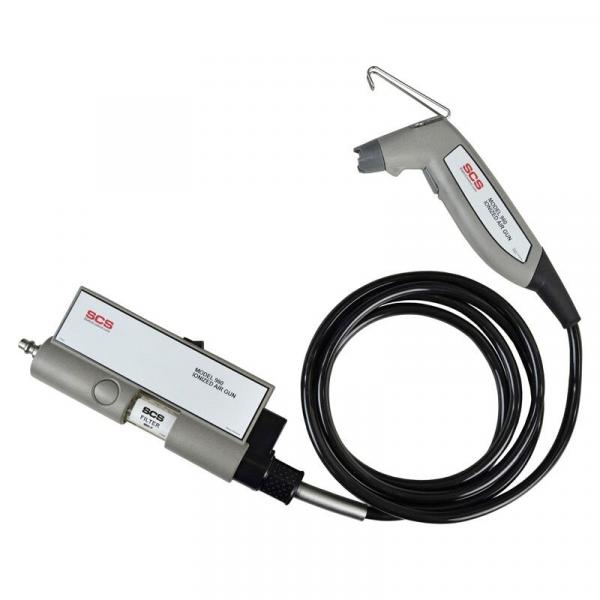

The image shows a device with a gray casing and a black application. It has a hose leading to a handle that has a small opening.

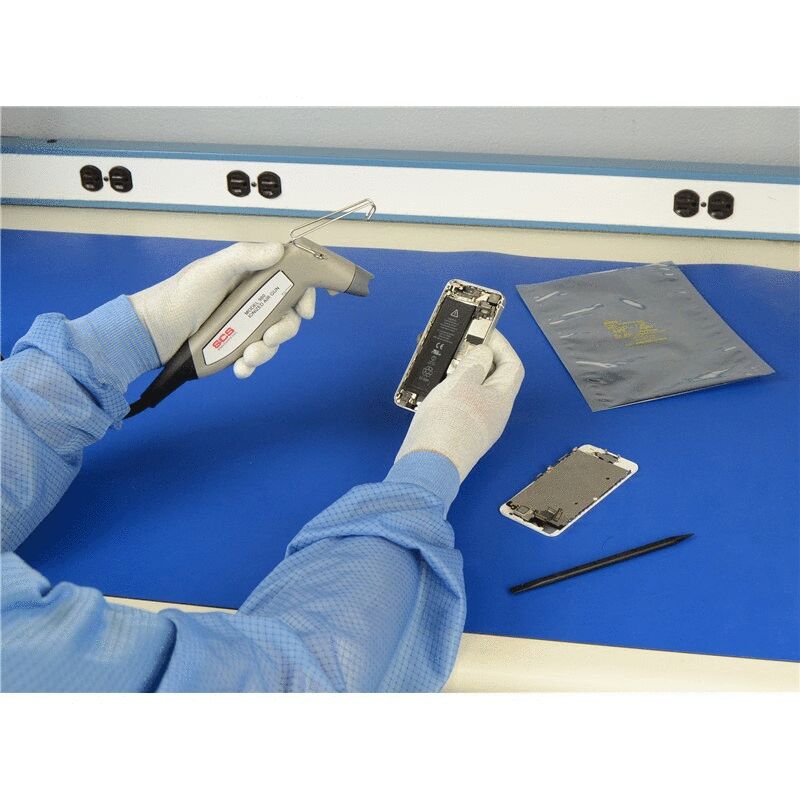

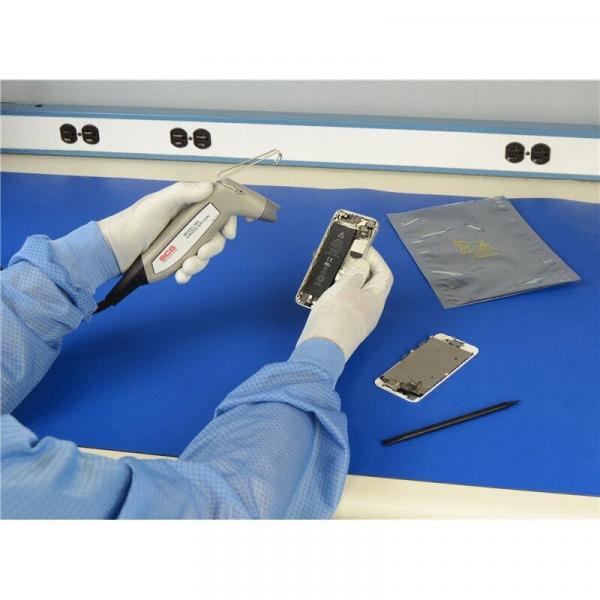

In the image, you can see a hand in a blue glove holding a smartphone with a tool. On a blue table, there is another smartphone and a black pen.
Preview: The image shows an ionized air gun in gray with a long handle and a hose connection. It has a mechanical shape and bears the "SCS" logo on various parts.
Preview: The image shows a device with a gray casing and a black application. It has a hose leading to a handle that has a small opening.
Preview: In the image, you can see a hand in a blue glove holding a smartphone with a tool. On a blue table, there is another smartphone and a black pen.
Ionized air gun
(Product No.: 3M-980E)
The image shows an ionized air gun in gray with a long handle and a hose connection. It has a mechanical shape and bears the "SCS" logo on various parts.
The image shows a device with a gray casing and a black application. It has a hose leading to a handle that has a small opening.
In the image, you can see a hand in a blue glove holding a smartphone with a tool. On a blue table, there is another smartphone and a black pen.
Mobile Preview: The image shows an ionized air gun in gray with a long handle and a hose connection. It has a mechanical shape and bears the "SCS" logo on various parts.
Mobile Preview: The image shows a device with a gray casing and a black application. It has a hose leading to a handle that has a small opening.
Mobile Preview: In the image, you can see a hand in a blue glove holding a smartphone with a tool. On a blue table, there is another smartphone and a black pen.
Notice / Inquire

Ionized air gun

dpvlink:
14075
Further product information

at short notice at short notice
1.744,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Ionized air gun

The ionizing air gun 980E is an effective tool for neutralizing electrostatic charges and removing particulate contaminants. It is particularly suitable for applications such as electronics manufacturing and cleanrooms, where precise control of static charges is required. With a rapid discharge time of less than 0.5 seconds at a distance of 150 mm, this device ensures efficient neutralization of static charges and particles.
The device features a constant ion balance of 0 ± 30 volts, which meets ANSI/ESD S20.20 standards, and it generates an operational noise of 73 dB at 1 bar. The maximum ozone output is less than 0.005 ppm over 24 hours, supporting safety in sensitive work environments.
The ionizing air gun is made from dissipative polycarbonate, making it robust and safe for use near sensitive electronic components. It is lightweight and ergonomically designed, weighing only 326 g and measuring 216 mm x 76 mm x 41 mm. A flexible polyurethane hose facilitates handling and minimizes strain on the operator.
The device is equipped with a 2.13 m long cable and standard air connections, simplifying integration into existing systems. Power is supplied via a 24 V connection, and the gun is designed to operate with clean, dry air or nitrogen at a maximum of 2 bar. With low maintenance requirements and replaceable components such as nozzles and filters that offer a filter efficiency of 99.9% at a particle size of 0.1 microns, this air gun is a reliable solution for professional applications.
Cable length
Cable length
2.10 m
Discharge time max.
Discharge time max.
0.5 s
Ion balance +/-
Ion balance +/-
30 V
Ozone generation max.
Ozone generation max.
0.005 ppm
Voltage
Voltage
230 V
Depth
Depth
41 mm
Height
Height
76 mm
Width
Width
216 mm
Weight
Weight
326 g
Show accessories
Accessories

Accessories

The image displays a black power adapter with two plug pins for the socket. A black cable leads to the connector, which has a round socket. The cable is long and flexible.
Exchangeable wall transformer for Air Gun...
3M wall-mounted transformer type 980E-X, 230 V
(for air gun 980E)
dpvlink
30111

298,55 EUR
Show product

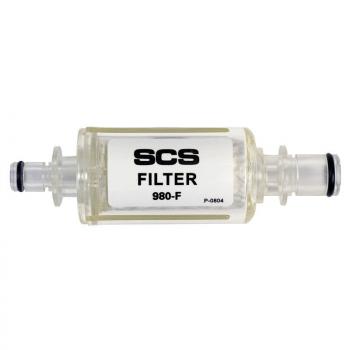

The image displays a transparent filter with two connections. On the filter, the words "SCS FILTER" and the number "980-F" are written in large letters. The filter has a cylindrical shape.
Exchangeable air filter for Air Gun 980E
Replacement air filters 3M type 980 F, PU = 3 pcs
(for air ionizer 3M type 980)
dpvlink
30111

246,60 EUR
Show product
The image shows a clear socket insert with two metallic contacts. The contacts are each long, flat pins protruding from a transparent plastic base.
Exchangeable nozzle tip for Air Gun 980E
Replacement nozzle tip 3M type 980 T
(for air ionizer 3M type 980)
dpvlink
30111

142,75 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 221
Complete Catalog 2023 - 2024

Product Family

Ionized air gun 980E

Article image
Article description
ESD
Cable length
Discharge time max.
Ion balance +/-
Ozone generation max.
Voltage
Depth
Height
Width
Weight
Price
Compare
3M-980E - Ionized air gun
3M-980E
Ionized air gun
2.10 m
0.5 s
30 V
0.005 ppm
230 V
41 mm
76 mm
216 mm
326 g
1.744,00 EUR
