PC-120 ESD Polycarbonate plates 2000 x 1200 x 2 mm
PC-120 ESD Polycarbonate Sheets 2000x1200x2 mm

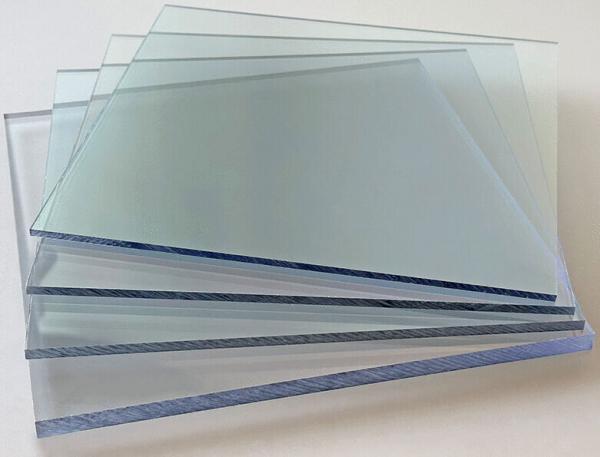

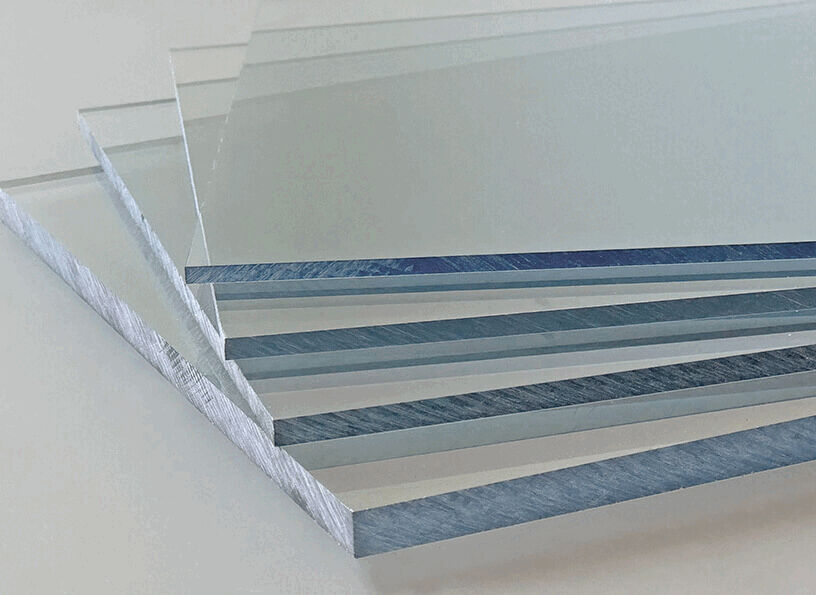

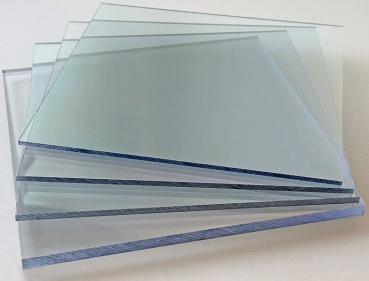

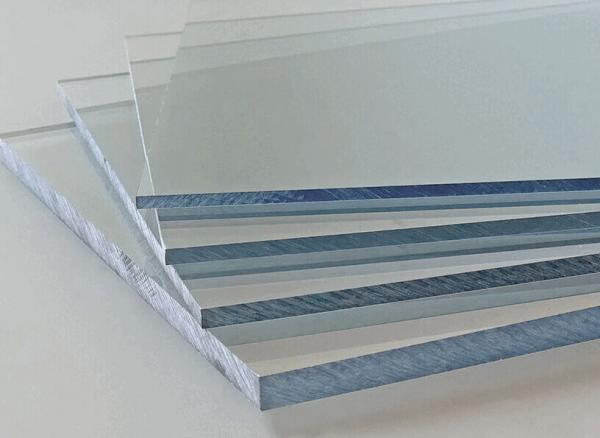

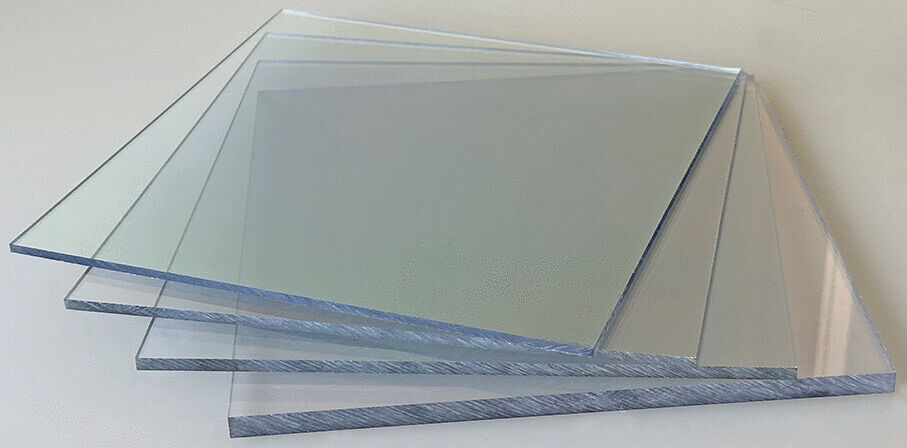

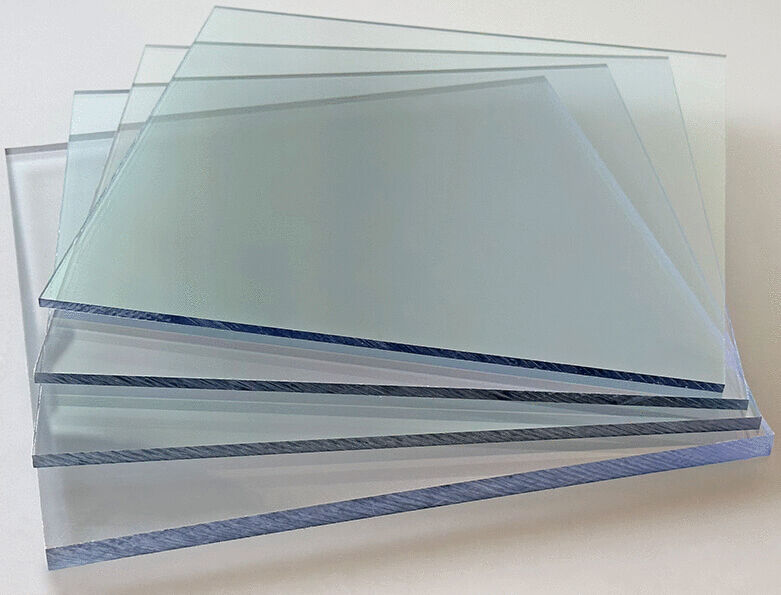

The PC-120 ESD polycarbonate sheets measuring 2000x1200x2 mm provide permanent electrostatic discharge protection through a coating on both sides. This coating meets the DIN EN 61340-5-1 standards, ensuring reliable dissipation of charges without causing sudden discharges or sparking. The sheets are ideal for use in low-dust environments and cleanrooms, as well as in electronics manufacturing and as covers for displays.
The sheets are thermoformable and can be mechanically processed, making them particularly suited for transparent protective devices, thanks to their high impact resistance.
Technical Data:
- Surface resistance: 105 - 108 Ohm
- Density: 1.2 g/cm³
- Water absorption: 0.15 %
- Fire behavior: B1 according to DIN 4102
- Dielectric strength: 35 kV/mm
- Tensile strength: 60 MPa
- Impact strength: no break
- Elongation at break: 6 (110) %
- Vicat softening temperature: 148 °C
- Thermal conductivity: 0.2 W/m°C
- Continuous use temperature: 120 °C
- Max. temporary temperature: 135 °C
- Linear thermal expansion coefficient: 65*10-6 K-1
Additionally, the sheets are supplied with an excess of about 20 mm to protect corners and edges. Additional packaging costs of 25 Euros apply when not purchasing complete packaging units.
Item number: 5231.PC-120ESD.2
Details
- Width [mm] Width [mm]
- 1200
- Length [mm] Length [mm]
- 2000
- Thickness [mm] Thickness [mm]
- 2
- PU PU
- 9 piece
- Plate Plate
- 2.4 m²
Packaging in case of acceptance of incomplete packaging units: 25.00 Euro ++ Plates are delivered with an excess of approx. 20 mm ++
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Width [mm]
Length [mm]
Thickness [mm]
PU
Plate
Price
Compare
1200
2000
5
4 piece
2.4 m²
1200
2000
4
5 piece
2.4 m²
1200
2000
3
6 piece
2.4 m²
1200
2000
8
2 piece
2.4 m²
1200
2000
10
1 piece
2.4 m²
1200
2000
6
3 piece
2.4 m²
1200
2000
2
9 piece
2.4 m²
