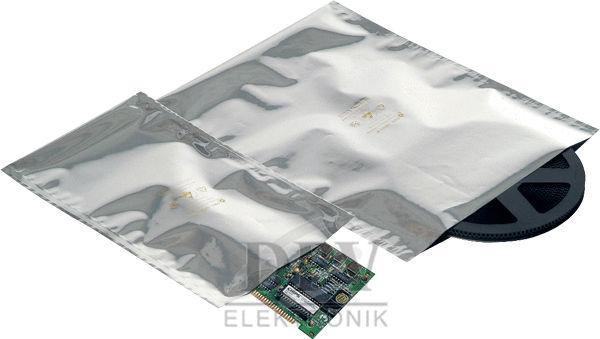

DRY-SHIELD-JEDEC protective bag 152 x 660 mm

(Product No.: 3710.DR150.0626)

(Product No.: 3710.DR150.0626)

DRY-SHIELD-JEDEC protective bag 152 x 660 mm

ArticleNo: 3710.DR150.0626

dpvlink:

10222

Tags:

Width [mm]:

152 mm

Length [mm]:

660 mm

PU:

100 piece

Further product information

Minimum order:

100 PCE

Availability:
Delivery time!

Delivery time!

Delivery time!

76,85 EUR
0,7685 EUR per PCE

100 PCE

Product Info

DRY-SHIELD-JEDEC Protective Bag 152 x 660 mm
The DRY-SHIELD-JEDEC Protective Bag 152 x 660 mm is a high-quality shielding and barrier bag, specifically designed to protect sensitive components from moisture and electrostatic discharges. This bag is made from an effective multilayer of nylon, aluminum, and polyethylene, providing an excellent barrier against water vapor and electromagnetic interference.
Technical Specifications: - Dimensions: Width 152 mm, Length 660 mm - Material thickness: 0.15 mm - Volume and surface resistance: 10^9 - 10^10 Ω - Electrostatic shielding: <10 nJ - Water vapor permeability: 0.00543 g/m² - Packaging unit (PU): 100 pieces
Additionally, the bag is vacuum sealable, weldable, and meets the standards JEDEC-STD-033 C and DIN EN 61340-5-1, making it an ideal choice for the storage and transport of sensitive electronic components.
Item number: 3710.DR150.0626

Details

Width [mm] Width [mm]: 152 mm
Length [mm] Length [mm]: 660 mm
PU PU: 100 piece
Thickness [mm] Thickness [mm]: 0.15
Conductivity Conductivity: shielding
Electrostatic shielding Electrostatic shielding: <10 nJ
Surface resistance Rs Surface resistance Rs: 10⁹ - 10¹⁰ Ω
Volume resistance Volume resistance: 10⁹ - 10¹⁰ Ω
Material Material: polyethylene / nylon
Moisture vapor transmission Moisture vapor transmission: 0.00543 g/m²
heat-sealable heat-sealable: yes
reclosable reclosable: no
useable for vacuum packaging useable for vacuum packaging: yes

Show accessories

Accessories

Accessories

Desiccant Tyvek bags 1/1

Desiccant TA, - 1/1 TME ++
Plastic bag 1/1 unit approx. 36 g
Design B - DIN 55473 / dustproof
PU = 300 pieces (carton)

85,40 EUR

Desiccant Tyvek bags 1/2

Desiccant TA, 1/2 TME
Tyvek bag, 1/2 unit approx. 18g,
Version B - DIN 55473 / dustproof
PU = 600 pieces (box)

111,40 EUR

Desiccant Tyvek bags 1/3

Desiccant TA, 1/3 TME
Tyvek bag, 1/3 unit approx. 12g,
Version B - DIN 55473 / dustproof
PU = 1000 pieces (box)

141,60 EUR

Desiccant Tyvek bags1/6

Desiccant TA, 1/6 TME
Tyvek bag, 1/6 unit approx. 6g,
Version B - DIN 55473 / dustproof
PU = 2000 pieces (box)

165,00 EUR

Desiccant Tyvek bags 2/1

Desiccant TA, Tyvek bags 2/1 unit approx. 70 g
dust proof Tyvek bags ++ 3M ++
Design B - DIN 55473 / dust proof
Pu = 200 pieces

91,90 EUR

Desiccant VA-ESD bags 1/1

Desiccant VA-ESD, non-woven bag 1/1 unit
approx. 36 g, dust-tight non-woven bag antistatic,
type B - DIN 55473 / dust-tight
Content of carton = 400 pieces
(only complete boxes available)

169,10 EUR

Desiccant VA-ESD bags 1/3

Desiccant VA-ESD, non-woven bag 1/3 unit
approx. 12 g, dust-tight non-woven bag antistatic,
type B - DIN 55473 / dust-tight
Content of carton = 400 pieces
(only complete boxes available)

278,70 EUR

Desiccant VA-ESD bags 2/1

Desiccant VA-ESD, non-woven bag 2/1 unit
approx. 72 g, dust-tight non-woven bag antistatic,
type B - DIN 55473 / dust-tight
Content of carton = 240 pieces
(only complete boxes available)

146,45 EUR

Moisture indicators 5-15% type DPV EPApack®...

Humidity indicators type DPV 5-15%
Size 38x65 mm, measuring range 5-15 % rh.
5, 10, 15% relative humidity, English,
PU = 125 pieces / in metal cans
IPC/JEDEC J-STD-033

18,10 EUR

Moisture indicators 5-60% type DPV EPApack®...

Humidity indicators type DPV 5-60%
Size 50x80 mm, measuring range 5-60 % RH
5, 10, 60% relative humidity, English
PU = 125 pieces / in metal box
IPC/JEDEC J-STD-033

17,60 EUR

Moisture indicators 10-40% type DPV EPApack®...

Humidity indicators type DPV 10-40%
Size 38x80 mm, measuring range 10-40% RH
10, 20, 30, 40 % relative humidity, English
PU = 100 pieces / in metal box

17,45 EUR

Moisture indicators 10-60% type DPV EPApack®...

Humidity indicators type DPV 10-60%
Size 38x110 mm, measuring range 10-60% RH
10, 20, 30, 40, 50, 60 % relative humidity
English, PU = 200 pieces / in metal box

28,10 EUR

Moisture indicators 30-50% type DPV EPApack®...

Humidity indicators type DPV 30-50%
Size 38x65 mm, measuring range 30-50% RH
30, 40, 50 % relative humidity, English
PU = 125 pieces / in metal box

18,40 EUR

Moisture indicators 5-60% type DPV EPApack®...

Humidity Indicators Type DPV cobalt-free 5-60%
Size 50x80 mm, measuring range 5-60 % rh
5, 10, 60% relative humidity, English
PU = 125 pieces / in metal cans
IPC/JEDEC J-STD-033 C

17,80 EUR

Moisture indicators 10-60% type DPV EPApack®...

Moisture indicators type DPV Cobalt-free
Size 38x110 mm, measuring range 10-60 % RH
10, 20, 30, 40, 50, 60 % relative humidity
English, PU = 200 pieces / in metal box
IPC/JEDEC J-STD-033 C

31,00 EUR

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Complete Catalog 2023 - 2024

Product Family

Article image

Article description

Width [mm]

Length [mm]

PU

Price

Compare

3710.DR150.1626 - DRY-SHIELD-JEDEC protective bag 406 x 660 mm

3710.DR150.1626
DRY-SHIELD-JEDEC protective bag 406 x 660 mm

406 mm

660 mm

100 piece

172,95 EUR

3710.DR150.1026 - DRY-SHIELD-JEDEC protective bag 254 x 660 mm

3710.DR150.1026
DRY-SHIELD-JEDEC protective bag 254 x 660 mm

254 mm

660 mm

100 piece

114,90 EUR

3710.DR150.1818 - DRY-SHIELD-JEDEC protective bag 457 x 457 mm

3710.DR150.1818
DRY-SHIELD-JEDEC protective bag 457 x 457 mm

457 mm

457 mm

100 piece

135,40 EUR

3710.DR150.0626 - DRY-SHIELD-JEDEC protective bag 152 x 660 mm

3710.DR150.0626
DRY-SHIELD-JEDEC protective bag 152 x 660 mm

152 mm

660 mm

100 piece

76,85 EUR

3710.DR150.0426 - DRY-SHIELD-JEDEC protective bag 102 x 660 mm

3710.DR150.0426
DRY-SHIELD-JEDEC protective bag 102 x 660 mm

102 mm

660 mm

100 piece

58,80 EUR

This product is compatible with (for example):

Label EPA Protection

ESD warning labels "EPA" round 10 mm,
Self-adhesive PVC foil
(PU/sheet = 204 pieces)

4,90 EUR

Vacuum packaging machine type VS600E-D

Vacuum packaging machine type VS600E-D
sealing bar length: 600 mm, welding seam
width 10 mm
Max bags width 590 mm
-requires compressed air approx. 6.5 bar
- vacuum sensor- or time-controlled
- digital vacuum display
- stainless steel housing
- save up to 5 programs

3.800,00 EUR

Typ VS450M-D / VS450E-D

Vacuum packaging machine type VS450E-D

Vacuum packaging machine type VS450M-D
sealing bar length: 450 mm, welding seam
width 10 mm
Max bags width 400 mm
-no compressed air required
- vacuum sensor- or time-controlled
- digital vacuum display
- stainless steel housing
- save up to 5 programs

3.256,00 EUR

Typ VS450M-D / VS450E-D

Vacuum packaging machine type VS450E-D

Vacuum packaging machine type VS450E-D
sealing bar length: 450 mm, welding seam
width 10 mm
Max bags width 400 mm
-requires compressed air approx. 6.5 bar
- vacuum sensor- or time-controlled
- digital vacuum display
- stainless steel housing
- save up to 5 programs

3.500,00 EUR

Label EPA Protection

ESD warning labels "EPA" 98 x 98 mm,
PVC foil yellow, black printing
self-adhesive

0,61 EUR

Label trained personnel (roll)

ESD warning labels, 52 x 105 mm, German/English
PVC foil self-adhesive, DIN 40021
Roll = 500 pieces
+++ Text 2 / only trained personal...+++

61,70 EUR

Label handling instructions (roll)

ESD warning labels, 52 x 105 mm, German/English
PVC foil self-adhesive, DIN 40021
Roll = 500 pieces
+++ Text 1 / handling rules...+++

61,70 EUR

Label trained personnel (roll)

ESD warning labels, 37 x 74 mm, German/English
PVC foil self-adhesive, DIN 40021
Roll = 500 pieces
+++ Text 2 / only trained personal...+++

52,90 EUR

Label handling instructions (roll)

ESD warning labels, 37 x 74 mm, German/English
PVC foil self-adhesive, DIN 40021
Roll = 500 pieces
+++ Text 1 / handling rules...+++

52,90 EUR

Label trained personnel (roll)

ESD warning labels, 26 x 52 mm, German/English
PVC foil self-adhesive, DIN 40021
Roll = 500 pieces
+++ Text 2 / only trained personal...+++

42,95 EUR

Label handling instructions (roll)

ESD warning labels, 26 x 52 mm, German/English
PVC foil self-adhesive, DIN 40021
Roll = 500 pieces
+++ Text 1 / handling rules...+++

42,95 EUR

Label trained personnel (roll)

ESD warning labels, 18 x 37 mm, German/English
PVC foil self-adhesive, DIN 40021
Roll = 500 pieces
+++ Text 2 / only trained personal...+++

41,10 EUR

Label handling instructions (roll)

ESD warning labels, 18 x 37 mm, German/English
PVC foil self-adhesive, DIN 40021
Roll = 500 pieces
+++ Text 1 / handling rules...+++

41,10 EUR

Label EPA Protection

ESD warning labels "EPA" 60 x 60 mm,
PVC foil yellow, printing black
self-adhesive (Pu = 12 pieces)

6,70 EUR

Label ESD Protection

Warning label "ESD" red 30 x 25 mm,
Self-adhesive PVC film
(PU/sheet = 50 pieces)

7,20 EUR

Label EPA Protection

ESD warning label "EPA" 30 x 25 mm,
Self-adhesive PVC foil
(PU = 50 pcs)

7,20 EUR

Typ VS800E-D

Vacuum packaging machine type VS800E-D

Vacuum packaging machine type VS800E-D
sealing bar length: 800 mm, welding seam
width 5 mm
Max bags width 790 mm
-requires compressed air approx. 6.5 bar
- vacuum sensor- or time-controlled
- digital vacuum display
- stainless steel housing
- save up to 5 programs

4.137,00 EUR

This product is similar to:

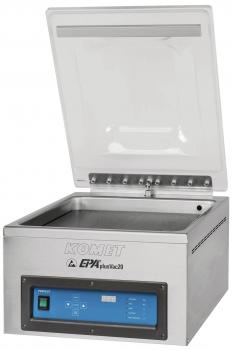

EPA®plusVac20 ESD vacuum packaging machine...

Komet EPA®plusVac20 ESD Vacuum packing machine
Chamber size WxLxH: 430 x 505 x 175 mm
Sealing length: 1 x 405 mm,
max. bag size 400 x 500 mm
Tabletop, dimensions: 480x655x385 mm WxLxH
Electronics: PerfectPlus
Fumigation device
Reinforced welding transformer
Pump for 21 cbm/h
Connected load: 1.0 kW / 400 V
Weight: 62 kg

ESD version with conductive feet, inserts and lids

6.149,00 EUR

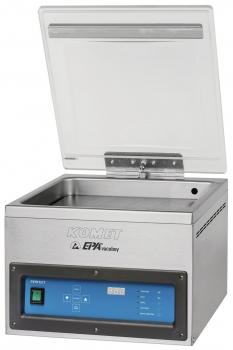

EPA®vacuboy ESD Vacuum packaging machine...

Komet EPA®vacuboy ESD Vacuum packing machine
Chamber size WxLxH: 360 x 380 x 140 mm
Sealing length: 350 mm, max. bag size 350 x 400mm
Tabletop, dimensions: 400x500x360 mm WxLxH
Electronics: PerfectPlus
Fumigation device
Reinforced welding transformer
Pump for 10 cbm/h
Connected load: 0.7 kW / 230 V
Weight: 44 kg

ESD version with conductive feet, inserts and lids

4.797,00 EUR

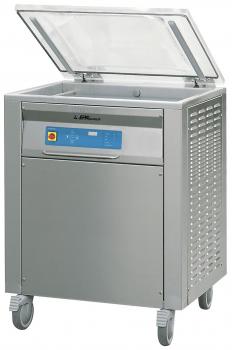

EPA®plusVac24 ESD Vacuum packaging machine...

Komet EPA®plusVac24 ESD Vacuum packing machine
Chamber size WxLxH: 640 x 475 x 205 mm
Sealing length: 2 x 455 mm
max. bag size 450 x 600 mm
Floor model, dimensions: 710 x 665 x 1010 mm WxLxH
Electronics: PerfectPlus
Fumigation device
Reinforced welding transformer
Pump for 60 cbm/h
Connected load: 1.9 kW / 400 V
Weight: 117 kg

ESD version with conductive feet, inserts and lids

9.257,00 EUR

Customers who bought this product also bought the following products:

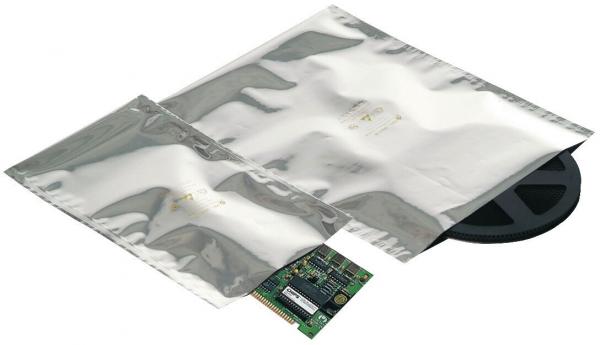

DRY-SHIELD-JEDEC protective bag 254 x 660...
