Control unit for series DLV7300-BK
Control unit for series DLV7300-BK

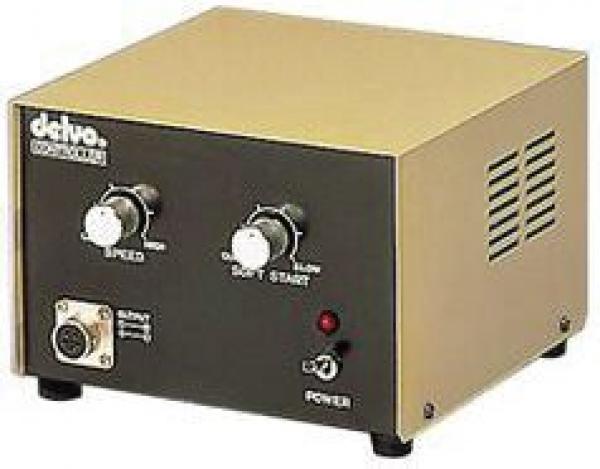

The control unit for the DLV7300-BK series from delvo is specifically designed for the screwdriver models DLV 7321-BK and 7331-BK. It offers an input voltage of 230 V AC with an operating frequency of 50-60 Hz and has an output voltage of 36 V/DC. The control unit DLC-1213 is characterized by its compact dimensions of 143 mm in length, 145 mm in width, and 102 mm in height. The weight is 2.3 kg.A special feature of this model is the soft start function, which allows gentle acceleration, as well as the option for speed pre-selection, which allows precise adjustment to various work scenarios. The device is ESD-protected and has connection options with 5-pin or 6-pin. The cable length of 2 meters provides sufficient flexibility for different application areas. This control unit is a reliable solution for demanding assembly tasks where precision and protection of electronic components are paramount.
Details
- Cable length Cable length
- 2.0 m
- Input voltage Input voltage
- 230 V/AC
- Output voltage DC Output voltage DC
- 36 V/DC
- Height Height
- 102 mm
- Length Length
- 143 mm
- Width Width
- 145 mm
- Connection Connection
- 5-Pin / 6-Pin
- ESD ESD
- yes
- Weight Weight
- 2300 g
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Control units Delvo
Article image
Article description
ESD
Cable length
Input voltage
Output voltage DC
Height
Length
Width
Connection
ESD
Weight
Price
Compare
2.0 m
230 V/AC
36 V/DC
102 mm
143 mm
145 mm
5-Pin / 6-Pin
yes
2300 g
