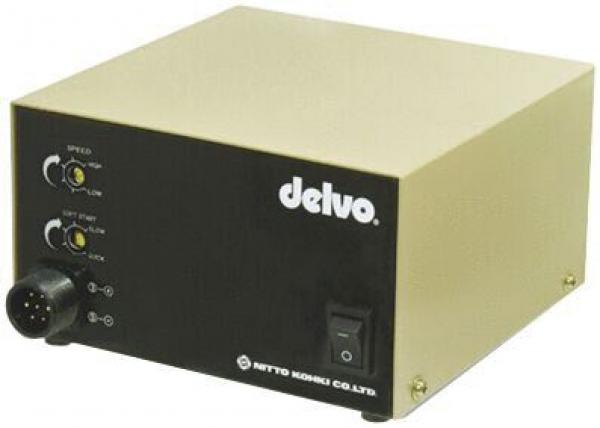

The image shows a compact, cube-shaped device in gold and black. On the front, there are switches and knobs. The "delvo" logo is prominently placed.
Control unit for series DLV7500/8500 BKE
(Product No.: 462.451)
The image shows a compact, cube-shaped device in gold and black. On the front, there are switches and knobs. The "delvo" logo is prominently placed.
Notice

Control unit for series DLV7500/8500 BKE

Control unit for series DLV7500/8500 BKE

dpvlink:
25701
Properties:
Further product information

Delivery time! Delivery time!
256,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Control unit for series DLV7500/8500 BKE

The control unit manufactured by delvo for the DLV7500/8500 BKE series is specifically designed for the screwdriver models DLV 7530, 7540, 7550, 8530, 8540, and 8550. This device offers a stepless speed setting from 80 to 100 percent and allows for an adjustable time setting of the slow speed up to a maximum of 3 seconds through the soft start. Additionally, it features external output signals for start and torque increase, as well as an ESD-compliant design, making it ideal for use in sensitive electronic environments.
The technical specifications include an input voltage of 230 V AC at a frequency of 50-60 Hz. The dimensions of the device are 139 x 140 x 81.5 mm, and it has a weight of 3.5 kg. The control unit is also equipped with a 2-meter long cable, which allows for flexible installation.
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
