Support arm and torque support

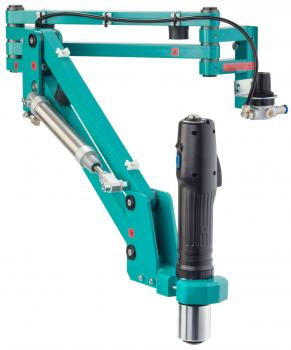

The image shows a blue, mechanical arm with a handle and a tool at the end. The arm has multiple joints and a powerful connection for use.
PoSy80 base frame for wall mounting
PoSy80 basic frame for wall mounting complete
with tool holder, cylinders, pressure regulator
Wingspan approx. 850 mm, tool holder max 45 mm,.
Max torque 80Nm;
dpvlink
20459

Product No.: PoSy-80W
1.271,70 EUR
excl. 19% tax

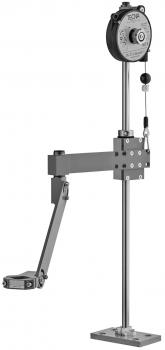

The image shows a mechanical lifting device with a vertical stand, a redirection pulley at the top, and a swivel arm. The base is square and stable.
Support arm
Opening of jaws: 28 - 44 mm / Working distance : 0-400 mm / Torque range: 15.0 Nm / Height : 700 mm /
Articulated arm GTA 15/400, max. 15 Nm;
Version: aluminium/steel/high-quality linear
bearings

- column height 700 mm
- tool clamping range 23-40 mm,
- working range 0-420 mm
- working height adjustable
- stand 80 x 135 mm
dpvlink
28225

Product No.: GTA-15-400
830,00 EUR
excl. 19% tax

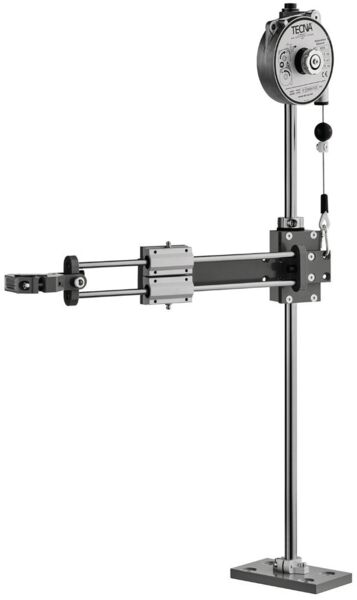

The image shows a mechanical device with a long vertical stand and a rope dispenser attached at the top. A horizontal carriage can be moved along the stand.
Linear support arm LTA 5-400, max. 5 Nm
Load capacity : 2 kg / Working distance : 517-919 mm / Torque range: 5.0 Nm / Height : 700 mm /
Articulated support arm LTA 5-400 with
spring balancer
Finish: aluminum, steel, high quality
linear bearings
- Column height: 700 mm
- Torque/reaction torque: up to 5 Nm
- Working range: 517 - 519 mm
- Cable pull: up to 2 kg
- Load capacity: max. 2 kg
- Swivel range: 360°
- Stand: 80 x 135 mm
- Tool holder: 23 - 40 mm
dpvlink
28232

Product No.: LTA-5-400
793,00 EUR
excl. 19% tax

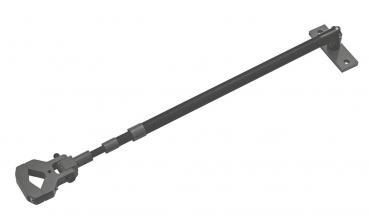

The image displays a long, narrow bar with a U-shaped shard at the end. The bar is made of metal and is gray in color. It is used for securing doors or windows.
Carbon torque support 12 Nm
max. Nm: 12 Nm / Length min: 460 mm / Length max: 950 mm / Ø: 27-50 mm
Carbon torque support max. 12 Nm
telescope length: 460 - 950 mm
Tool holder 27 - 50 mm

( suitable for straight screwdrivers or screwdrivers with pistol grip)
dpvlink
28125

Product No.: KDA-i12-950
472,25 EUR
excl. 19% tax

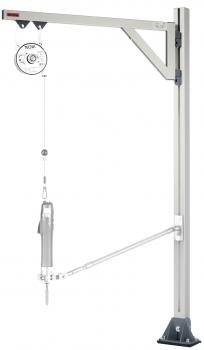

The image shows a sturdy, vertical lever with a horizontal arm extension. At one end, there is a pulley with a rope and a handle. The entire structure is made of metal.
Pivoting support arm 0600
Pivoting support arm ST-1200 / 0600
Aluminium profile, height 1200 mm / arm 600 mm
Base 135 x 45 mm, pivoting range 180°
with 2 plastic glides as tool holders,
torque support, load capacity 6 kg
dpvlink
20450

Product No.: ST-1200/0600
392,40 EUR
excl. 19% tax
The image shows a sturdy, vertical lever with a horizontal arm extension. At one end, there is a pulley with a rope and a handle. The entire structure is made of metal.
Pivoting support arm 0800
Pivoting support arm ST-1200 / 0800
Aluminium profile, height 1200 mm / arm 800 mm
Base 135 x 45 mm, pivoting range 180°
with 2 plastic glides as tool holders,
torque support, load capacity 6 kg
dpvlink
20450

Product No.: ST-1200/0800
410,20 EUR
excl. 19% tax
The image shows a sturdy, vertical lever with a horizontal arm extension. At one end, there is a pulley with a rope and a handle. The entire structure is made of metal.
Pivoting support arm 1000
Pivoting support arm ST-1200 / 1000
Aluminium profile, height 1200 mm / arm 1000 mm
Base 135 x 45 mm, pivoting range 180°
with 2 plastic glides as tool holders,
torque support, load capacity 8 kg
dpvlink
20450

Product No.: ST-1200/1000
525,20 EUR
excl. 19% tax
The image displays a technical arm. It consists of a bright blue, movable arm with a black handle and is attached to a vertical metal post.
PoSy80 base frame with column
PoSy80 basic frame with pillar and tool holder,
Cylinder and pressure regulator
Wingspan approx. 850 mm, tool holder max. 45 mm,.
Max torque 80Nm
dpvlink
20459

Product No.: PoSy-80S
1.490,70 EUR
excl. 19% tax
The image displays a long, narrow bar with a U-shaped shard at the end. The bar is made of metal and is gray in color. It is used for securing doors or windows.
Carbon torque support 12 Nm
max. Nm: 12 Nm / Length min: 650 mm / Length max: 1500 mm / Ø: 27-50 mm
Carbon support max. 12 Nm
Telescope length: 650 - 1500 mm
Tool holder 27 - 50 mm

( suitable for straight or gun screwdrivers )
dpvlink
28125

Product No.: KDA-i12-1500
690,65 EUR
excl. 19% tax
The image displays a long, narrow bar with a U-shaped shard at the end. The bar is made of metal and is gray in color. It is used for securing doors or windows.
Carbon torque support 12 Nm
max. Nm: 12 Nm / Length min: 820 mm / Length max: 2000 mm / Ø: 27-50 mm
Carbon torque support max. 12 Nm
Telescope length: 820 - 2000 mm
Tool holder 27 - 50 mm

(suitable for straight screwdrivers or screwdrivers with pistol grip)
dpvlink
28125

Product No.: KDA-i12-2000
785,50 EUR
excl. 19% tax
The image displays a long, narrow bar with a U-shaped shard at the end. The bar is made of metal and is gray in color. It is used for securing doors or windows.
Carbon torque support 30 Nm
max. Nm: 30 Nm / Length min: 656 mm / Length max: 1500 mm / Ø: 28-52 mm
Carbon torque support max. 30 Nm
Telescope length: 656 - 1500 mm
Tool holder 28 - 52 mm

(suitable for straight screwdrivers or screwdrivers with pistol grip)
dpvlink
28125

Product No.: KDA-i30-1500
864,40 EUR
excl. 19% tax
The image displays a long, narrow bar with a U-shaped shard at the end. The bar is made of metal and is gray in color. It is used for securing doors or windows.
Carbon torque support 30 Nm
max. Nm: 30 Nm / Length min: 823 mm / Length max: 2000 mm / Ø: 28-52 mm
Carbon torque support max. 30 Nm
Telescope length: 823 - 2000 mm
Tool holder 28 - 52 mm

(suitable for straight screwdrivers or screwdrivers with pistol grip)
dpvlink
28125

Product No.: KDA-i30-2000
969,60 EUR
excl. 19% tax
The image displays a long, narrow bar with a U-shaped shard at the end. The bar is made of metal and is gray in color. It is used for securing doors or windows.
Carbon torque support 30 Nm
max. Nm: 30 Nm / Length min: 475 mm / Length max: 960 mm / Ø: 28-52 mm
Carbon torque support max. 30 Nm
Telescope length: 475 - 960 mm
Tool holder 28 - 52 mm

(suitable for straight screwdrivers or screwdrivers with pistol grip)
dpvlink
28125

Product No.: KDA-i30-960
582,00 EUR
excl. 19% tax
The image displays a long, narrow bar with a U-shaped shard at the end. The bar is made of metal and is gray in color. It is used for securing doors or windows.
Carbon torque support 5 Nm
max. Nm: 5.0 Nm / Length min: 460 mm / Length max: 950 mm / Ø: 25-42 mm
Carbon torque support max. 5 Nm
Telescope length: 460 - 950 mm
Tool holder 25 - 42 mm

(suitable for straight screwdrivers or screwdrivers with pistol grip)
dpvlink
28125

Product No.: KDA-i5-950
527,15 EUR
excl. 19% tax
The image shows a mechanical device with a long vertical stand and a rope dispenser attached at the top. A horizontal carriage can be moved along the stand.
Linear support arm LTA 15-200, max. 15 Nm
Load capacity : 3.0 kg / Working distance : 317-519 mm / Torque range: 15.0 Nm / Height : 700 mm /
Articulated support arm LTA 15-200 with
spring balancer
Finish: aluminum, steel, high quality
linear bearings
- Column height: 700 mm
- Torque/reaction torque: up to 15 Nm
- Working range: 317 - 519 mm
- Cable pull: up to 3 kg
- Load capacity: max. 3 kg
- Swivel range: 360°
- Stand: 80 x 135 mm
- Tool holder: 28 - 44 mm
dpvlink
28232

Product No.: LTA-15-200
769,00 EUR
excl. 19% tax
The image shows a mechanical device with a long vertical stand and a rope dispenser attached at the top. A horizontal carriage can be moved along the stand.
Linear support arm LTA 40-200, max. 40 Nm
Load capacity : 3.0 kg / Working distance : 317-519 mm / Torque range: 40 Nm / Height : 700 mm /
Articulated support arm LTA 40-200 with
spring balancer
Finish: aluminum, steel, high quality
linear bearings
- Column height: 700 mm
- Torque/reaction torque: up to 40 Nm
- Working range: 317 - 519 mm
- Cable pull: up to 3 kg
- Load capacity: max. 3 kg
- Swivel range: 360°
- Stand: 80 x 135 mm
- Tool holder: 32 - 47 mm
dpvlink
28232

Product No.: LTA-40-200
1.286,00 EUR
excl. 19% tax
1 to 16 (from a total of 16)
