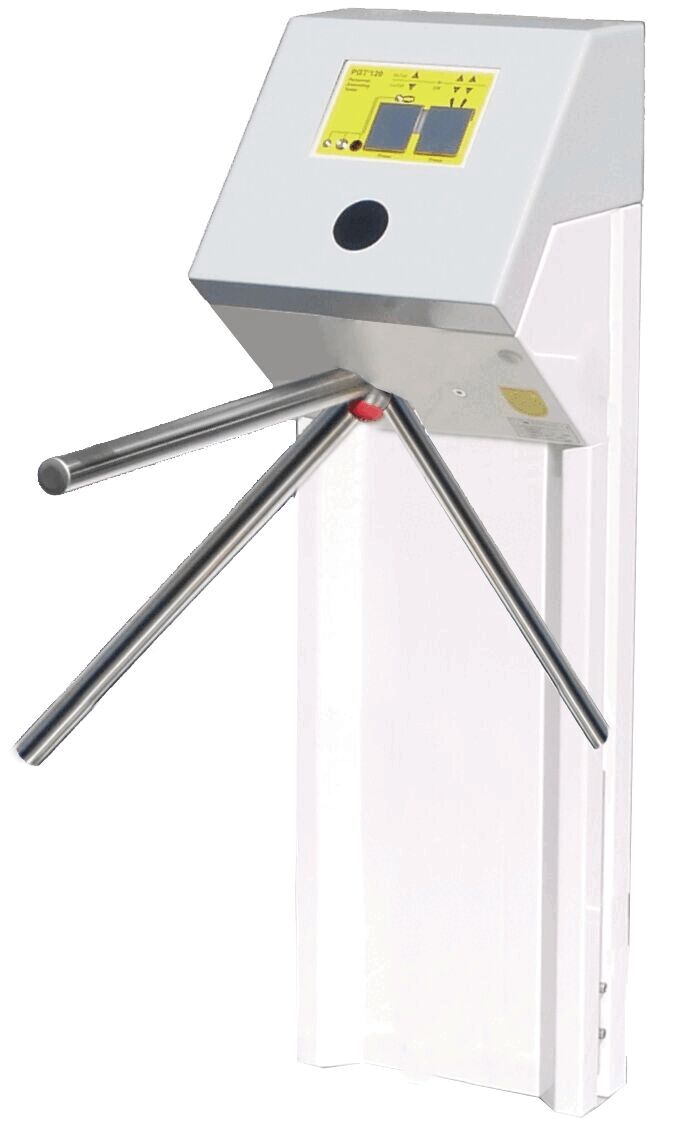

The image displays an access system featuring a tripod turnstile. At the top, there is a control panel with buttons and displays. The entire device is made of metal and has a clear, functional shape.
Turnstile Compact 3 arms
(Product No.: 6COM.3.AEW)
The image displays an access system featuring a tripod turnstile. At the top, there is a control panel with buttons and displays. The entire device is made of metal and has a clear, functional shape.

Turnstile Compact 3 arms

Turnstile Compact 3 arms

dpvlink:
20079
Further product information

Delivery time! Delivery time!

Compare Compare
Notice
Product Info

Turnstile Compact 3 arms

The Gotschlich Compact 3-arm turnstile combines motor-driven functionality with a compact and robust design, making it ideal for high-traffic areas both indoors and outdoors. This model is made of galvanized and plastic-coated steel, and is characterized by its weather resistance and durability. With a width of 875 mm, a variable height from 1000 to 1365 mm, and a length of 350 mm, the turnstile offers a passage width of 570 mm, allowing for a high throughput of people.
The turnstile is designed for noise-free operation, as it features maintenance-free mechanics. It can be used in both single and bi-directional modes, enabling flexible application as both an entrance and an exit. The height-adjustable base allows for optimal adaptation to local conditions. Additionally, the model is equipped with a built-in PGT 120 and allows for easy integration of card readers and other systems. Optionally, the turnstile can be expanded with a person test station. The unit is delivered fully assembled, ensuring quick and easy installation.
Voltage
Voltage
230 V
Height
Height
1000 - 1365 mm
Length
Length
350 mm
passage width
passage width
570 mm
Width
Width
875 mm
Material
Material
steel / powder-coated
ESD
ESD
no
Version
Version
standalone system, With integrated PGT 120
Operating temperature
Operating temperature
-20 - 50 °C
Storage temperature
Storage temperature
-40 - 50 °C
Weight
Weight
45 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 156
Workwear | Professional footwear 2024
Page: 198
Complete Catalog 2023 - 2024

Product Family

Barrier system COMPACT

The motorized turnstiles combine a compact, robust design with flexible application options and a long service life. They are ideal for use in high-traffic areas and offer a reliable solution for separating people - both indoors and outdoors.

  • Particularly compact and robust design for confined spaces
  • Weatherproof, powder-coated housing - suitable for outdoor use
  • Silent operation thanks to maintenance-free mechanics
  • Single or bidirectional operation for flexible use as entry and exit
  • Height-adjustable stand for optimum adaptation on site
  • High passenger throughput with secure separation of persons
  • Card reader and other systems can be easily integrated
  • Optionally expandable with person test station
  • Ready-assembled delivery for quick installation

Article image
Article description
Voltage
Height
Length
passage width
Width
Material
ESD
Version
Operating temperature
Storage temperature
Weight
Price
Compare
6COM.2.AEB-H - Turnstile Compact 2-arm
6COM.2.AEB-H
Turnstile Compact 2-arm
230 V
1000 - 1365 mm
350 mm
570 mm
875 mm
steel / powder-coated
no
standalone system, combination
-20 - 50 °C
-40 - 50 °C
45 kg
-
6COM.3.AEB-H - Turnstile Compact 3 arms
6COM.3.AEB-H
Turnstile Compact 3 arms
230 V
1000 - 1365 mm
350 mm
570 mm
875 mm
steel / powder-coated
no
standalone system
-20 - 50 °C
-40 - 50 °C
45 kg
-
6COM.3.AEW - Turnstile Compact 3 arms
6COM.3.AEW
Turnstile Compact 3 arms
230 V
1000 - 1365 mm
350 mm
570 mm
875 mm
steel / powder-coated
no
standalone system, With integrated PGT 120
-20 - 50 °C
-40 - 50 °C
45 kg
-
