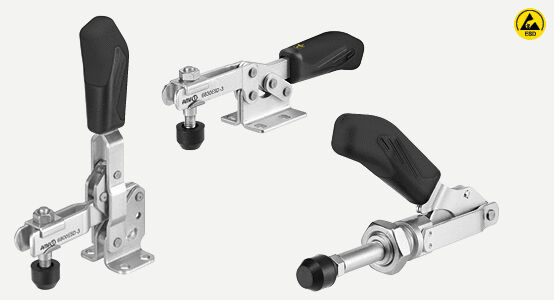

ESD toggle clamps

The ESD toggle clamps have been especially developped for all works with electrostatically sensitive components, modules or devices in ESD protective zones (EPA) according to the standard DIN EN 61340-5-1.

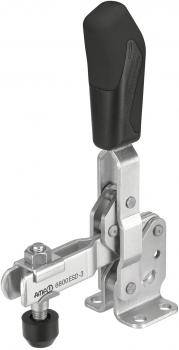

ESD vertical toggle clamp type 6800, size 0
ESD vertical toggle clamp type 6800, size 0
clamping screw M4 x 25, holding force 0.5 - 0.7 kN
Weight 60g, ESD version
(DIN EN 61340-5-1)
dpvlink
24596

Product No.: 630.6800.0
30,30 EUR

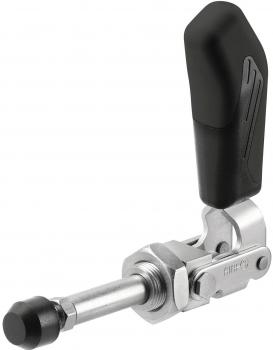

ESD Push-pull type toggle clamp type 6844, size 3
ESD push-pull type toggle clamp type 6844, size 3
clamping screw M8 x 35, holding force 2.5 - 2.5 kN
short design, weight 320g, ESD version
(DIN EN 61340-5-1)
dpvlink
24741

Product No.: 630.6844.3
53,55 EUR
ESD vertical toggle clamp type 6800, size 2
ESD vertical toggle clamp type 6800, size 2
clamping screw M6 x 35, holding force 0.8 - 1.2 kN
Weight 175g, ESD version
(DIN EN 61340-5-1)
dpvlink
24596

Product No.: 630.6800.2
38,20 EUR

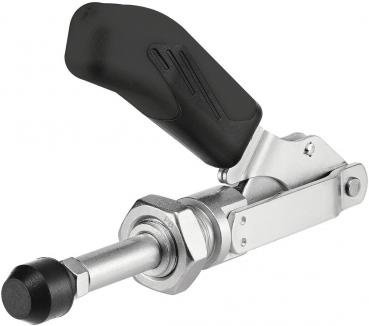

ESD Push-pull type toggle clamp type 6840, size 3
ESD push-pull type toggle clamp type 6840, size 3
clamping screw M8 x 35, holding force 2.5 - 2.5 kN
Weight 330g, ESD version
(DIN EN 61340-5-1)
dpvlink
24735

Product No.: 630.6840.3
53,55 EUR

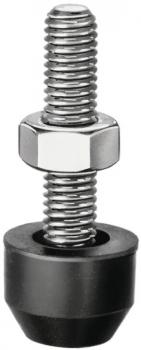

ESD Clamping screw type 6880, size 3
ESD clamping screw type 6880, size 3
DIN 933, M8 x 55, ESD version
(DIN EN 61340-5-1)
dpvlink
24744

Product No.: 630.6880.3
7,90 EUR
ESD vertical toggle clamp type 6800, size 1
ESD vertical toggle clamp type 6800, size 1
clamping screw M5 x 30, holding force 0.6 - 1.1 kN
Weight 105g, ESD version
(DIN EN 61340-5-1)
dpvlink
24596

Product No.: 630.6800.1
31,70 EUR
ESD vertical toggle clamp type 6800, size 3
ESD vertical toggle clamp type 6800, size 3
clamping screw M8 x 45, holding force 1.2 - 2.5 kN
Weight 410g, ESD version
(DIN EN 61340-5-1)
dpvlink
24596

Product No.: 630.6800.3
42,95 EUR

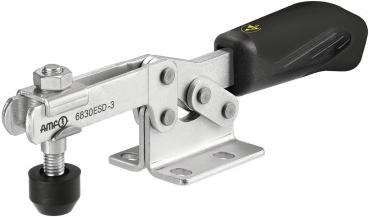

ESD Horizontal toggle clamp typ 6830, size 0
ESD horizontal toggle clamp type 6830, size 0
clamping screw M4 x 25, holding force 0.5 - 0.4 kN
Weight 35g, ESD version
(DIN EN 61340-5-1)
dpvlink
24730

Product No.: 630.6830.0
30,30 EUR
ESD Horizontal toggle clamp typ 6830, size 1
ESD horizontal toggle clamp type 6830, size 1
clamping screw M5 x 30, holding force 0.8 - 1.1 kN
Weight 105g, ESD version
(DIN EN 61340-5-1)
dpvlink
24730

Product No.: 630.6830.1
36,05 EUR
ESD Horizontal toggle clamp typ 6830, size 2
ESD horizontal toggle clamp type 6830, size 2
clamping screw M6 x 35, holding force 1.0 - 1.2 kN
Weight 185g, ESD version
(DIN EN 61340-5-1)
dpvlink
24730

Product No.: 630.6830.2
37,25 EUR
ESD Horizontal toggle clamp typ 6830, size 3
ESD horizontal toggle clamp type 6830, size 3
clamping screw M8 x 45, holding force 1.8 - 2.5 kN
Weight 320g, ESD version
(DIN EN 61340-5-1)
dpvlink
24730

Product No.: 630.6830.3
42,85 EUR
ESD Push-pull type toggle clamp type 6840, size 0
ESD push-pull type toggle clamp type 6840, size 0
clamping screw M4 x 25, holding force 0.8 - 0.8 kN
Weight 60g, ESD version
(DIN EN 61340-5-1)
dpvlink
24735

Product No.: 630.6840.0
42,85 EUR
ESD Push-pull type toggle clamp type 6840, size 1
ESD push-pull type toggle clamp type 6840, size 1
clamping screw M4 x 20, holding force 1.0-1.0 kN
Weight 100g, ESD version
(DIN EN 61340-5-1)
dpvlink
24735

Product No.: 630.6840.1
46,75 EUR
ESD Push-pull type toggle clamp type 6840, size 2
ESD push-pull type toggle clamp type 6840, size 2
clamping screw M6 x 25, holding force 2.0 - 2.0 kN
Weight 245g, ESD version
(DIN EN 61340-5-1)
dpvlink
24735

Product No.: 630.6840.2
48,40 EUR
ESD Push-pull type toggle clamp type 6844, size 2
ESD push-pull type toggle clamp type 6844, size 2
clamping screw M6 x 25, holding force 1.0 - 1.0 kN
short design, weight 130g, ESD version
(DIN EN 61340-5-1)
dpvlink
24741

Product No.: 630.6844.2
48,40 EUR

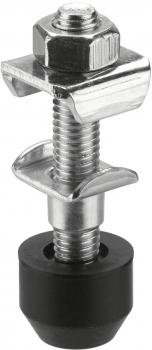

ESD Clamping screw type 6880, size 0+1
ESD clamping screw type 6880, size 0+1
DIN 933, M4 x 20, ESD version
(DIN EN 61340-5-1)
dpvlink
24744

Product No.: 630.6880.0
7,50 EUR
1 to 16 (from a total of 21)
