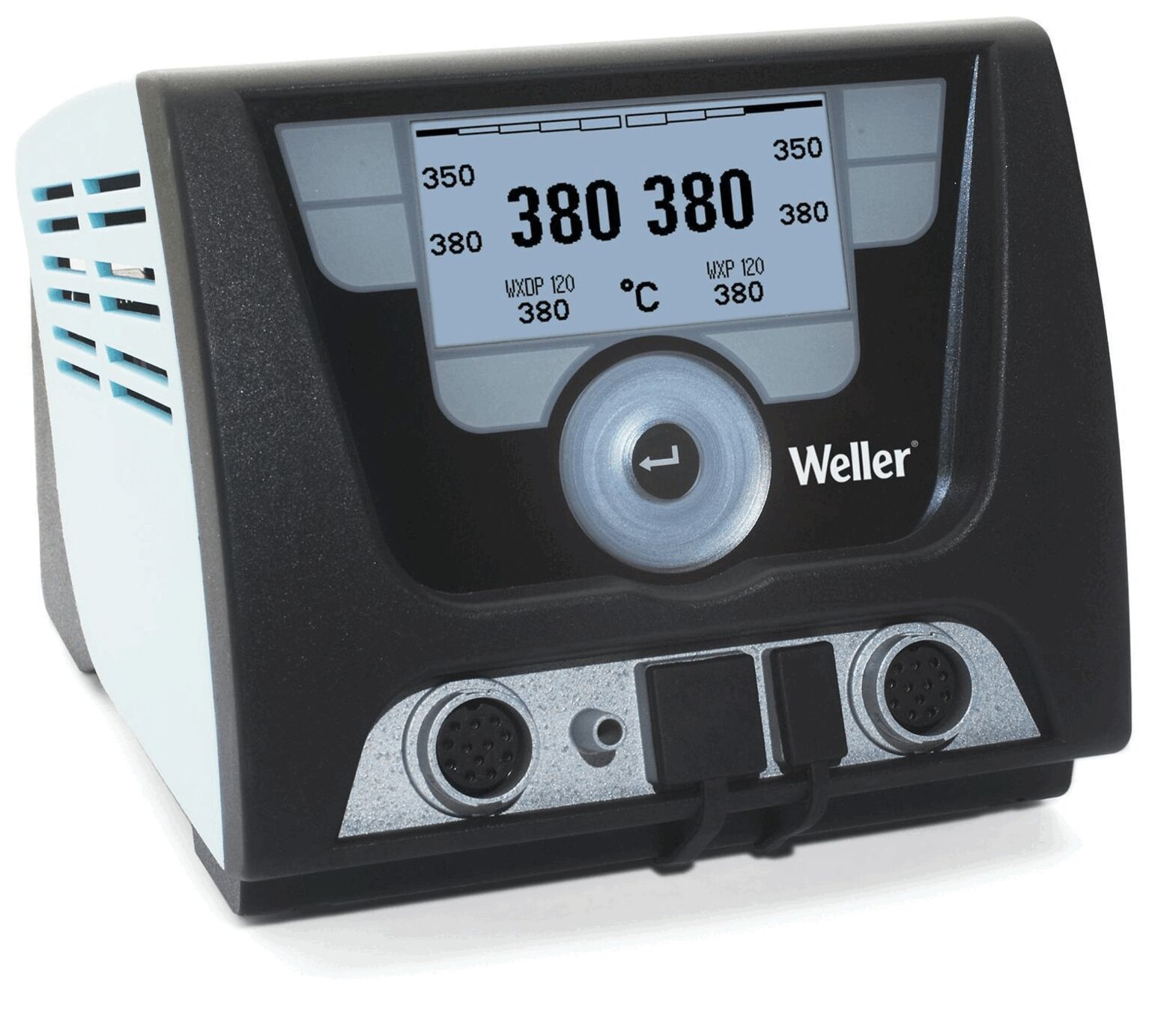

The image displays a soldering iron vacuum with a black and silver casing. In the center, there is a large digital display featuring temperature readings and control knobs.
WXD 2 supply unit
(Product No.: 534.263.99)
The image displays a soldering iron vacuum with a black and silver casing. In the center, there is a large digital display featuring temperature readings and control knobs.
Notice

WXD 2 supply unit

WXD 2 supply unit

dpvlink:
16453
Width [mm]:
154 mm
Height [mm]:
135 mm
Length [mm]:
174 mm
Channels:
2
Power:
200 / 255 W
Temperature range:
50 - 550 °C
Properties:
Further product information

at short notice at short notice
875,80 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

WXD 2 supply unit

WXD 2 - Supply Unit
The WXD 2 Supply Unit is a high-performance, digital soldering and desoldering station designed for use in electronics repair, prototyping, manufacturing, and training. It features two independent channels and automatic tool recognition for WX Tools, allowing for flexible application. The station provides precise temperature control and rapid heating of the desoldering iron within 40 seconds from 50°C to 350°C. The ergonomic control panel is equipped with an anti-static coated real glass rotary click wheel and a backlit graphic LC display, offering menu navigation in seven languages. The ESD-safe unit allows for easy setting of soldering and desoldering parameters through its digital control technology and patented glass display, reducing rework and lowering operating costs through extended life of desoldering nozzles.

Technical Specifications:
  • Dimensions: 170 x 151 x 130 mm (L x W x H)
  • Weight: approx. 3.2 kg
  • Power supply: 230 V, 50 Hz
  • Power consumption: 200 W (255W)
  • Temperature range: 50 °C - 550 °C, tool-dependent
  • Temperature accuracy: ± 9 °C
  • Temperature stability: ± 2 °C
  • Compressed air: Input pressure 400 - 600 kPA (58-87 psi), oil-free, dry compressed air
  • Compressed air converter: Air consumption 35l/min, max. vacuum 55kPA (8 psi)
  • Compressed air connection: Outer diameter 6 mm
  • Potential equalization: Via 3.5 mm jack socket on the back of the device
  • Housing material: Aluminum base with anti-static black coating; anti-static plastic housing.
    Item number: 534.263.99
    • Width [mm]
    Width
    154 mm
    Height [mm]
    Height
    135 mm
    Length [mm]
    Length
    174 mm
    Channels
    Channels
    2
    Power
    Power
    200 / 255 W
    Temperature range
    Temperature range
    50 - 550 °C
    Automatic tool detection
    Automatic tool detection ensures that soldering stations and other systems identify the connected tool and make the optimum settings automatically.
    yes
    Voltage
    Voltage
    230 V
    Working pressure
    Working pressure
    4 - 6 bar
    ESD
    ESD
    yes
    Flow rate max. per minute
    Flow rate max. per minute
    35 l
    Temperature accuracy +/-
    Temperature accuracy +/-
    9 °C
    Temperature stability +/-
    Temperature stability +/-
    2 °C
    Vacuum
    Vacuum
    0.7
    Weight
    Weight
    3.8 kg
