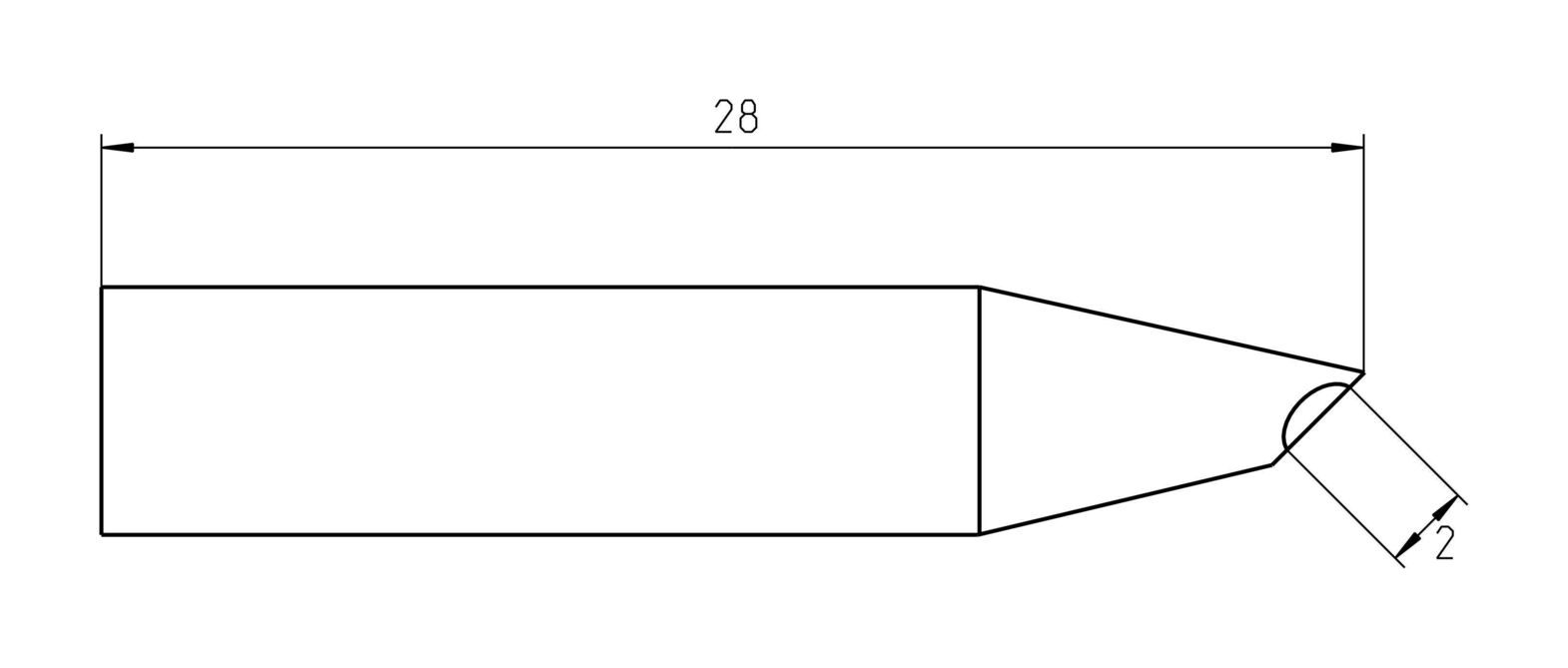

The image displays a rectangular shape with a length of 28 units and a narrow tip with a diameter of 2 units. The tip is rounded.
The image shows a silver plug with a black rubber grip. The plug has three grooves and a tip that is straight and sharp, ideal for audio cable connections.
Preview: The image shows a screwdriver with a non-slip, black rubber handle and a metallic blade. The blade has a pointed shape for precise work.
Preview: The image displays a rectangular shape with a length of 28 units and a narrow tip with a diameter of 2 units. The tip is rounded.
Preview: The image shows a silver plug with a black rubber grip. The plug has three grooves and a tip that is straight and sharp, ideal for audio cable connections.
Gullwing tip RTU 020 G MS
(Product No.: 501.065.99)
The image shows a screwdriver with a non-slip, black rubber handle and a metallic blade. The blade has a pointed shape for precise work.
The image displays a rectangular shape with a length of 28 units and a narrow tip with a diameter of 2 units. The tip is rounded.
The image shows a silver plug with a black rubber grip. The plug has three grooves and a tip that is straight and sharp, ideal for audio cable connections.
Mobile Preview: The image shows a screwdriver with a non-slip, black rubber handle and a metallic blade. The blade has a pointed shape for precise work.
Mobile Preview: The image displays a rectangular shape with a length of 28 units and a narrow tip with a diameter of 2 units. The tip is rounded.
Mobile Preview: The image shows a silver plug with a black rubber grip. The plug has three grooves and a tip that is straight and sharp, ideal for audio cable connections.
Notice

Gullwing tip RTU 020 G MS

Gullwing tip RTU 020 G MS

dpvlink:
25615
Ø:
2.0 mm
Properties:
Further product information

at short notice at short notice
40,20 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Gullwing tip RTU 020 G MS

The Weller soldering tip RTU 020 G MS is specifically designed for use with the WXUP MS soldering iron and meets the strict MIL-SPEC standards according to MIL-STD-2000. This high-quality soldering tip from the RTU series features a GULLWING shape with a diameter of 2.0 mm and a length of 28 mm. The MIL-SPEC version is distinguished by additional grounding insulation, which effectively prevents interference frequencies, thus offering higher reliability and precision in soldering. This special insulation makes the RTU 020 G MS incompatible with conventional handpieces and requires the use of the specific WXUP MS soldering iron. Ideal for technical applications where precision and compliance with military standards are required.
Ø
Ø
2.0 mm
Length
Length
28 mm
Soldering tip series
Soldering tip series
RTU
Soldering tip shape
Soldering tip shape
gullwing
suitable soldering iron
suitable soldering iron
WXUP MS
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 615
Complete Catalog 2023 - 2024

Product Family

RTU - Gullwing tip MS

Article image
Article description
Ø
Price
Compare
501.065.99 - Gullwing tip RTU 020 G MS
501.065.99
Gullwing tip RTU 020 G MS
2.0 mm
40,20 EUR
