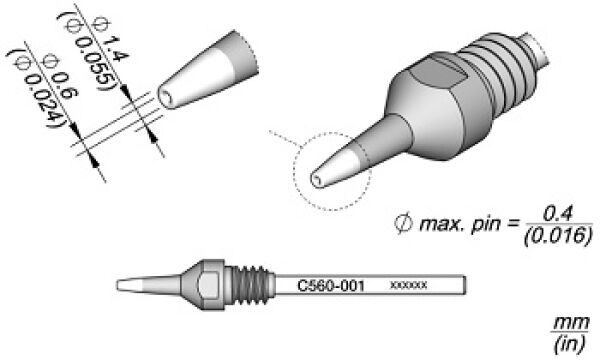

The image displays a technical drawing of a nozzle element. It consists of a cylindrical body with a narrow, pointed end and includes measurements of diameters and a part number.
Desoldering nozzle C560-001
(Product No.: JBC-C560-001)
The image displays a technical drawing of a nozzle element. It consists of a cylindrical body with a narrow, pointed end and includes measurements of diameters and a part number.
Notice / Inquire

Desoldering nozzle C560-001

dpvlink:
25943
Further product information

at short notice at short notice
25,00 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Desoldering nozzle C560-001

The JBC C560-001 desoldering nozzle is specifically designed for the DR560 desoldering iron and allows for precise desoldering of pins with a maximum diameter of 0.4 mm. This nozzle is characterized by its excellent heat transfer and durability, making it an ideal choice for professional technicians and electronics engineers. The C560-001 features a screw thread that ensures easy and secure attachment to the iron. Thanks to the variety of shapes and sizes that JBC offers for this series of nozzles, users can select the nozzle that best suits their specific needs. Compatibility with other JBC desoldering stations extends the range of applications for this high-quality desoldering nozzle.
Show accessories
Accessories

Accessories

The image shows a black soldering device with a long, narrow body and a silver soldering tip. There are switches and a transparent display on the side. Two cables extend from the device.
DR560-A desoldering iron
JBC DR560-A desoldering iron >>Modular Line<<
-DR560-A micro desoldering iron 24V - 160 Watt
-C560-003 desoldering tip
dpvlink
20505

505,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

JBC Desoldering nozzle series 560 for DR560

The JBC C560 desoldering nozzles offer a variety of shapes and sizes, excellent heat transfer and durability. They are an excellent choice for professional technicians and electronics engineers who need to perform precise and efficient desoldering work. The C560 desoldering nozzles are compatible with JBC desoldering stations and irons, especially with DR560 desoldering irons. They have a screw thread and are available in different versions for different component sizes
