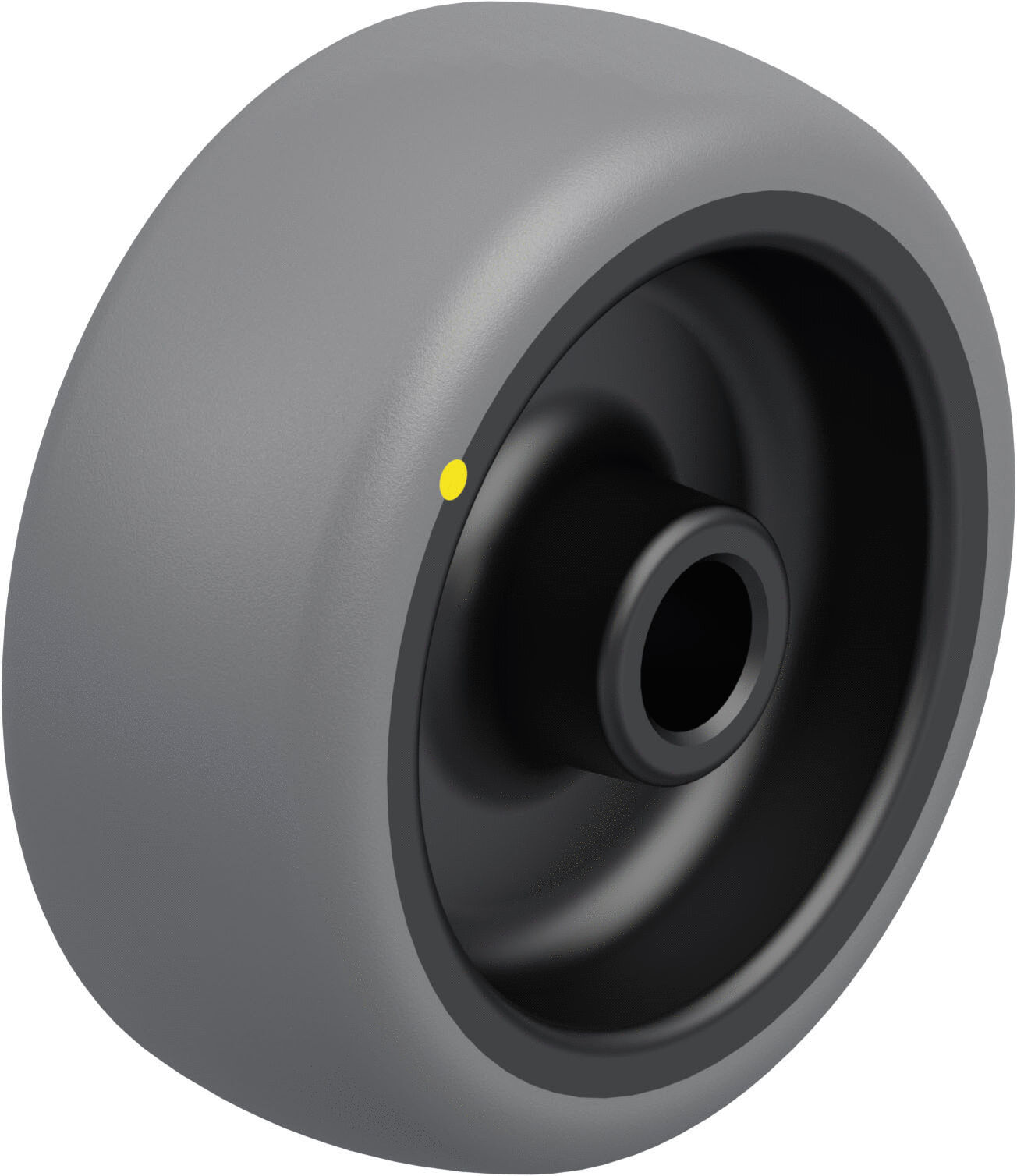

The image shows a gray wheel with a black interior. It has a smooth surface and a hole in the center. Additionally, there is a small yellow dot on the outer surface.
ESD Wheel with thermoplastic rubber tread 600, load capacity 165 kg
(Product No.: 622.080.ELS)
The image shows a gray wheel with a black interior. It has a smooth surface and a hole in the center. Additionally, there is a small yellow dot on the outer surface.

ESD Wheel with thermoplastic rubber tread 600, load capacity 165 kg

ESD Wheel with thermoplastic rubber tread 600, load capacity 165 kg

dpvlink:
8028
Wheel Ø:
80 mm
Wheel width:
32 mm
axle hole:
12 mm
Hub length:
35 mm
Load capacity :
90 kg
Properties:
Further product information

chevron-down
available available

Compare Compare
Notice / Inquire
Product Info

ESD Wheel with thermoplastic rubber tread 600, load capacity 165 kg

The ESD wheel from Blickle features a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A, which provides low rolling and swiveling resistance. The gray, non-marking tread is firmly bonded to the wheel body made of impact-resistant polypropylene, which is black. This wheel has a load capacity of 165 kg under static load and 65 kg under dynamic load.
The dimensions include a diameter of 80 mm with a wheel width of 32 mm, a hub length of 35 mm, and an axle hole of 12 mm. The weight is 100 g. The chemical resistance is high against many aggressive media and the temperature resistance ranges from -20 °C to +60 °C, although the load capacity is reduced at temperatures above +30 °C.
The wheel meets the ESD standard DIN EN 61340-5-1 and is conductive, equipped with a plain bearing, making it ideal for applications where electrostatic discharge poses a risk.
Wheel Ø
Wheel Ø
80 mm
Wheel width
Wheel width
32 mm
axle hole
axle hole
12 mm
Hub length
Hub length
35 mm
Load capacity
Load capacity
90 kg
Wheel bearing
Wheel bearing
plain bearing
Wheel/castor type
Wheel/castor type
wheel
Color
Color
black
Conductivity
Conductivity
conductive
Load capacity (static)
Load capacity (static)
165 kg
Load capacity when moving
Load capacity when moving
65 kg
Shore hardness
Shore hardness
85 Shore A
Tread
Tread
rubber, thermoplastic
ESD
ESD
yes
Temperature resistance
Temperature resistance
-20 - 60 °C
Weight
Weight
100 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a white, cylindrical plastic tube. It is smooth and has a silver edge on one side, making the interior appear hollow.
Axle tube length: 37 mm
Axle tube / sleeve 12 mm to 8 mm
Length: 37 mm
dpvlink
8032

0,55 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 381
Complete Catalog 2023 - 2024

Product Family

ESD Wheels, non-marking

Thread

  • high-quality thermoplastic rubber elastomer (TPE), hardness 85 Shore A
  • low rolling and swivel resistance
  • color grey, non-marking
  • material-locking, non-detachable connection with the wheel body


Wheel body

  • high-quality polypropylene, unbreakable
  • color black

Other properties

  • Very high chemical resistance to many aggressive media
  • Temperature resistance: -20 °C to +60 °C, reduced load-bearing capacity above +30 °C

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
Wheel Ø
Wheel width
axle hole
Hub length
Load capacity
Price
Compare
622.080.ELS - ESD Wheel with thermoplastic rubber tread 600, load capacity 165 kg
622.080.ELS
ESD Wheel with thermoplastic rubber tread 600, load capacity 165 kg
80 mm
32 mm
12 mm
35 mm
90 kg
-
622.100.ELS - ESD Wheel with thermoplastic rubber tread 600, load capacity 175 kg
622.100.ELS
ESD Wheel with thermoplastic rubber tread 600, load capacity 175 kg
100 mm
32 mm
12 mm
45 mm
100 kg
6,45 EUR
622.125.ELS - ESD Wheel with thermoplastic rubber tread 600, load capacity 200 kg
622.125.ELS
ESD Wheel with thermoplastic rubber tread 600, load capacity 200 kg
125 mm
32 mm
12 mm
45 mm
110 kg
8,65 EUR
