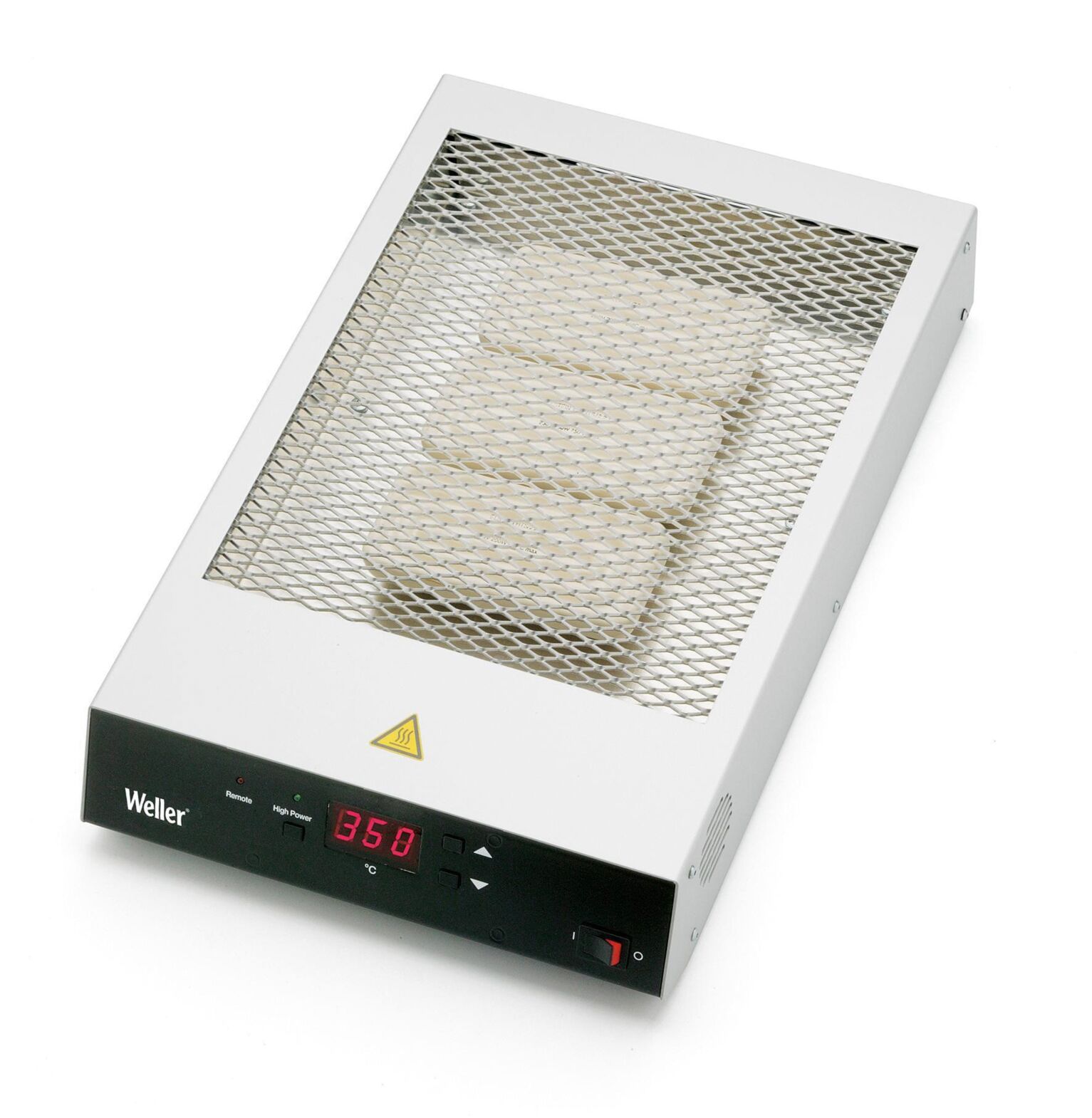

The image shows an electrical device with a rectangular casing. At the top is a grid, beneath which lie three uniform objects. On the front, there is a digital display.

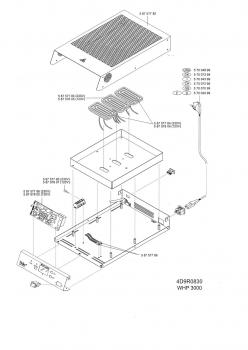

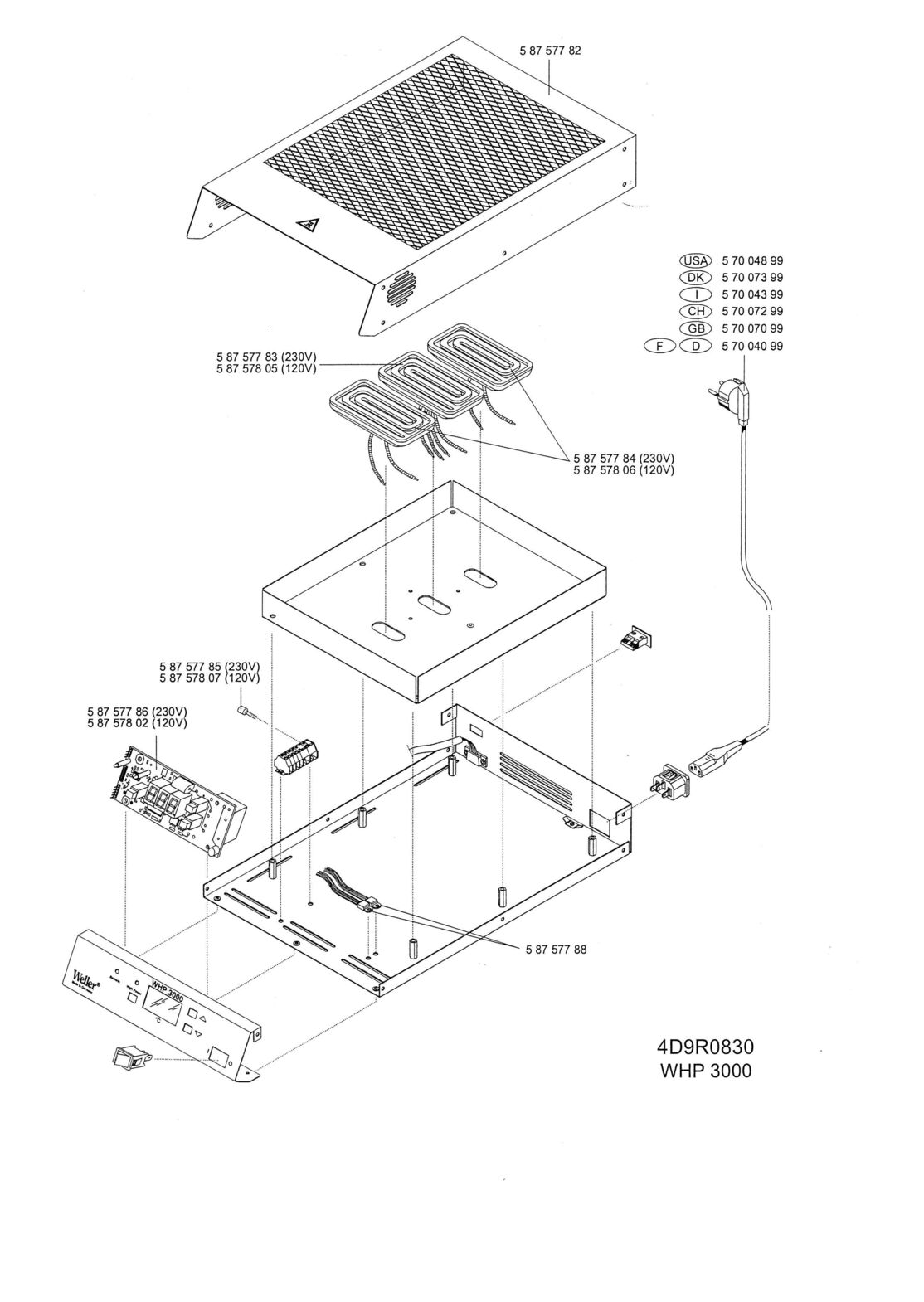

The image shows an exploded view of a device. Individual components are highlighted in color, including a casing, heating elements, and connection cables. Numbers refer to parts.

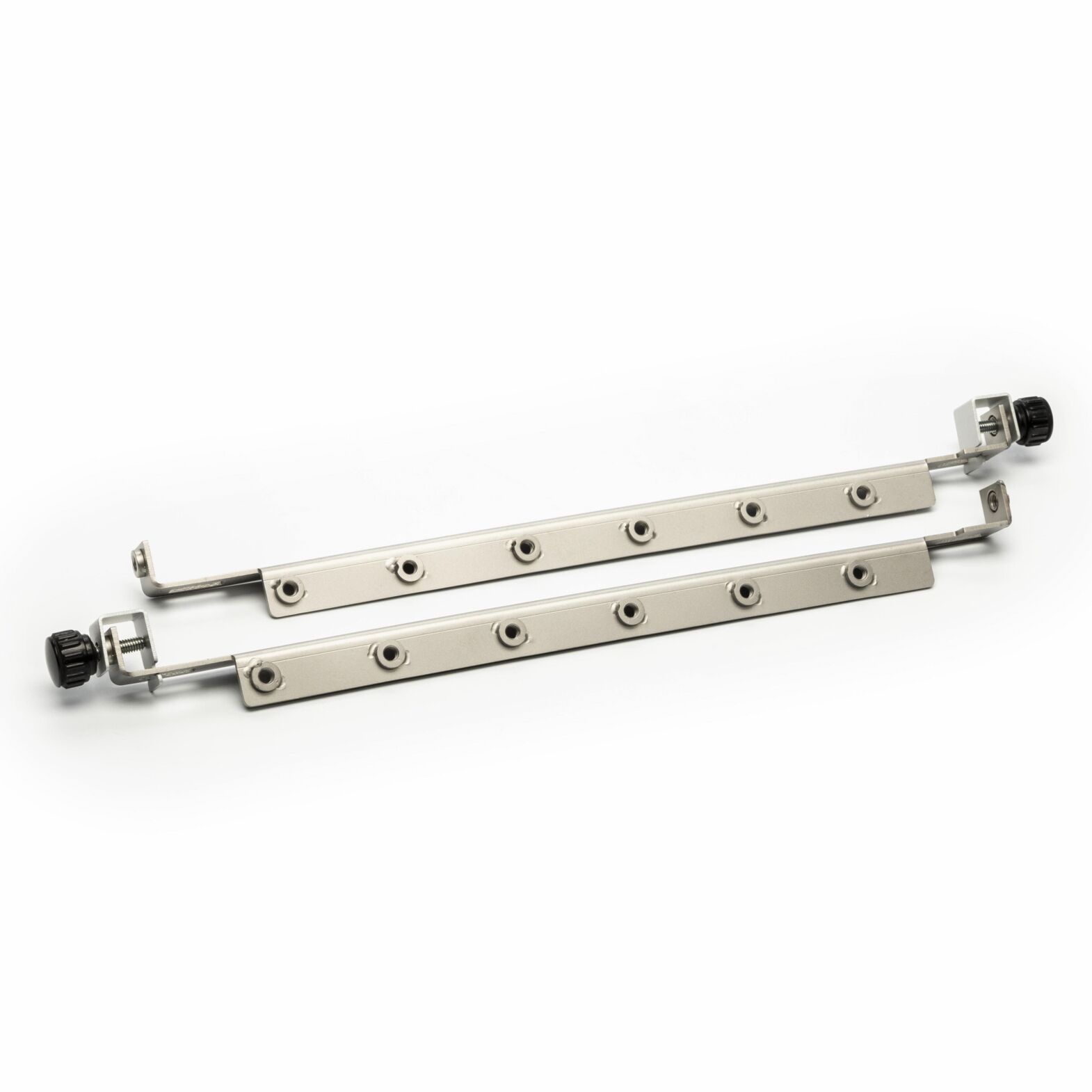

The image shows two parallel, narrow metal strips with several holes. They are curved at the ends and equipped with knobs for fastening or adjusting.
Preview: The image shows an electrical device with a rectangular casing. At the top is a grid, beneath which lie three uniform objects. On the front, there is a digital display.
Preview: The image shows an exploded view of a device. Individual components are highlighted in color, including a casing, heating elements, and connection cables. Numbers refer to parts.
Preview: The image shows two parallel, narrow metal strips with several holes. They are curved at the ends and equipped with knobs for fastening or adjusting.
WHP 3000 Infrared heating plate 600W
(Product No.: 533.386.99)
The image shows an electrical device with a rectangular casing. At the top is a grid, beneath which lie three uniform objects. On the front, there is a digital display.
The image shows an exploded view of a device. Individual components are highlighted in color, including a casing, heating elements, and connection cables. Numbers refer to parts.
The image shows two parallel, narrow metal strips with several holes. They are curved at the ends and equipped with knobs for fastening or adjusting.
Mobile Preview: The image shows an electrical device with a rectangular casing. At the top is a grid, beneath which lie three uniform objects. On the front, there is a digital display.
Mobile Preview: The image shows an exploded view of a device. Individual components are highlighted in color, including a casing, heating elements, and connection cables. Numbers refer to parts.
Mobile Preview: The image shows two parallel, narrow metal strips with several holes. They are curved at the ends and equipped with knobs for fastening or adjusting.
Notice / Inquire

WHP 3000 Infrared heating plate 600W

dpvlink:
9624
Power:
600 W
heated surface:
120 x 190 mm
Temperature range:
50 - 400 °C
Properties:
Further product information

at short notice at short notice
1.522,80 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WHP 3000 Infrared heating plate 600W

The WHP 3000 infrared preheating plate by Weller is a highly specialized tool for professional electronics workshops and laboratories, designed to meet the demands of challenging soldering and repair tasks. With a power of 600 W and a heated area of 120 x 190 mm, this device enables precise and efficient heating of large circuit boards and electronic components.
Equipped with three high-temperature infrared emitters, the preheating plate offers fast heating times and uniform heat distribution. Temperature control is managed digitally via a display that shows both set and actual temperatures between 50 °C and 400 °C. Additionally, the digital control electronics allow for precise control of the two selectable heating zones. For extended functionality, an external sensor can be connected, and through an RS 232 interface, the device can be linked and controlled with the WHA 3000 hot air station.
The robust construction of the WHP 3000 ensures durability and ESD safety, making it an indispensable addition to any electronics workspace. With dimensions of 395 mm width, 70 mm height, and 254 mm length, the preheating plate is compact and easily integrated into any work environment.
Power
Power
600 W
heated surface
heated surface
120 x 190 mm
Temperature range
Temperature range
50 - 400 °C
Height
Height
70 mm
Length
Length
254 mm
Width
Width
395 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 610
Complete Catalog 2023 - 2024

Product Family

Infrared preheating plate for WHA 3000

 The WHP 3000 infrared preheating plate is a powerful and reliable tool that has been specially developed for demanding soldering and repair work in professional electronics workshops and laboratories. With its advanced infrared technology, precise temperature control and robust design, it is ideal for preheating large circuit boards and electronic components. It helps to improve soldering quality and reduce thermal damage and is a valuable addition to any electronics workstation.

  • Preheating plates with different power 600 or 1200 W
  • Heated surface 190 x 245 mm or 120 x 190 mm
  • Digital display for set and actual temperature
  • Digital control electronics
  • 3 infrared high temperature radiators for fast and efficient heating
  • 2 heating zones selectable
  • External sensor (accessory) can be connected
  • RS 232 interface for connection to WHA 3000 hot air station (control via WHA 3000P)
  • ESD-safe

Article image
Article description
Power
heated surface
Temperature range
Price
Compare
533.386.99 - WHP 3000 Infrared heating plate 600W
533.386.99
WHP 3000 Infrared heating plate 600W
600 W
120 x 190 mm
50 - 400 °C
1.522,80 EUR
533.646.99 - WHP 3000 Infrared heating plate 1200W
533.646.99
WHP 3000 Infrared heating plate 1200W
1200 W
190 x 245 mm
50 - 400 °C
1.981,30 EUR
