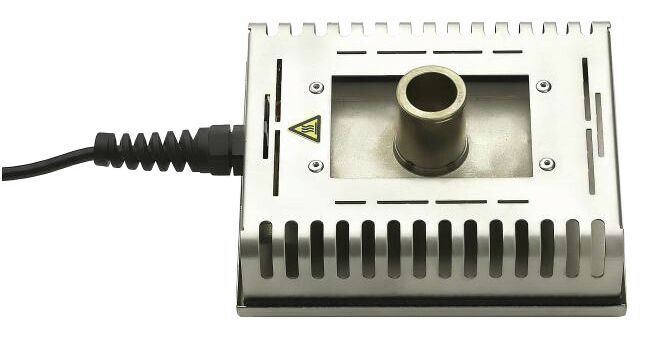

The image shows a metallic device with a round, hollow center. It has cooling fins on the sides and is connected to a cable. It might be a technical device.
Soldering bath WSB 80
(Product No.: 527.040.99)
The image shows a metallic device with a round, hollow center. It has cooling fins on the sides and is connected to a cable. It might be a technical device.
Notice

Soldering bath WSB 80

Soldering bath WSB 80

dpvlink:
3819
Further product information

at short notice at short notice
383,80 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Soldering bath WSB 80

Soldering Bath WSB 80
The Weller WSB 80 soldering bath is a high-performance tool for professional electronics workshops and laboratories. It is excellent for tinning and de-tinning wires and circuit boards, thus improving soldering quality and efficiency. This model is compatible with all Weller 80 W stations and supports both lead-free and conventional solders. The robust construction and chemically resistant solder bath ensure durability and reliability. An integrated thermostat maintains constant temperatures, while the overheating protection guarantees safe operation. The compact design allows for easy handling and space-saving storage.

Technical Specifications:
  • Dimensions: 150 x 120 x 70 mm (LxHxW)
  • Solder bath: Depth = 25 mm, Inner Ø = 20 mm
  • Operating voltage: 24 V
  • Power: 80 W
  • Warm-up time: approx. 7 min. (50°C - 350°C)
  • Temperature range: 50°C - 450°C
  • Compatible with: WS 81, WSF 81D8, WTSF 80
    • Power
    Power
    80 W
    Voltage
    Voltage
    24 V
    Height [mm]
    Height
    70 mm
    Length [mm]
    Length
    150 mm
    Width [mm]
    Width
    120 mm
    Temperature range
    Temperature range
    50 - 450 °C
    Documents

    Downloads

    Please log in to download datasheets! :
    There are several datasheets for this product. Please log in!

    Catalogues

    Page: 610
    Complete Catalog 2023 - 2024

    Product Family

    Article image
    Article description
    Power
    Voltage
    Height [mm]
    Length [mm]
    Width [mm]
    Temperature range
    Price
    Compare
    527.040.99 - Soldering bath WSB 80
    527.040.99
    Soldering bath WSB 80
    80 W
    24 V
    70 mm
    150 mm
    120 mm
    50 - 450 °C
    383,80 EUR
