Cutting and bending machine TP 6/1.97 - standard
Cutting and Bending Machine TP 6/1.97 - standard
The Cutting and Bending Machine TP 6/1.97 - standard is specifically designed for the efficient processing of taped, axial components. This machine is characterized by its robust construction, which ensures high reliability in operation. Thanks to the simplified bending radius adjustment, setup times can be significantly reduced, thus increasing productivity. It is capable of processing wire diameters from 0.4 mm to 1.3 mm. Setting different dimensions is quick and uncomplicated.
Technical Data:
- Capacity: approx. 50,000 components per hour
- Dimensions: 230 x 180 x 210 mm
- Weight: 5 kg
- Belt hole grid P: 6.5 - 60 mm
- Minimum/maximum component length B: 4 - 13 mm
- Minimum/maximum wire diameter d: 0.4 - 1.3 mm
- c min: 1.2 mm
- L max: 50 mm
- D: 0.4 - 16 mm
This machine is an ideal solution for applications that require precision and efficiency in component processing.
The Cutting and Bending Machine TP 6/1.97 - standard is specifically designed for the efficient processing of taped, axial components. This machine is characterized by its robust construction, which ensures high reliability in operation. Thanks to the simplified bending radius adjustment, setup times can be significantly reduced, thus increasing productivity. It is capable of processing wire diameters from 0.4 mm to 1.3 mm. Setting different dimensions is quick and uncomplicated.
Technical Data:
- Capacity: approx. 50,000 components per hour
- Dimensions: 230 x 180 x 210 mm
- Weight: 5 kg
- Belt hole grid P: 6.5 - 60 mm
- Minimum/maximum component length B: 4 - 13 mm
- Minimum/maximum wire diameter d: 0.4 - 1.3 mm
- c min: 1.2 mm
- L max: 50 mm
- D: 0.4 - 16 mm
This machine is an ideal solution for applications that require precision and efficiency in component processing.
Details

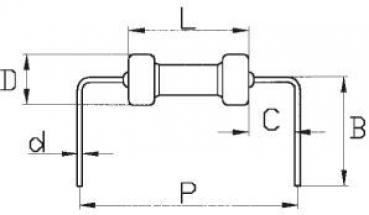

- Body diameter D Body diameter D
- 0.4 - 16 mm
- Component body length L Component body length L
- 50 mm
- Lead diameter d Lead diameter d
- 0.4 - 1.3 mm
- Measure bending / lead end B Measure bending / lead end B
- 4 - 13 mm
- Measure component's body / bending c Measure component's body / bending c
- 1.2 mm
- Tape pitch pattern P Tape pitch pattern P
- 6.5 - 60 mm
- Components per hour Components per hour
- 50,000
- Height [mm] Height [mm]
- 210
- Length [mm] Length [mm]
- 230
- Width [mm] Width [mm]
- 180
- Weight Weight
- 5.0 kg
Show accessories
Cutting and bending machine for axial components,
version type 97 with simplified bending wheel adjustment
Cutting and bending machine TP 6.97 standard
With the cutting and bending machine TP 6 taped axial components can be cut and bent. The robust construction of the machine ensures a high level of reliability.
Components with leads up to a diameter of 1.3 mm can be processed. The setting of various dimensions is quick and easy.
Version TP 6 /....97
The TP 6 /....97 is in addition equipped with a simplified bending wheel adjustment reducing considerably the set-up times.
| Technical data | |
| Performance: | approx. 50,000 components per hour |
| Dimensions: | 230 x 180 x 210 mm |
| Weight: | 5 kg |
Accessories
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Product Family
Article image
Article description
Body diameter D
Component body length L
Lead diameter d
Measure bending / lead end B
Measure component's body / bending c
Tape pitch pattern P
Components per hour
Price
Compare
0.4 - 16 mm
50 mm
0.4 - 1.3 mm
4 - 13 mm
1.2 mm
6.5 - 60 mm
50,000
0.4 - 16 mm
50 mm
0.4 - 1.3 mm
4 - 13 mm
1.2 mm
6.5 - 60 mm
50,000
