Cutting and bending machine TP 6 / V-PR (P = 2.54 mm) standing assembly

(Product No.: 415.500)

Mobile Preview: Image

Mobile Preview: Image

(Product No.: 415.500)

Cutting and bending machine TP 6 / V-PR (P = 2.54 mm) standing assembly

ArticleNo: 415.500

dpvlink:

5274

Further product information

Availability: Delivery time!

Delivery time!

Delivery time!

4.810,00 EUR

1 PCE

Product Info

The cutting and bending machine TP 6 / V-PR from Olamef is specifically designed for processing taped axial components. This machine enables precise cutting and bending of connecting wires with diameters from 0.5 to 0.8 mm, while its bead device adds a bead for vertical mounting. With a capacity of up to 7,000 components per hour and an adjustable motor drive, available as an accessory, it offers high efficiency.

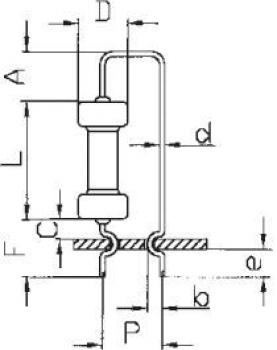

The machine measures 490 mm in length, 180 mm in width, and 220 mm in height, with a weight of 11 kg. The belt hole pitch has a fixed P-size of 2.54 mm. The minimum and maximum setting widths for various dimensions such as wire length and width ensure that a variety of component sizes can be precisely processed, making it an indispensable tool in technical procurement.

Details

Components per hour Components per hour: 7,000
Height [mm] Height [mm]: 220
Length [mm] Length [mm]: 490
Tape pitch pattern P Tape pitch pattern P: 2.54 mm
Width [mm] Width [mm]: 180
Weight Weight: 11 kg

Show accessories

Accessories

Accessories

Feeder / component body type 200240

Feeding / component body type 200240
for taped components
suitable for TP 6.EC / TP 6 / TP 6.97, TP6/PR-B,
TP6/PR-B/97, TP6/S

351,00 EUR

BR6 reel holder

BR6 reel holder

130,40 EUR

CS 10 feeding unit / loose components

CS 10 - feeding unit for loose components
for TP 6 + TP6/S + TP6/PR-B
(Model 51.0100 part number...)

1.284,00 EUR

CS 20 feeding unit / loose components

CS 20 - feeding unit for loose components
for TP 6/V-PR
(Model 51.0200 part number...)

1.383,00 EUR

CS 30 feeding unit / loose components

CS 30 - feeding unit for loose components
for TP/6V
(Model 51.0300 part number...)

1.264,00 EUR

CS 40 feeding unit, loose components

CS 40 - feeding unit for loose components
for TP 6/PR F
(Model 51.0400 part number...)

1.383,00 EUR

M adjustable motor drive

MOT-98 adjustable motor 220V
for TP 6 + S + R + R CP + V + PR B
(Model 7915030 art. no....)

1.759,00 EUR

M/1 adjustable motor drive

MOT-98/A adjustable motor 220V
for TP 6 / V - PR + TP 6 / PR - F
(Model 7915032 art. no....)

1.808,00 EUR

TNS/1 waste tape ejector

RA waste tape ejector TNS/11
for TP 6 + TP 6 / S + TP 6 / R + TP/6V + TP6/PR-B
(Model 21.0011)

378,80 EUR

TNS/13 waste tape ejector

RA waste tape ejector TNS/13
for TP 6 / V PR
(Model 21.0013)

378,80 EUR

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

Article image

Article description

Components per hour

Height [mm]

Length [mm]

Tape pitch pattern P

Width [mm]

Weight

Price

Compare

415.500 - Cutting and bending machine TP 6 / V-PR (P = 2.54 mm) standing assembly

415.500
Cutting and bending machine TP 6 / V-PR (P = 2.54 mm) standing assembly

7,000

220

490

2.54 mm

180

11 kg

415.505 - Cutting and bending machine TP 6 / V-PR (P = 5.08 mm)

415.505
Cutting and bending machine TP 6 / V-PR (P = 5.08 mm)

7,000

220

490

5.08 mm

180

11 kg
