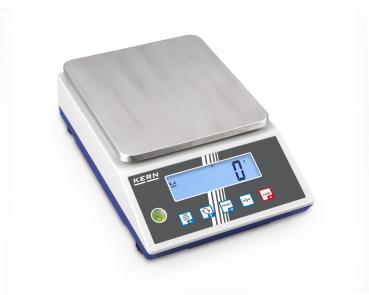

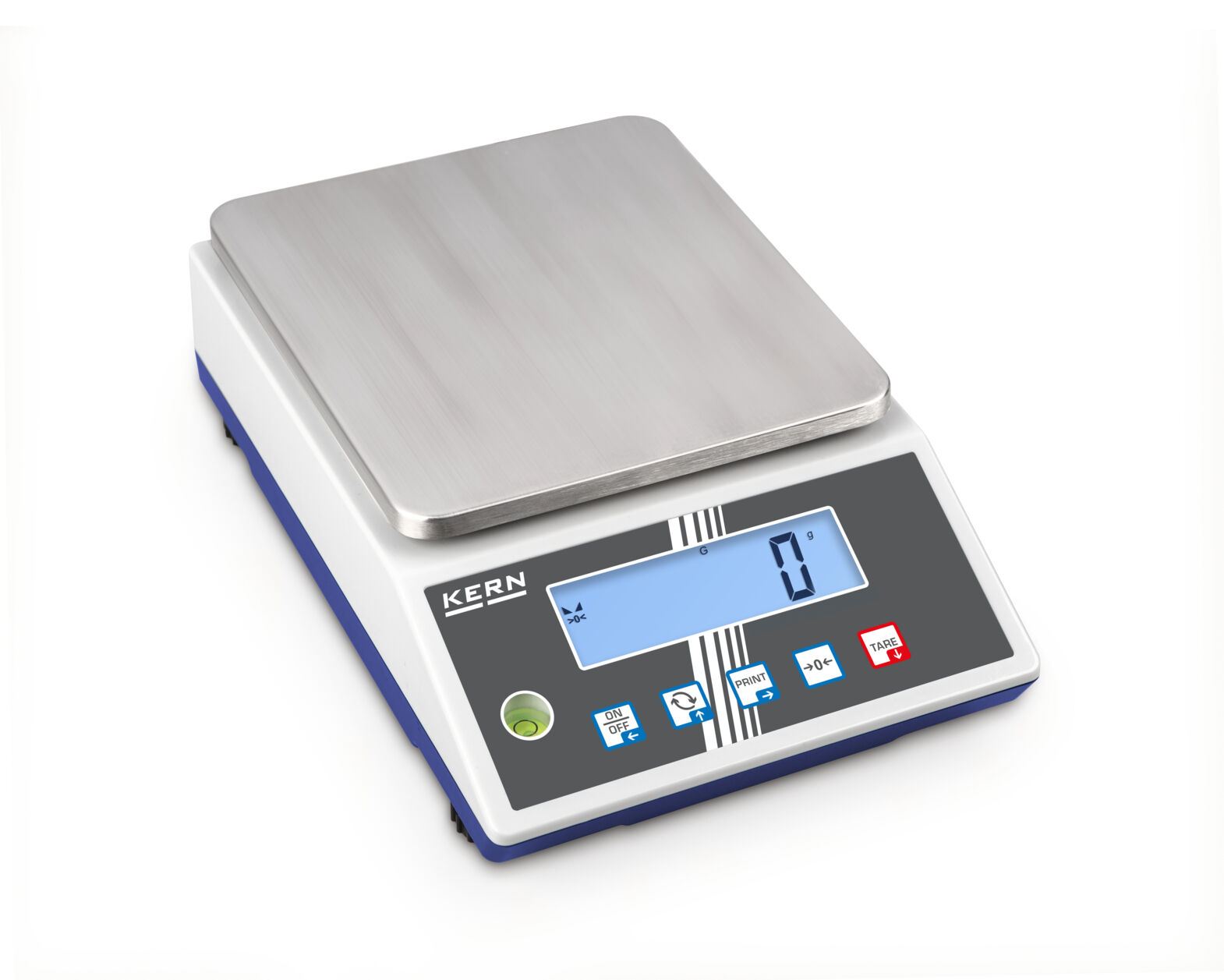

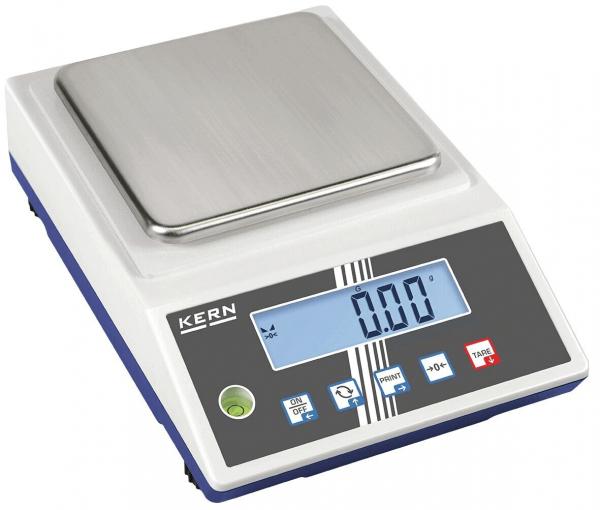

Precision balance KERN PCB 6000-1-2023e

(Product No.: 401.PCB6000-1-2023e)

Precision balance KERN PCB 6000-1-2023e

Name: Precision balance KERN PCB 6000-1-2023e
SKU: 401.PCB6000-1-2023e
Price: 252.00 EUR
Availability: InStock

ArticleNo: 401.PCB6000-1-2023e

Precision balance KERN PCB 6000-1-2023e

dpvlink:

27775

Properties:

Further product information

Availability: Delivery time!

Delivery time!

252,00 EUR

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

Precision balance KERN PCB 6000-1-2023e

The KERN PCB 6000-1-2023e precision scale, manufactured by Kern, is a high-quality measuring instrument distinguished by its precise technology and robust construction. With a readability and reproducibility of 0.1 g each, and a linearity of 0.3 g, this device provides accurate measurement results up to a maximum weighing range of 6000 g. The scale features a stainless steel weighing plate measuring 150 x 170 mm, making it particularly suitable for use in technical and scientific environments.
Integration into modern IT infrastructures is facilitated by the KERN Universal Port (KUP), which supports interfaces such as RS-232, USB, Bluetooth, WLAN, or Ethernet. This enables easy and fast data transfer and control of the scale via external devices. A special anti-shock system between the weighing plate and the load cell minimizes vibrations and contributes to faster and safer results. Optionally, the scale is available with a rechargeable battery that offers up to 48 hours of operation without backlighting and has a charging time of about 8 hours.
The scale is delivered without a calibration certificate, but can be equipped with various calibration options upon request.

Details

Linearity Linearity: 0.3 g
Min. weight Min. weight: 0.2 g
Readability Readability: 0.1 g
Repeatability Repeatability: 0.1 g
Weighing capacity Weighing capacity: 6000 g
Weighing plate [mm] Weighing plate [mm]: 150 x 170 mm

Pictograms

Adjusting program CAL

Adjusting program CAL: Adjusting program CAL: For quick setting up of the balance‘s accuracy. External adjusting weight required

GLP Printer

GLP/ISO log: With weight, date and time. Only with KERN printers

KCP

KERN Communication Protocol (KCP): It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital systems

Piece counting

Piece counting: Reference quantities selectable. Display can be switched from piece to weight

Totalising level A

Totalising level A: The weights of similar items can be added together and the total can be printed out

Percentage

Percentage determination: Determining the deviation in % from the target value (100 %)

Weighing units

Weighing units: Can be switched to e.g. nonmetric units. See balance mode.

Hold function

Hold function: (Animal weighing program) When the weighing conditions are unstable, a stable weight is calculated as an average value

Suspended weighing

Suspended weighing: Load support with hook on the underside of the balance

Weighing with tolerance range

Weighing with tolerance range: (Checkweighing) Upper and lower limits can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model

Battery operation

Battery operation: Ready for battery operation. The battery type is specified for each device

Universal plug-in power supply B

Universal plug-in power supply: with universal input and optional input socket adapters for EU, CH, GB, USA

Weighing principle

Weighing principle: Strain gauges Electrical resistor on an elastic deforming body

KERN Universal Port (KUP)

KERN Universal Port (KUP) allows the connection of external KUP interface adapters, e.g. RS-232, RS-485, SB, Bluetooth, WLAN, Analogue, Ethernet etc. for the exchange of data and control commands, without installation effort

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

IoT-Line Precision balance KERN PCB

Compatible with school-specific software solutions such as Vernier ® or LabQuest ® : data can be transferred to PC etc. for evaluation and visualization
Industry 4.0: The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adapters, such as RS-232, USB, Bluetooth, WLAN or Ethernet, for convenient data transfer to external devices as well as the possibility of sending control commands and data inputs to the scale.
Special anti-shock system between the weighing plate and the load cell reduces vibrations during weighing and thus ensures faster and safer weighing results
Battery operation (optional): rechargeable battery set intern, operating time 48 h (without backlighting), charging time approx. 8 h
