The image shows a blue machine with two funnels on top that dispenses small parts. On the side, there is an emergency stop switch and a control panel with buttons. The machine stands stable on a surface.
TP / TC 4 cutting machine
(Product No.: 415.910)
The image shows a blue machine with two funnels on top that dispenses small parts. On the side, there is an emergency stop switch and a control panel with buttons. The machine stands stable on a surface.
Notice / Inquire

TP / TC 4 cutting machine

TP / TC 4 cutting machine

dpvlink:
5335
Further product information

Delivery time! Delivery time!
3.450,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

TP / TC 4 cutting machine

The TP / TC 4 from Olamef is a high-performance cutting machine, specifically designed for precise cutting of loose radial components. This model allows for easy feeding and offers continuously adjustable processing speed, enabling flexible adaptation to various work requirements. The cutting lengths can be precisely adjusted thanks to an adjustable guide, leading to improved cutting quality.
The machine is characterized by its robust construction, which ensures reliable and long-lasting operation. For extended functionality, the BR 3 reel holder can be added as an option, which allows for the processing of taped components and can be easily attached to the machine.
Technically, the TP / TC 4 supports wire diameters from 0.4 to 0.8 mm and component body diameters of up to 1 mm. The length of the component body can vary between 3 and 12 mm, making the machine suitable for a variety of applications.
Wire thickness
Wire thickness
0.4 - 0.8 mm
Body diameter D
Body diameter D
1 mm
Component body length L
Component body length L
3 - 12 mm
Lead diameter d
Lead diameter d
0.4 - 0.8 mm
Show accessories
Accessories

Accessories

The image shows a machine with a blue casing. A movable arm with a black button and a chain leads to a large wheel. To the right, there is a red emergency stop button.
BR 3/12.7 tape guide for cutting machine...
BR 3 / 12.7 - TP/TC 4 tape guide
standard tape pitch P = 12.7 mm, complete
(Model 78.0001)
dpvlink
5335

461,00 EUR
Show product
The image shows a machine with a blue casing. A movable arm with a black button and a chain leads to a large wheel. To the right, there is a red emergency stop button.
BR 3/15 tape guide for cutting machine TC...
BR 3 / 15 - TP/TC 4, tape guide
tape pitch P = 15 mm, complete
(Model 78.0002)
dpvlink
5335

461,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 518
Complete Catalog 2023 - 2024

Product Family

TP / TC 4

Cutting machine for loose radial components

Loose radial components can be cut with the TC 4 cutting machine.

The feeding is easy and fast. The processing speed is steplessly adjustable. The cutting length can be set with the adjustable guide. The robust design ensures a reliable and durable operation.

Taped components can also be processed with the reel holder BR 3 (option). The reel holder is simply attached to the cutting machine.

Technical data

Performance:

approx. 3,000 components/hour
(in connection with BR 3 approx. 15,000 components/hour

Dimensions:

200 x 470 x 270 mm

Weight:

12 kg

Motor:

220 V / 50 Hz - 50 VA

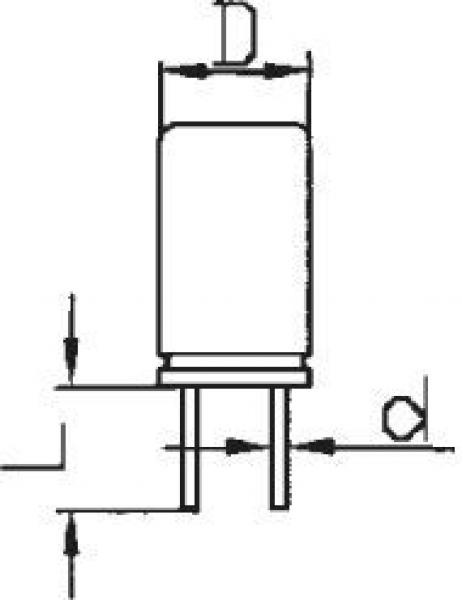

  L d D
 Min. mm 3 0.41
 Max. mm 12 0.815


Article image
Article description
Wire thickness
Body diameter D
Component body length L
Lead diameter d
Tape pitch pattern P
Price
Compare
415.910 - TP / TC 4 cutting machine
415.910
TP / TC 4 cutting machine
0.4 - 0.8 mm
1 mm
3 - 12 mm
0.4 - 0.8 mm

3.450,00 EUR
415.911 - BR 3/12.7 tape guide for cutting machine TC 4
415.911
BR 3/12.7 tape guide for cutting machine TC 4




12.7 mm
461,00 EUR
415.912 - BR 3/15 tape guide for cutting machine TC 4
415.912
BR 3/15 tape guide for cutting machine TC 4




15 mm
461,00 EUR
