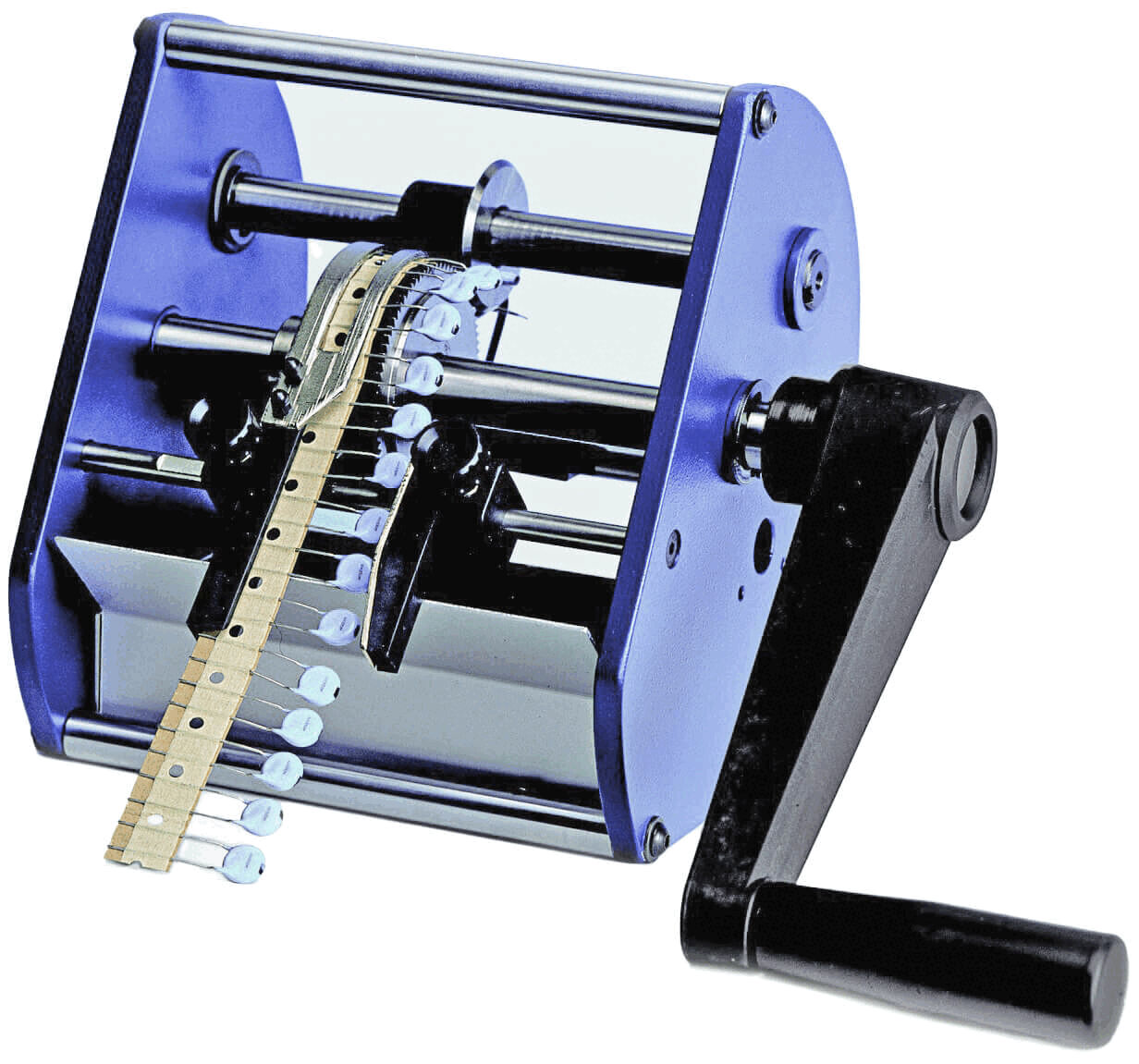

The image shows a manual machine with a large, rectangular casing and a crank. At the front, a flexible band runs through the machine, which has rotating mechanisms in the center.

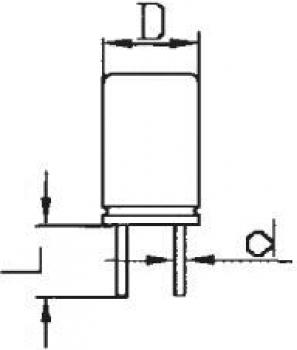

The image displays a technical drawing of a cylindrical component with two connections at the bottom end, and the labels "D" for diameter and "d" for another dimension.
Mobile Preview: The image shows a manual machine with a large, rectangular casing and a crank. At the front, a flexible band runs through the machine, which has rotating mechanisms in the center.
Mobile Preview: The image displays a technical drawing of a cylindrical component with two connections at the bottom end, and the labels "D" for diameter and "d" for another dimension.
Notice / Inquire

Cutting machine TP 6/R-EC standard P = 12.7 mm

dpvlink:
5124
Tape pitch pattern P :
12.7 mm
Version:
standard
Lead diameter d:
0.4 - 1 mm
Body diameter D:
1 - 14 mm
Component body length L:
2 - 10 mm
Further product information

Delivery time! Delivery time!
851,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Cutting machine TP 6/R-EC standard P = 12.7 mm

The TP 6/R-EC Standard cutting machine from Olamef is specifically designed for cutting taped radial components. This model is characterized by a simple structure without a protective hood and motor connection options, which simplifies handling and increases reliability. The machine processes wire gauges from Ø 0.4 to 1.0 mm and is designed for a tape hole pitch of 12.7 mm.
The technical specifications include a wire diameter of 0.4 to 1 mm and a component body diameter of 1 to 14 mm. The length of the component body can vary between 2 and 10 mm. These parameters ensure a flexible range of applications and precise cutting results. The standard version of the machine meets the high requirements of the TP 6 series, ensuring reliable performance.
This cutting machine is ideal for technical buyers who need a robust and efficient solution for processing electronic components.
Tape pitch pattern P
Tape pitch pattern P
12.7 mm
Version
Version
standard
Lead diameter d
Lead diameter d
0.4 - 1 mm
Body diameter D
Body diameter D
1 - 14 mm
Component body length L
Component body length L
2 - 10 mm
Wire thickness
Wire thickness
0.4 - 1.0 mm
Show accessories
Accessories

Accessories

The image shows a machine with metallic rollers processing a black roll with fine, parallel wires. Yellow bands hold the structure together.
Feeder / component body type 200240
Feeding / component body type 200240
for taped components
suitable for TP 6.EC / TP 6 / TP 6.97, TP6/PR-B,
TP6/PR-B/97, TP6/S
dpvlink
13342

370,00 EUR
Show product
The image shows a blue, cylindrical machine with a handle for turning. On the side, there are several small rollers and an adjustable pressure mechanism. It is presumably used for processing paper strips.
BR6 reel holder
BR6 reel holder
dpvlink
5524

137,40 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 10 feeding unit / loose components
CS 10 - feeding unit for loose components
for TP 6 + TP6/S + TP6/PR-B
(Model 51.0100 part number...)
dpvlink
5163

1.349,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 20 feeding unit / loose components
CS 20 - feeding unit for loose components
for TP 6/V-PR
(Model 51.0200 part number...)
dpvlink
5163

1.453,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 30 feeding unit / loose components
CS 30 - feeding unit for loose components
for TP/6V
(Model 51.0300 part number...)
dpvlink
5163

1.328,00 EUR
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 40 feeding unit, loose components
CS 40 - feeding unit for loose components
for TP 6/PR F
(Model 51.0400 part number...)
dpvlink
5163

1.453,00 EUR
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/1 waste tape ejector
RA waste tape ejector TNS/11
for TP 6 + TP 6 / S + TP 6 / R + TP/6V + TP6/PR-B
(Model 21.0011)
dpvlink
5525

398,40 EUR
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/13 waste tape ejector
RA waste tape ejector TNS/13
for TP 6 / V PR
(Model 21.0013)
dpvlink
5525

398,40 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 517
Complete Catalog 2023 - 2024

Product Family

TP 6 / R-EC cutting machines

Cutting machine for taped radial components

  • simple construction
  • no cover
  • no motor connection possible

Cutting machine TP 6/R-EC cuts taped radial components. Construction and reliability as with all TP 6 machines.

The two machines differ in the tape pitch pattern (P = 12.7 mm or 15 mm)

Technical data:

Performance:

approx. 20,000 components/hour

Dimensions:

230 x 180 x 210 mm

Weight:

4 kg

TP 6/R - EC - Standard

  L dD
 Min. mm 2 0.41
 Max. mm 10 114


Article image
Article description
Tape pitch pattern P
Version
Lead diameter d
Body diameter D
Component body length L
Price
Compare
415.600.EC - Cutting machine TP 6/R-EC standard P = 12.7 mm
415.600.EC
Cutting machine TP 6/R-EC standard P = 12.7 mm
12.7 mm
standard
0.4 - 1 mm
1 - 14 mm
2 - 10 mm
851,00 EUR
