DC1040 Digital dispenser - max. 4 bar
DC1040 Digital Dosing Device - max. 4 bar
The DC1040 digital dosing device is a state-of-the-art instrument for precise dosing applications. It features easy operation with buttons located to the left and right of the display, which clearly shows all relevant settings and monitoring information. The integrated teach-in function, program selection, and digital pressure monitoring enable efficient handling. The I/O port allows the device to be easily integrated into existing PLC systems.
Technical Features:
- Digital input pressure display
- 8 program slots
- Shot counter
- Fine pressure regulator
- Vacuum retention
- Pressure gauge for air output
- Precision pressure regulator
- Display with 128 x 64 pixels
- Status LEDs
- Control buttons
Technical Data:
- Dimensions: 260 x 75 x 220 mm (W x H x D)
- Weight: 1.5 kg
- Dosing duration: 0.01 - 999 seconds
- Operating mode: manual or time-controlled
- Input voltage: 85-264 V AC
- Working voltage: 24 V DC
- Air input pressure: 5 - 7 bar
- Air output pressure: 0.08 - 4 bar

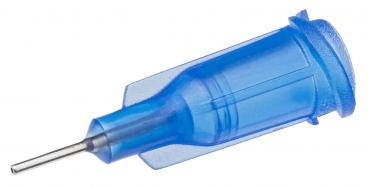

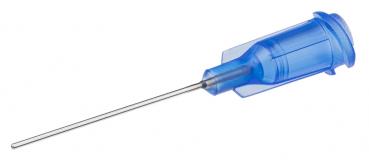

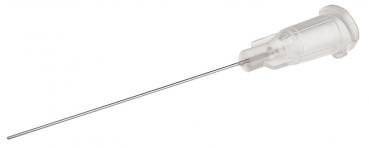

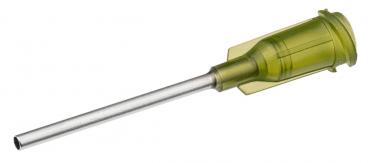

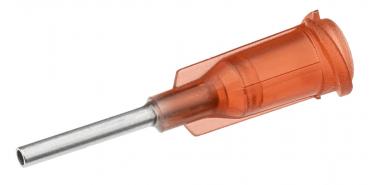

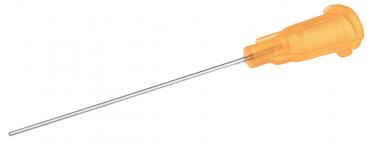

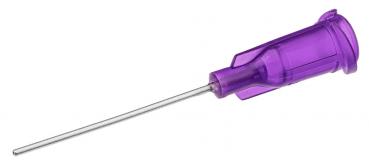

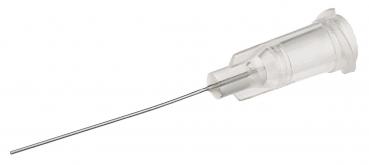

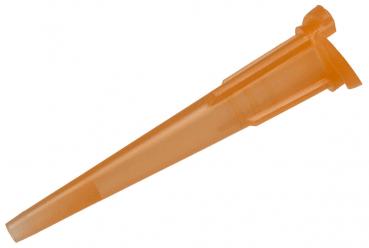

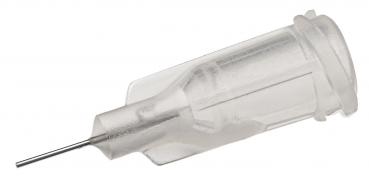

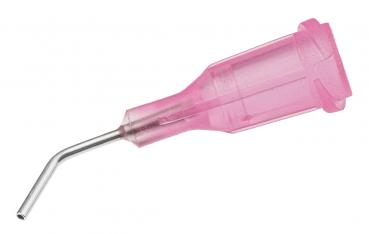

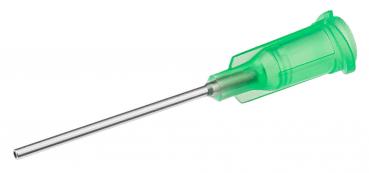

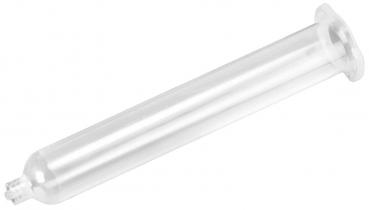

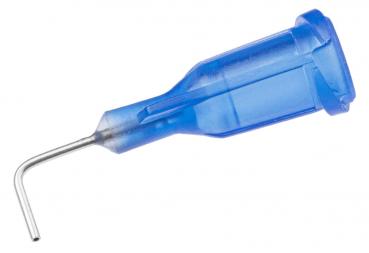

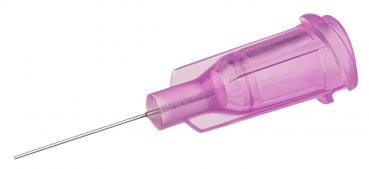

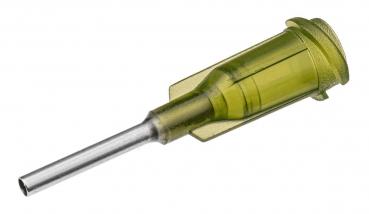

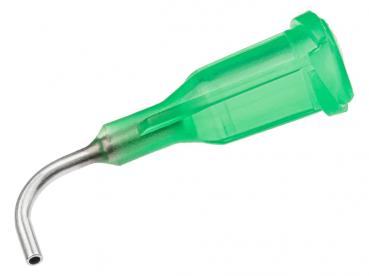

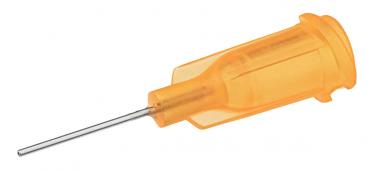

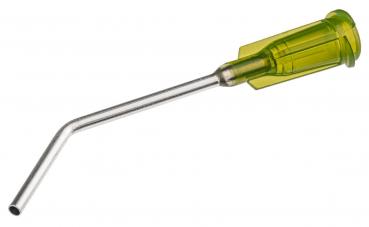

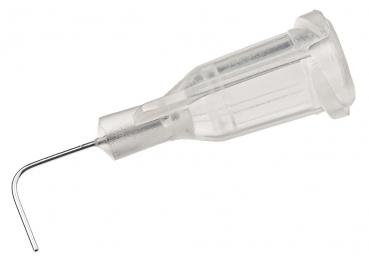

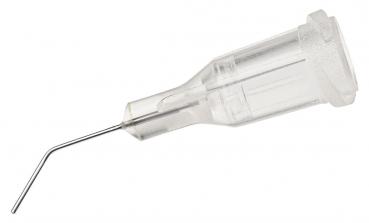

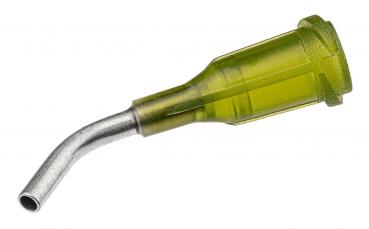

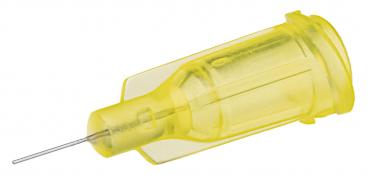

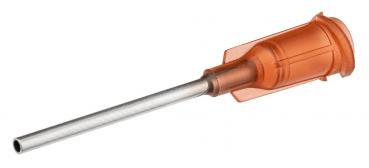

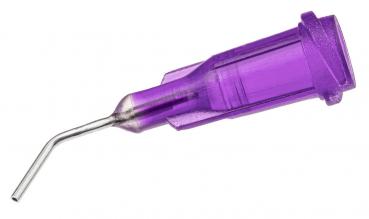

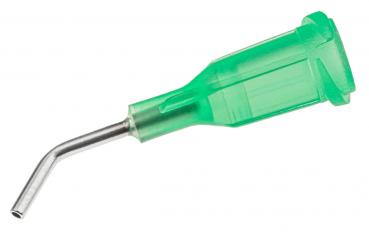

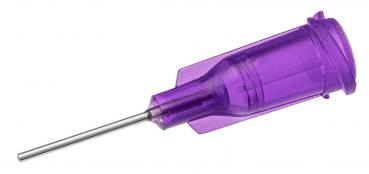

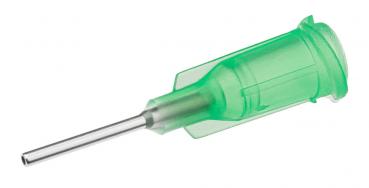

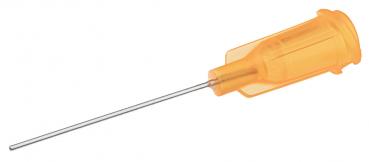

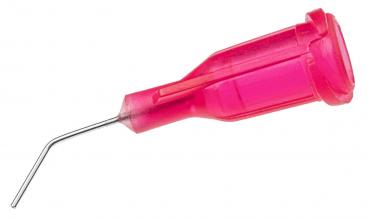

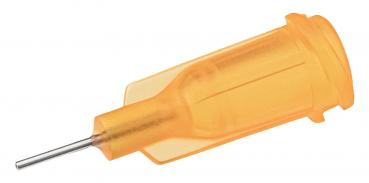

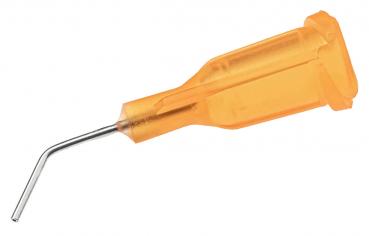

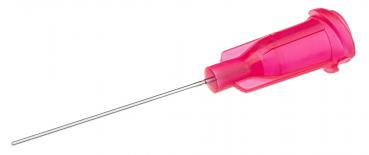

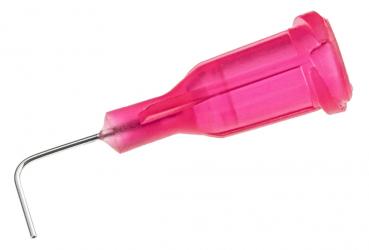

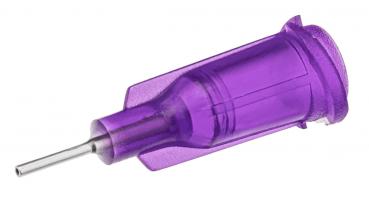

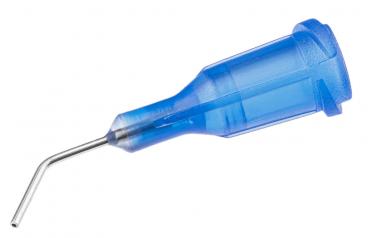

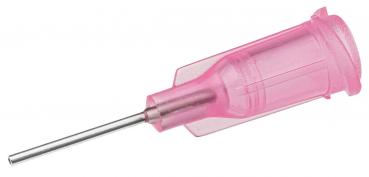

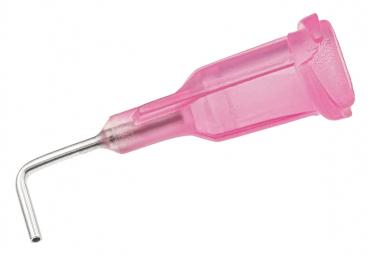

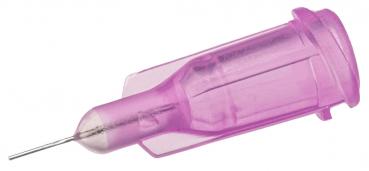

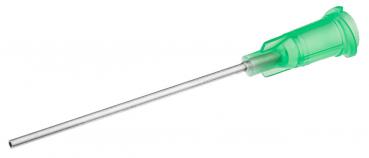

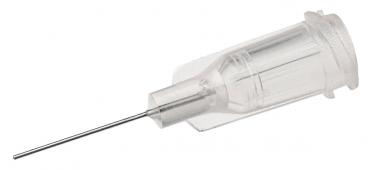

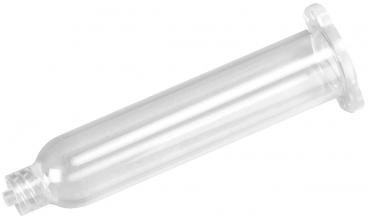

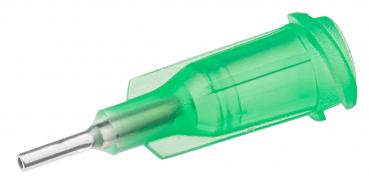

Included in the delivery are a foot switch, a cartridge holder, a connection hose for the air input, a 30cc cartridge adapter, three 30cc cartridges, three 30cc plugs, and a 134-piece dosing needle assortment.
The DC1040 digital dosing device is a state-of-the-art instrument for precise dosing applications. It features easy operation with buttons located to the left and right of the display, which clearly shows all relevant settings and monitoring information. The integrated teach-in function, program selection, and digital pressure monitoring enable efficient handling. The I/O port allows the device to be easily integrated into existing PLC systems.
Technical Features:
- Digital input pressure display
- 8 program slots
- Shot counter
- Fine pressure regulator
- Vacuum retention
- Pressure gauge for air output
- Precision pressure regulator
- Display with 128 x 64 pixels
- Status LEDs
- Control buttons
Technical Data:
- Dimensions: 260 x 75 x 220 mm (W x H x D)
- Weight: 1.5 kg
- Dosing duration: 0.01 - 999 seconds
- Operating mode: manual or time-controlled
- Input voltage: 85-264 V AC
- Working voltage: 24 V DC
- Air input pressure: 5 - 7 bar
- Air output pressure: 0.08 - 4 bar
Included in the delivery are a foot switch, a cartridge holder, a connection hose for the air input, a 30cc cartridge adapter, three 30cc cartridges, three 30cc plugs, and a 134-piece dosing needle assortment.
Details
- Input voltage Input voltage
- 85 - 264 V/AC
- Working voltage Working voltage
- 24 V/DC
- Height [mm] Height [mm]
- 75
- Length [mm] Length [mm]
- 220
- Width [mm] Width [mm]
- 260
- Compressed air input Compressed air input
- 5 - 7 bar
- Compressed air output Compressed air output
- 0,08 - 4 bar
- Dispensing method Dispensing method
- manuel / time-controlled
- Time range Time range
- 0.01 - 999 s
- Weight Weight
- 1.5 kg

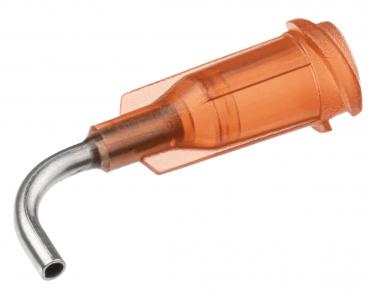

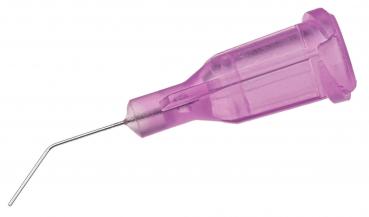

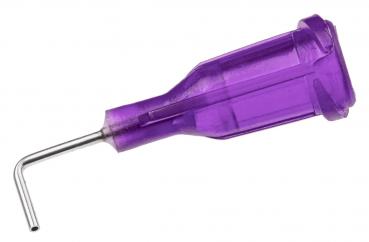

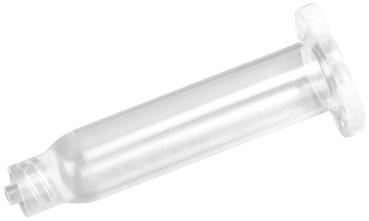

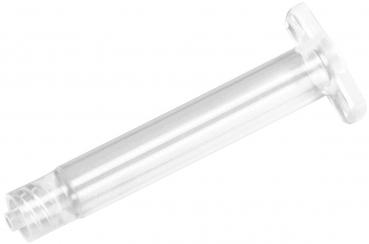

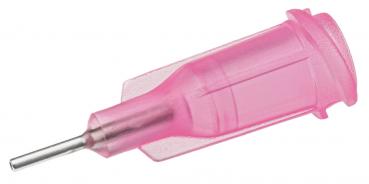

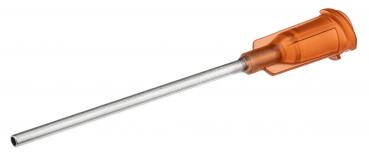

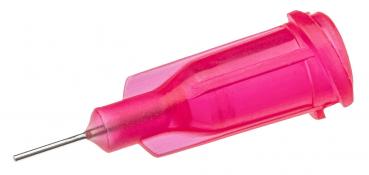

Show accessories
