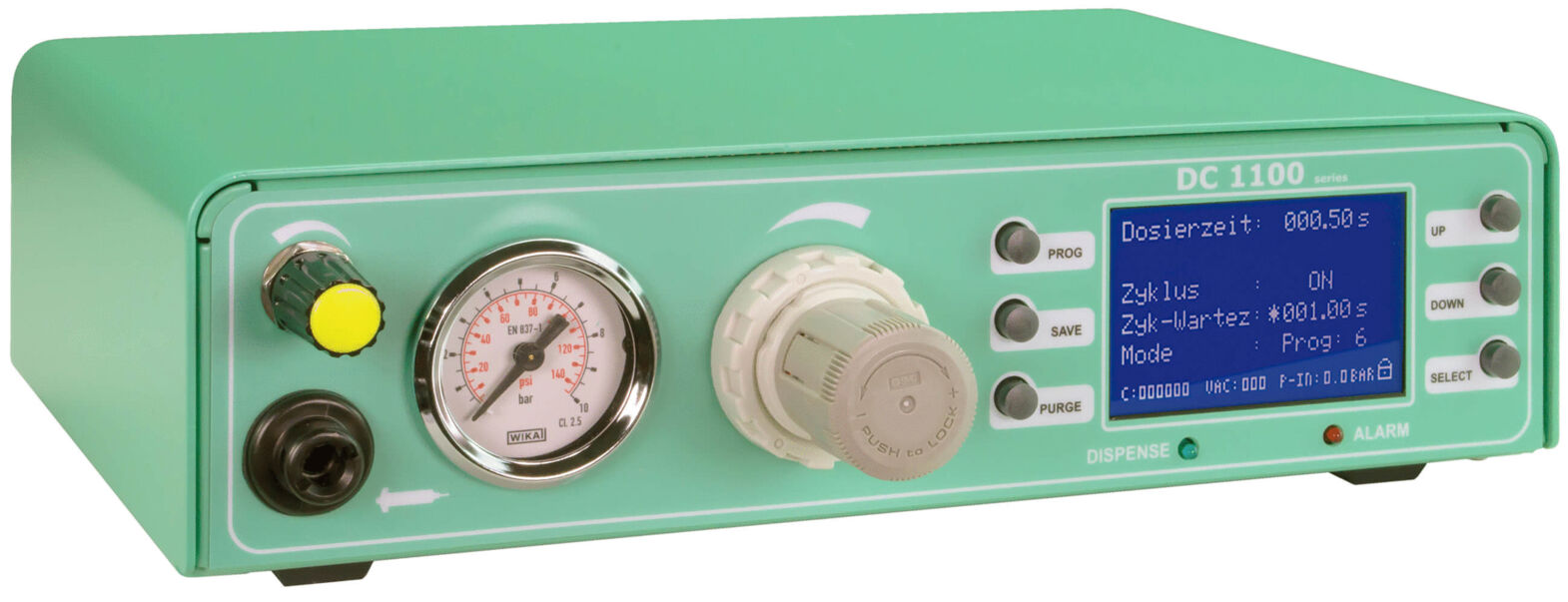

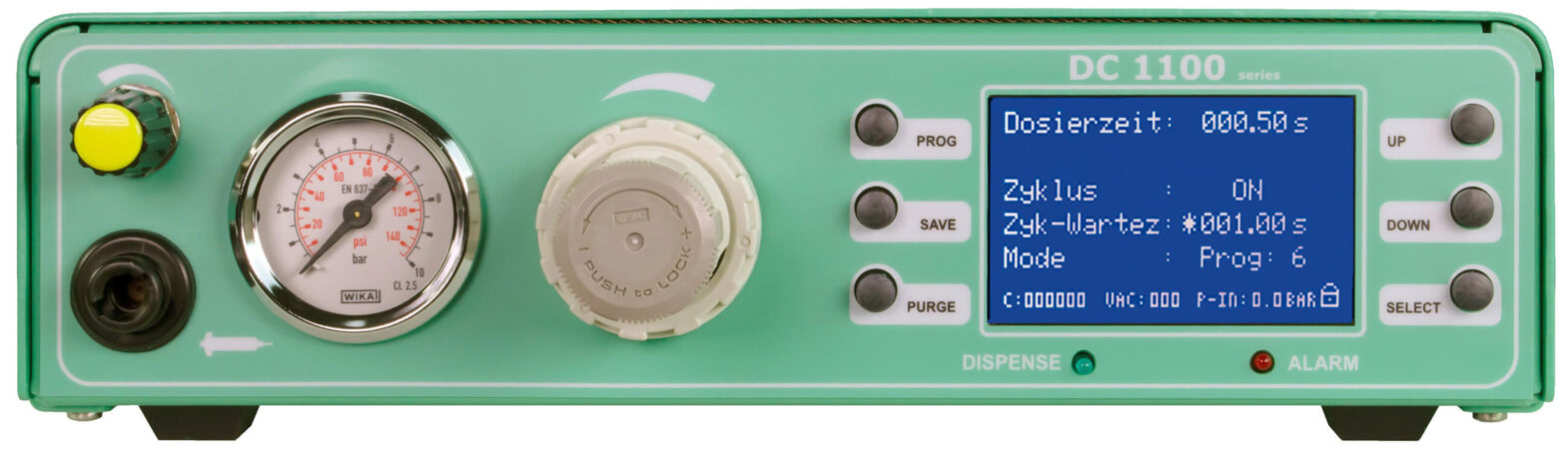

DC1120 Digital dispenser - max. 2 bar
DC1120 Digital Dosing Device - max. 2 bar

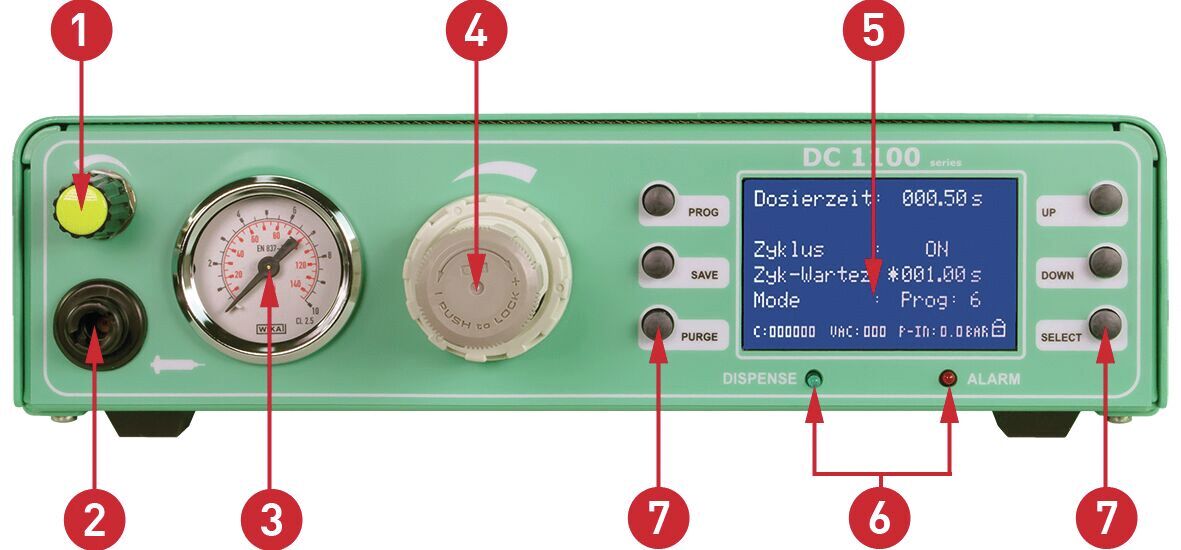

The DC1120 Digital Dosing Device is a high-precision solution for pneumatically controlled dosing, ideal for use with 3 – 55cc small cartridges. This model offers a maximum output pressure setting of 2 bar and integrates various advanced features to optimize dosing accuracy and process reliability. The digital display allows for precise monitoring of the air output and vacuum retention, displayed on the backlit screen.
Technical Specifications:
- Size: 260 x 75 x 220 mm (W x H x D)
- Weight: 1.5 kg
- Dosing duration: 0.01 - 999 seconds
- Input voltage: 85-264 V AC
- Operating voltage: 24 V DC
- Air input pressure: 5 - 7 bar
- Air output pressure: 0.08 - 2 bar
- Display: 128 x 64 pixels
- Programs: 8 program slots

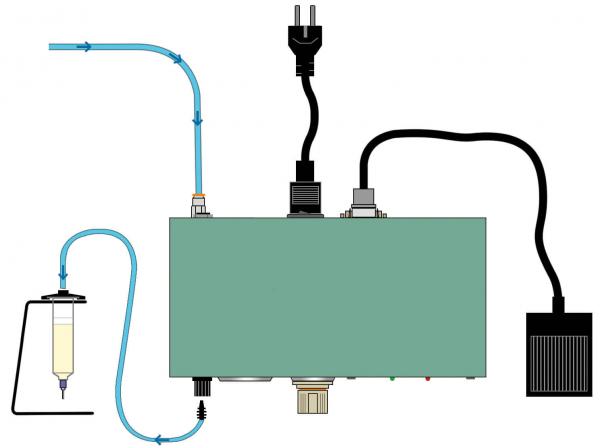

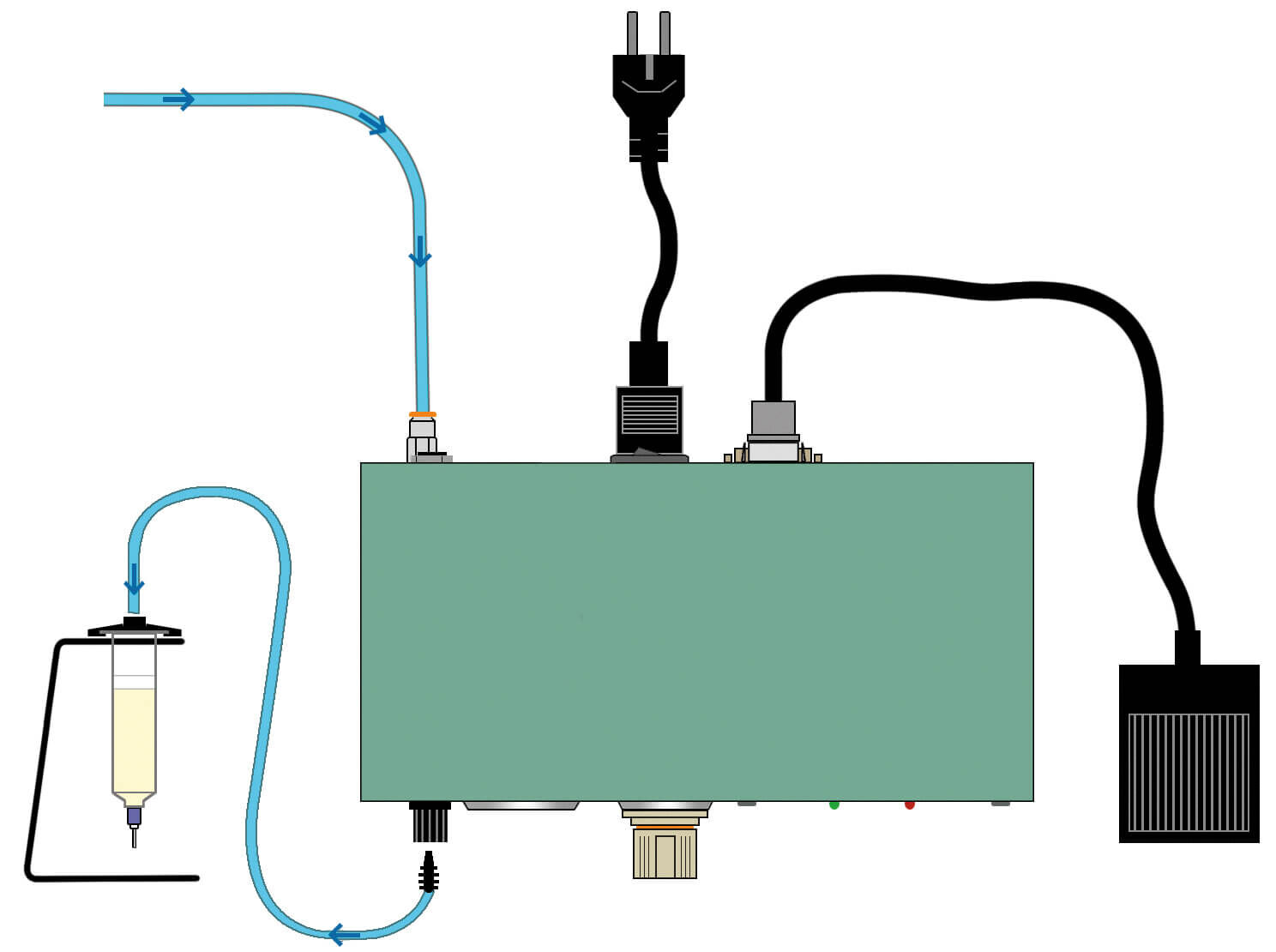

The package includes a foot switch, cartridge holder, connection hose for air input, 30cc cartridge adapter, 30cc cartridge, 30cc plug, and a comprehensive assortment of dosing needles. This device combines ease of use with technical sophistication, making it an ideal choice for demanding dosing tasks.
The DC1120 Digital Dosing Device is a high-precision solution for pneumatically controlled dosing, ideal for use with 3 – 55cc small cartridges. This model offers a maximum output pressure setting of 2 bar and integrates various advanced features to optimize dosing accuracy and process reliability. The digital display allows for precise monitoring of the air output and vacuum retention, displayed on the backlit screen.
Technical Specifications:
- Size: 260 x 75 x 220 mm (W x H x D)
- Weight: 1.5 kg
- Dosing duration: 0.01 - 999 seconds
- Input voltage: 85-264 V AC
- Operating voltage: 24 V DC
- Air input pressure: 5 - 7 bar
- Air output pressure: 0.08 - 2 bar
- Display: 128 x 64 pixels
- Programs: 8 program slots
The package includes a foot switch, cartridge holder, connection hose for air input, 30cc cartridge adapter, 30cc cartridge, 30cc plug, and a comprehensive assortment of dosing needles. This device combines ease of use with technical sophistication, making it an ideal choice for demanding dosing tasks.
Details
- Input voltage Input voltage
- 85 - 264 V/AC
- Working voltage Working voltage
- 24 V/DC
- Height [mm] Height [mm]
- 75
- Length [mm] Length [mm]
- 220
- Width [mm] Width [mm]
- 260
- Compressed air input Compressed air input
- 5 - 7 bar
- Compressed air output Compressed air output
- 0,08 - 2 bar
- Dispensing method Dispensing method
- manuel / time-controlled
- Time range Time range
- 0.01 - 999 s
- Weight Weight
- 1.5 kg
Show accessories
Spares
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Input voltage
Working voltage
Height [mm]
Length [mm]
Width [mm]
Compressed air input
Compressed air output
Price
Compare
85 - 264 V/AC
24 V/DC
75
220
260
5 - 7 bar
0,08 - 2 bar
85 - 264 V/AC
24 V/DC
75
220
260
5 - 7 bar
0,08 - 4 bar
85 - 264 V/AC
24 V/DC
75
220
260
5 - 7 bar
0,08 - 6 bar
