DC150 - Dosing Device

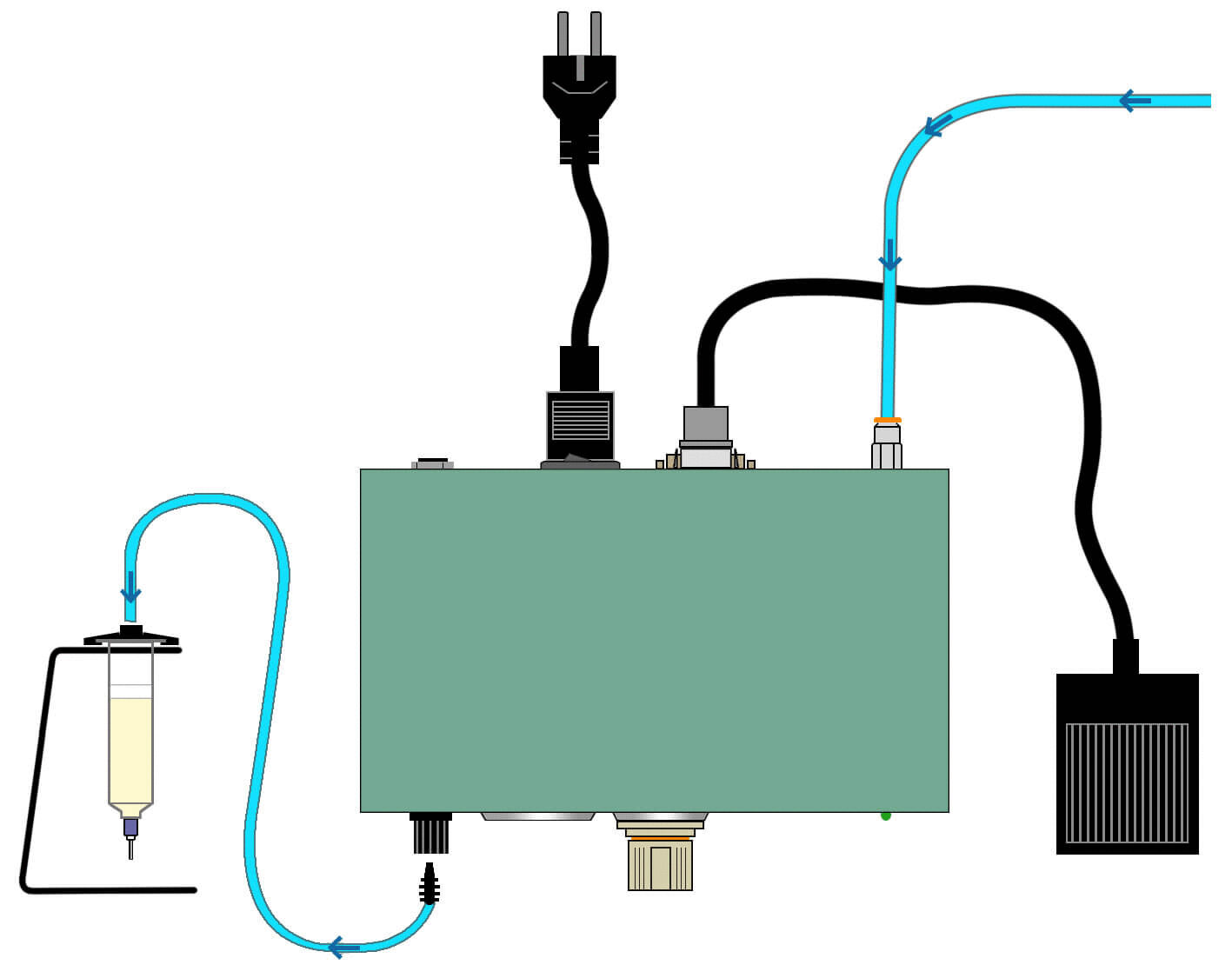

The DC150 is an analog dosing device for precise, manual dosing applications and is characterized by its high reliability and cost efficiency. It is suitable for a variety of media and prevents dripping of low-viscosity substances thanks to a vacuum retention system. Operation is via a foot pedal, which allows for continuous dosing.
Technical Specifications:
- Size: 235 x 75 x 220 mm
- Dosing method: manual
- Input voltage: 85-264 V AC / 50/60 Hz
- Working voltage: 24 V DC
- Compressed air input: 5-7 bar
- Compressed air output: 0.1-7 bar
- Weight: approx. 1.3 kg

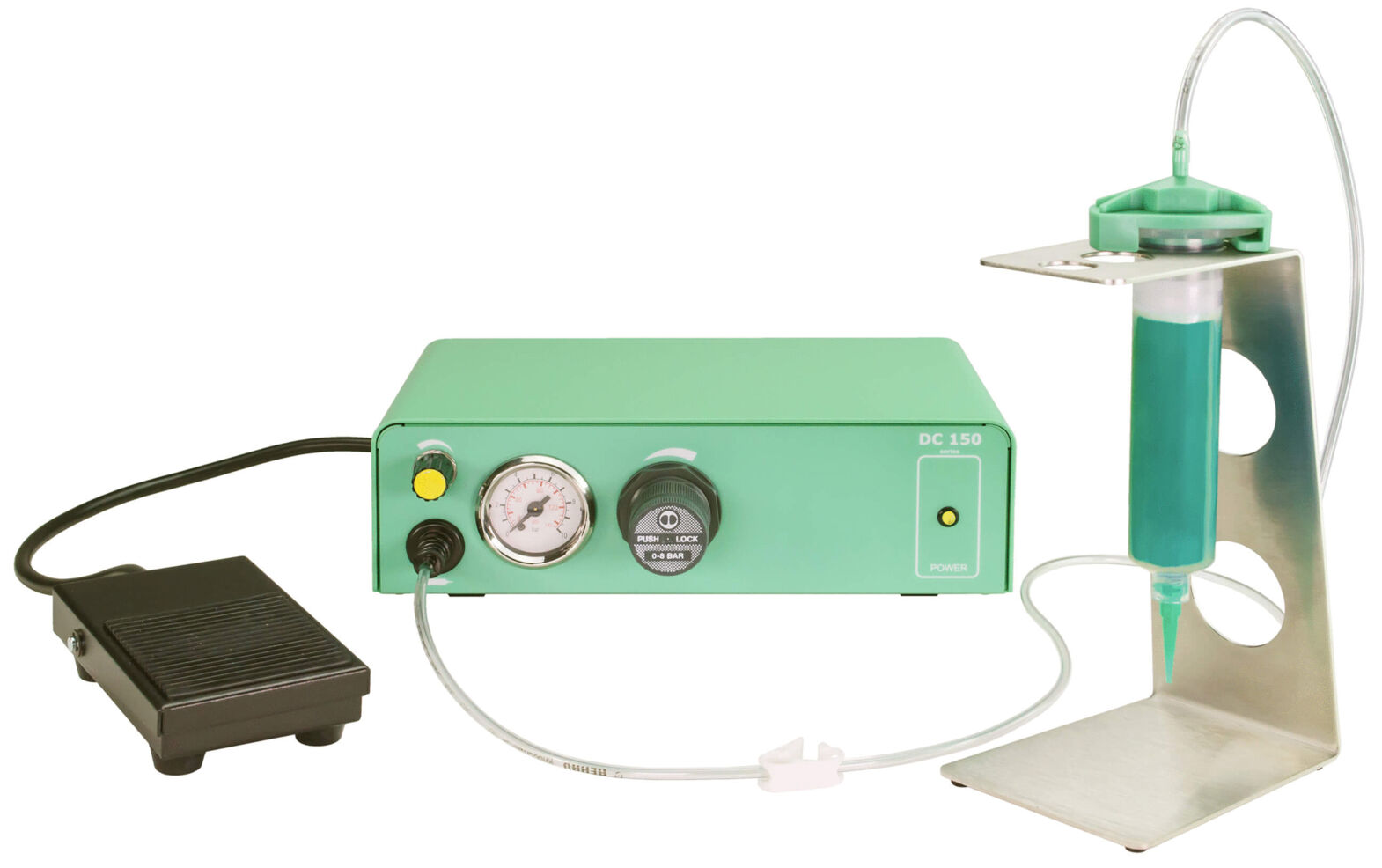

The package includes an extensive accessory set, which comprises a foot pedal, cartridge holder, connection hose for the compressed air input, a 30cc cartridge adapter, three 30cc cartridges, three 30cc plugs, and a 17-piece set of dosing needles.
Details
- Input voltage
Input voltage
- 100 - 240 V/AC
- Working voltage
Working voltage
- 24 V/DC
- Height [mm]
Height [mm]
- 75
- Length [mm]
Length [mm]
- 135
- Width [mm]
Width [mm]
- 225
- Compressed air input
Compressed air input
- 5 - 7 bar
- Compressed air output
Compressed air output
- 0 - 7 bar
- Dispensing method
Dispensing method
- manuel
- Weight
Weight
- 1.3 kg
