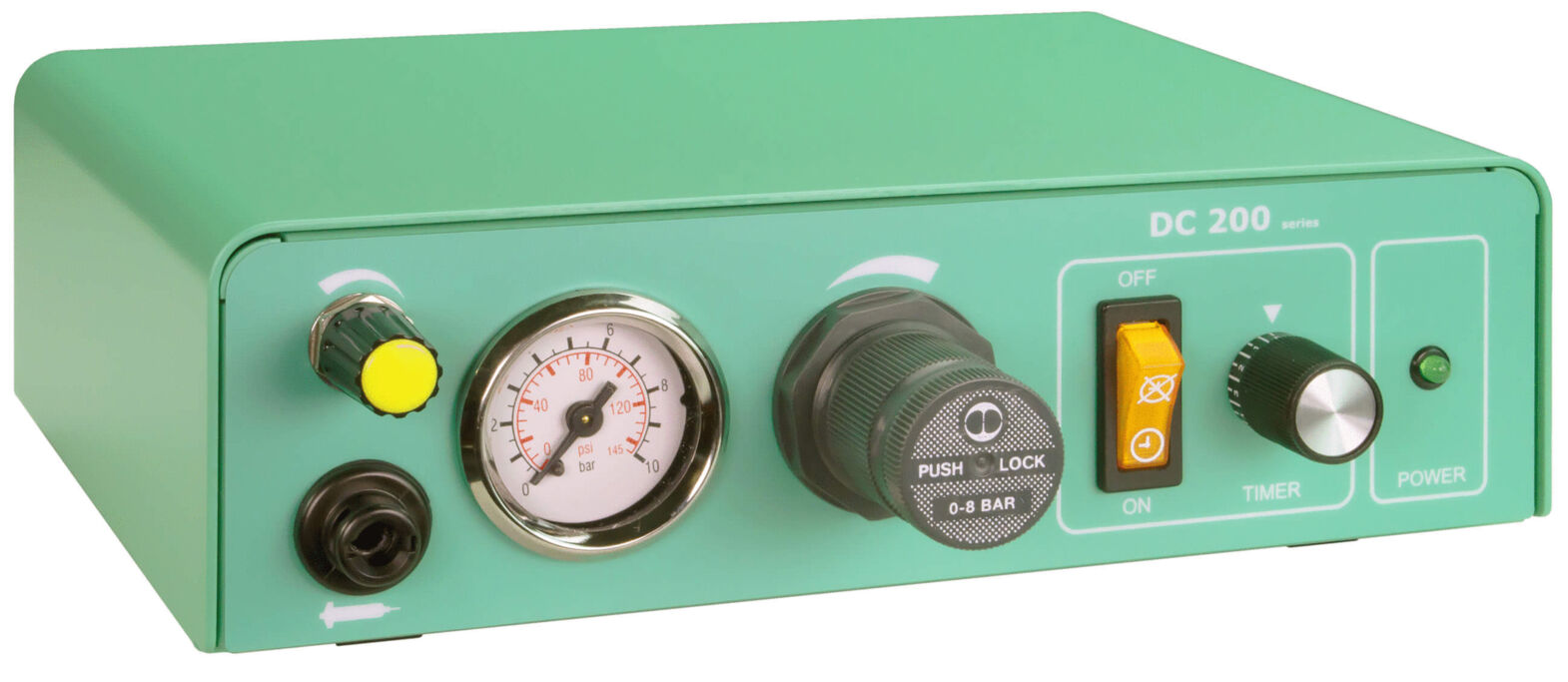

DC270 Dispenser
DC270 - Dispensing Device
The DC270 dispensing device offers precise control for pneumatic dispensing. It is ideally suited for applications with 3 – 55 cc micro cartridges. The integrated timer allows for flexible adjustment of the dispensing duration between 0.01 and 31 seconds. The air pressure regulator enables precise adjustment of the material pressure. The wide-range power supply supports input voltages from 85-264 V AC, while the working voltage is at 24 V DC.
Technical Specifications: - Dimensions: 225 x 75 x 135 mm - Dispensing method: manual or timed - Air output pressure: 0-7 bar - Air input pressure: 5-7 bar - Time range: 0.01-31 s - Input voltage: 100-240 V AC - Working voltage: 24 V DC - Weight: 1.3 kg

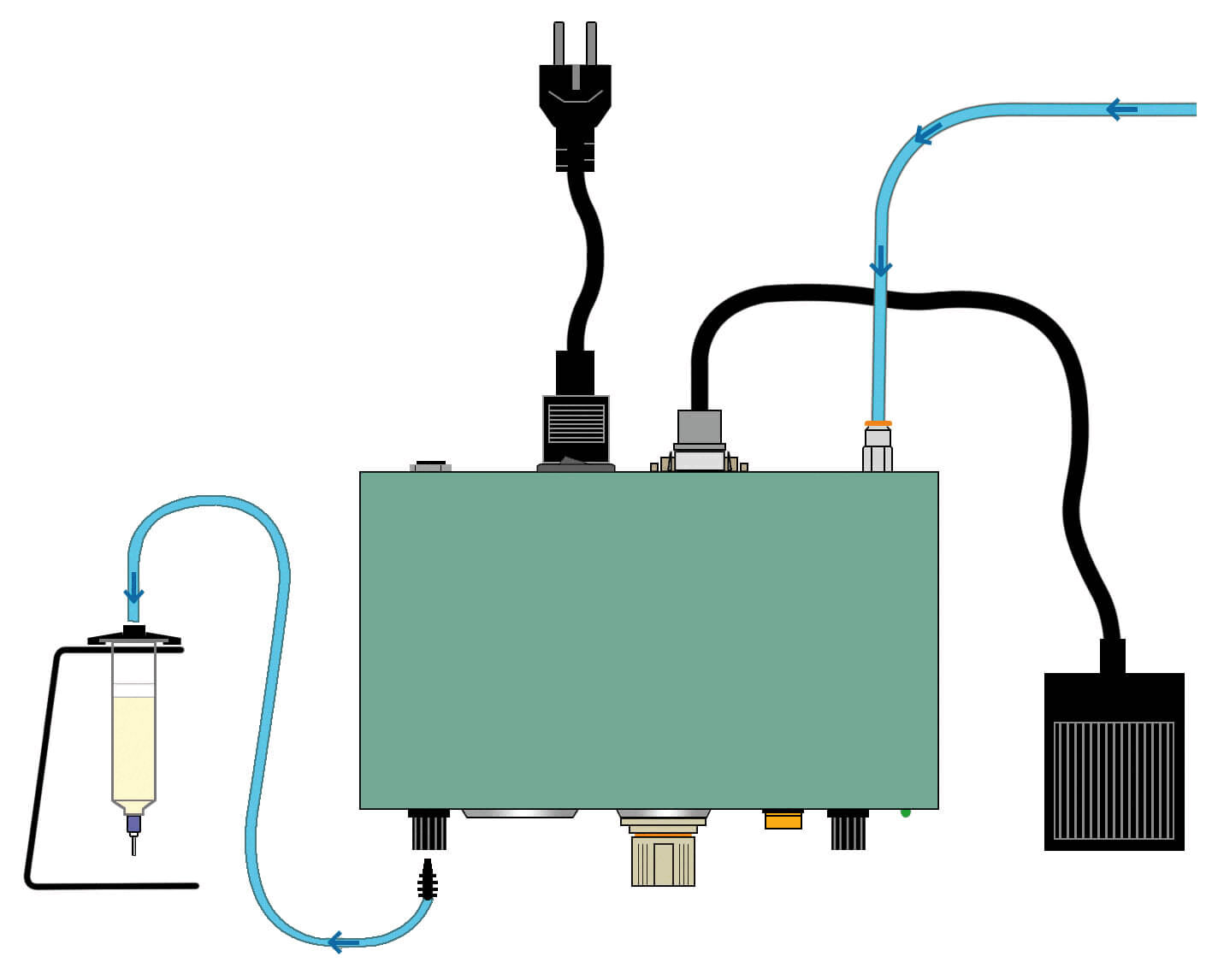

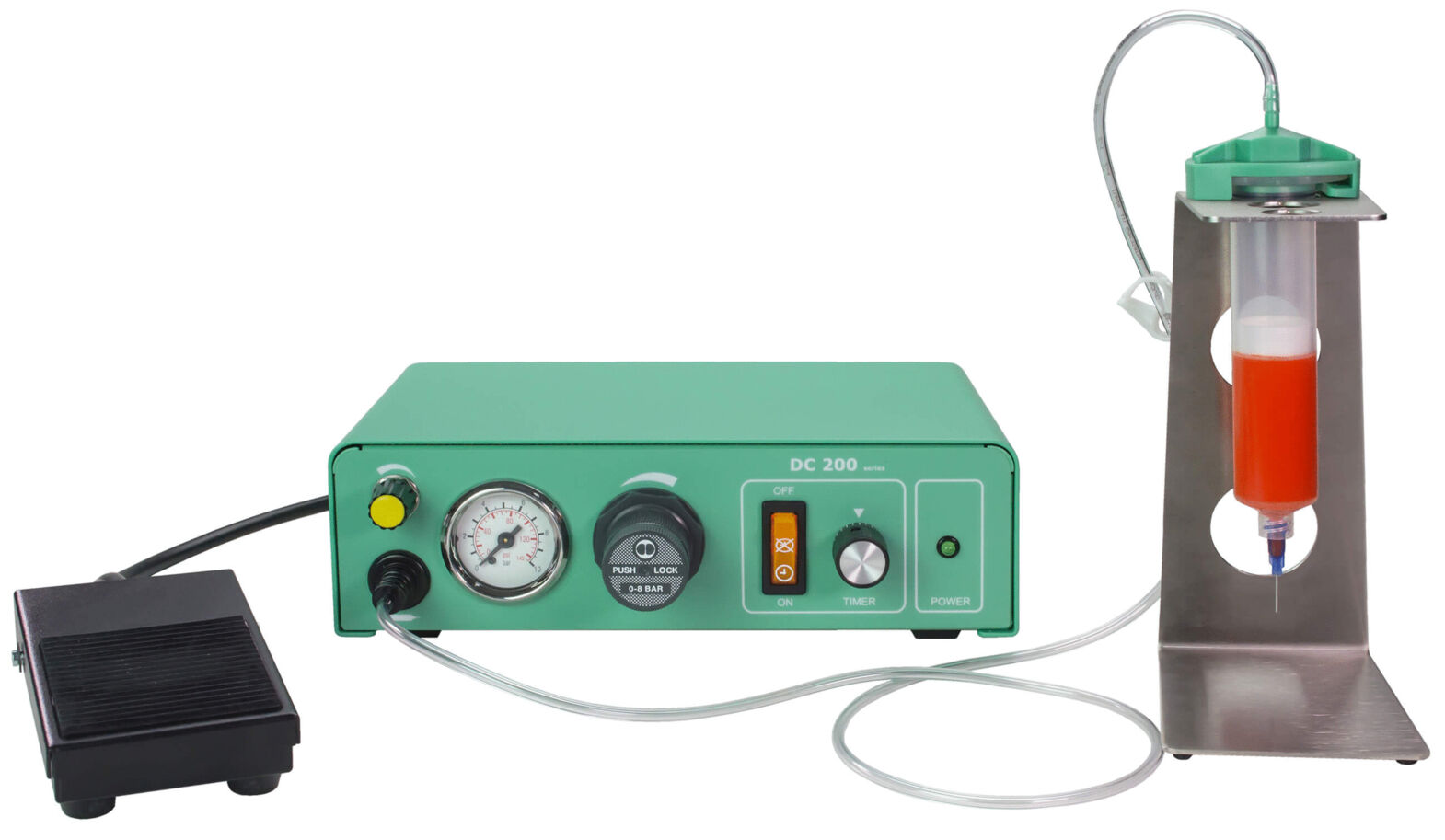

Included in the delivery are a cold device cable, a foot switch, a cartridge holder, a connection hose for air input, a 30cc cartridge adapter, three 30cc cartridges, three 30cc plugs, and a 17-piece set of dispensing needles.
The DC270 dispensing device offers precise control for pneumatic dispensing. It is ideally suited for applications with 3 – 55 cc micro cartridges. The integrated timer allows for flexible adjustment of the dispensing duration between 0.01 and 31 seconds. The air pressure regulator enables precise adjustment of the material pressure. The wide-range power supply supports input voltages from 85-264 V AC, while the working voltage is at 24 V DC.
Technical Specifications: - Dimensions: 225 x 75 x 135 mm - Dispensing method: manual or timed - Air output pressure: 0-7 bar - Air input pressure: 5-7 bar - Time range: 0.01-31 s - Input voltage: 100-240 V AC - Working voltage: 24 V DC - Weight: 1.3 kg
Included in the delivery are a cold device cable, a foot switch, a cartridge holder, a connection hose for air input, a 30cc cartridge adapter, three 30cc cartridges, three 30cc plugs, and a 17-piece set of dispensing needles.
Details
- Input voltage Input voltage
- 100 - 240 V/AC
- Working voltage Working voltage
- 24 V/DC
- Height [mm] Height [mm]
- 75 mm
- Length [mm] Length [mm]
- 135 mm
- Width [mm] Width [mm]
- 225 mm
- Compressed air input Compressed air input
- 5 - 7 bar
- Compressed air output Compressed air output
- 0 - 7 bar
- Dispensing method Dispensing method
- manuel / time-controlled
- Time range Time range
- 0.01 - 31 s
- Weight Weight
- 1.3 kg
