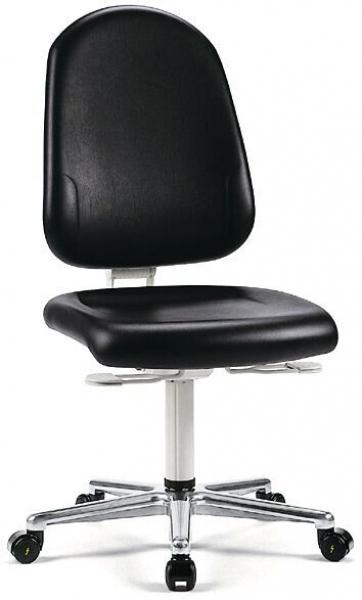

The chair is ergonomic with a black seat and backrest. It has an adjustable height and a base with five casters for easy movement.
ESD cleanroom Plus 2 with castors backrest 500 mm
(Product No.: 9161-2571)
The chair is ergonomic with a black seat and backrest. It has an adjustable height and a base with five casters for easy movement.
Notice / Inquire

ESD cleanroom Plus 2 with castors backrest 500 mm

dpvlink:
13423
Seat height:
44 cm
Backrest: height:
50 cm
Castor type:
safety double castors for hard surfaces, conductive
Properties:
Further product information

Delivery time! Delivery time!
624,75 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD cleanroom Plus 2 with castors backrest 500 mm

The ESD Cleanroom-Plus 2 by bimos, a swivel chair with casters and a 500 mm high backrest, is specifically designed for use in cleanrooms. The seat and backrest enclosures made of sheet steel ensure optimal particle safety. All metal parts are conductive coated and the plastic parts are volume conductive to prevent static charges. The slip-resistant synthetic leather cover Skai ESD in black also provides secure grip on smooth surfaces.
The chair is GS-certified and meets the standards DIN EN 61340-5-1 and DIN 68877. It complies with air purity class 1 according to US Fed. Std. 209E and class 3 according to EN ISO 14644-1. The seat height can be adjusted from 44 cm to 56.5 cm and the load capacity is up to 120 kg. The polished aluminum base and the conductive, braked safety double casters for hard floors ensure mobility and stability in use.
The chair comes without armrests and is equipped with a permanent contact backrest, which allows continuous back contact to enhance comfort and ergonomics.
Seat height
Seat height
44 cm
Backrest: height
Backrest: height
50 cm
Castor type
Castor type
safety double castors for hard surfaces, conductive
Armrest
Armrest
without armrest
Castor Feature
Castor Feature
braked
Chair type
Chair type
swivel chair
Cleanroom
Cleanroom
suitable
Cover
Cover
synthetic leather
Fabric color
Fabric color
black
Max. load capacity
Max. load capacity
120 kg
Permenent contact backrest
Permenent contact backrest
yes
Polished aluminum base
Polished aluminum base
yes
Seat height adjustment
Seat height adjustment
yes, lateral lever
Seat: size
Seat: size
48 x 47 cm
ISO according to 14644-1
ISO according to 14644-1
3
Bleeder resistance
Bleeder resistance
106 Ω
ESD
ESD
yes
Series
Series
REINRAUM
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a bright, ergonomically shaped support that looks like a handle. It has a curved, round top and grooves on the side for better grip.
Ring armrests for bimos Cleanroom Plus
Ring armrests for bimos cleanroom plus
with permanent contact version, light grey
dpvlink
30555

63,00 EUR
Show product
The image shows a black axle with a round tire. On the surface, there is a yellow lightning bolt symbol. The wheel has a smooth, slightly curved shape and a small container.
ESD castors soft
Bimos ESD castors soft, conductive
for hard surfaces, PU = 5 pieces
Cleanroom Basic, Labsit, Flex, stool
dpvlink
28018

35,00 EUR
Show product
The image shows a black axle with a round tire. On the surface, there is a yellow lightning bolt symbol. The wheel has a smooth, slightly curved shape and a small container.
bimos ESD castors hard
Bimos ESD castors hard, conductive
for soft surfaces, PU = 5 pieces
dpvlink
28018

35,00 EUR
Show product
The image shows a black control unit with a lightning bolt symbol. Next to it are two symbols: a stop sign with a downward arrow and a go sign with an upward arrow.
Sit-stop castors ESD
ESD Seat Stop Castors
1 set = 5 pieces
suitable for Bimos Neon, Nexxit, Unitec, Basic,
Basic Cleanroom, Labsit, Flex and Stool
dpvlink
28018

54,85 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 244
Complete Catalog 2023 - 2024

Product Family

Swivel chair cleanroom Plus ESD

The comfortable chair for performance in the cleanroom

The chairs in the Cleanroom Plus range are suitable for sitting in cleanrooms. In addition to their outstanding cleanroom properties, they have an ideal ability to dissipate electrostatic charges. The chairs also impress with their perfect ergonomics and optimum sitting comfort. Cleanroom Plus therefore not only meets the technical requirements, but also the people who work in the cleanroom on a daily basis.

The highlights of the Cleanroom Plus ESD

  • Suitable for cleanrooms - smooth, sealed surfaces prevent the release of particles
  • Functions - permanent contact backrest, seat height adjustment and backrest height adjustment
  • Ergonomics - the chairs are ergonomically designed


Design and material

Cleanroom Plus is equipped with seat and backrest shells made of sheet steel and guarantees the best possible particle safety. The metal parts have a conductive coating, the plastic parts are volume conductive. Their color is light grey. The similarly conductive artificial leather cover is slip-resistant and provides a firm grip even on smooth cleanroom clothing.


Article image
Article description
Seat height
Backrest: height
Castor type
Additional equipment
Price
Compare
9161-2571 - ESD cleanroom Plus 2 with castors backrest 500 mm
9161-2571
ESD cleanroom Plus 2 with castors backrest 500 mm
44 cm
50 cm
safety double castors for hard surfaces, conductive

624,75 EUR
9181-2571 - ESD cleanroom Plus 2 with castors backrest 380 mm
9181-2571
ESD cleanroom Plus 2 with castors backrest 380 mm
44 cm
38 cm
safety double castors for hard surfaces, conductive

588,00 EUR
9183-2571 - ESD cleanroom Plus 2 with glides/climbing aid
9183-2571
ESD cleanroom Plus 2 with glides/climbing aid
63 - 89 cm
38 cm
glides, conductive
climbing aid
693,00 EUR
