Neon 2 ESD swivel chair with synchronous technology (without upholstery)
The Neon 2 ESD swivel chair from bimos, equipped with synchronous technology, offers comprehensive ESD protection through its volume conductive plastic and conductive comfort cushions. This chair is specifically designed for technical work environments where electrostatic discharge poses a risk, and meets the ESD standard DIN EN 61340-5-1.The ergonomic backrest optimally supports the lumbar region and is height adjustable (57 cm), while the seat height can be adjusted between 45 and 62 cm. Additional comfort is provided by the seat tilt adjustment, which allows a tilt angle of up to 9°, ensuring an angle of at least 90° to the backrest at all times. The seat depth adjustment allows individual adaptation to the user's body size.
The chair features a robust, black aluminum base and conductive safety double casters for hard floors, making it particularly durable and safe. The maximum load capacity of the chair is 120 kg. Note that the cushion elements are replaceable and must be ordered separately. An optional 4D armrest is available, which is height, width, and depth adjustable, and can be swiveled.
The chair is GS-certified and complies with the DIN 68877 standard, emphasizing its quality and safety. It is available in various attractive Flexband colors such as Happy orange, Mars green, Ocean blue, and Cool grey.
Details
- Seat height Seat height
- 45 - 62 cm
- Additional equipment Additional equipment
- rounded front edge of seat, integrated pelvic support
- Seat mechanism Seat mechanism
- synchronous technology
- Castor type Castor type
- safety double castors for hard surfaces, conductive
- Max. load capacity Max. load capacity
- 120 kg
- Armrest Armrest
- without armrest
- Backrest: height Backrest: height
- 57 cm
- Backrest: height adjustment Backrest: height adjustment
- yes
- Backrest: tilt adjustment Backrest: tilt adjustment
- yes
- Chair type Chair type
- swivel chair
- Cleanroom Cleanroom
- no
- Permenent contact backrest Permenent contact backrest
- yes, adjustable to body weight
- Polished aluminum base Polished aluminum base
- aluminum black
- Seat height adjustment Seat height adjustment
- yes
- Seat: depth adjustment Seat: depth adjustment
- yes
- Seat: size Seat: size
- 47 x 38.5 cm
- Seat: tilt adjustment Seat: tilt adjustment
- yes
- Bleeder resistance Bleeder resistance
- 106 Ω
- ESD ESD
- yes
- Series Series
- NEON
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
NEON Swivel chair
ESD suitability - the chair for reliable discharge
The discharge of electrostatic voltages in the ESD NEON is made possible by all materials and the connection technology. Castors and glides discharge voltages directly into the floor, but the plastic back shell, the upholstery and the coated steel parts are also conductive.
At all EPAs (ESD Protected Areas), the aim is to consistently prevent charging and uncontrolled discharge. The EN 61340-5-1 standard specifies the required resistances for this, but the Bimos ESD Neon meets even stricter requirements.
Top performance in large and small
For high and low workstations, the ESD NEON is simply the best chair when it comes to ergonomics, features and design. The attractive shape complements the relaxed sitting experience and enhances the entire workplace.
Ergonomics - adjustment functions - people are the measure
No aspect of the workplace has as great an impact on health as ergonomic design. This is why the ESD NEON swivel chair is not only the basis for efficiency and error-free work, but also for physically healthy employees and a reduction in sick days. The numerous adjustment options make sitting comfortable and lead to a safe feeling during daily work.
1. Height adjustment
The height adjustment is used to adapt to body height and workstation height. With up to 280 mm, the adjustment range for Neon is particularly wide.
2. Seat tilt adjustment
With this adjustment, the seat surface can be tilted forwards at an angle of up to 9° in combination with the backrest. The seat tilt adjustment guarantees a seat angle between the back and thigh of at least 90°. This function is particularly helpful when working in a forward-leaning position with little hand-eye distance.
3. Seat depth adjustment
With the seat depth adjustment, the seat surface can be adjusted by 60 mm. This creates the ideal support surface for the thighs and adapts to the individual physique of the employee.
4. Backrest height adjustment
The backrest height can be adjusted by up to 60 mm to provide optimum support for the lumbar vertebrae - regardless of body height.
5. Weight regulation
The backrest counterpressure can be continuously adjusted for weights between 50 and 120 kg using a rotary lever. This enables all employees to sit dynamically.
6. Anti-shock lock
An anti-shock lock prevents the backrest from inadvertently moving forward after the lock is released.
Cover materials - conductive upholstery
To guarantee the safe dissipation of electrostatic charges, the upholstery from Bimos is also conductive and offers maximum comfort at the same time. Despite the high requirements in the ESD area, there are four upholstery variants to choose from.
1 - Synthetic leather Magic ESD
Conductive synthetic leather upholstery Magic for soft, comfortable “air cushion sitting”. Slip-resistant, washable, easy to clean, resistant to oils, grease, dust and disinfectants.
2 - Supertec ESD
Particularly soft, comfortable upholstery consisting of breathable backing material and robust micro-armoring for a slip-resistant and cut-resistant surface, hard-wearing and easy to clean. Suitable for all areas of use except in the laboratory. The special durability not only ensures satisfaction, but also makes the cover a worthwhile investment.
3 - Integral foam ESD
Conductive integral foam upholstery for soft, comfortable "air cushion sitting". Washable, resistant to light acids, alkalis, oils and greases, as well as mechanical impacts and sharp-edged objects. The textured surface offers optimum climate comfort and slip resistance.
4 - Fabric Duotec ESD
Soft, breathable textile upholstery consisting of hard-wearing cover fabric and high-quality cold foam. The breathable upholstery ensures a pleasant seating climate even in summer and can absorb and release moisture. However, the textile upholstery is not washable.

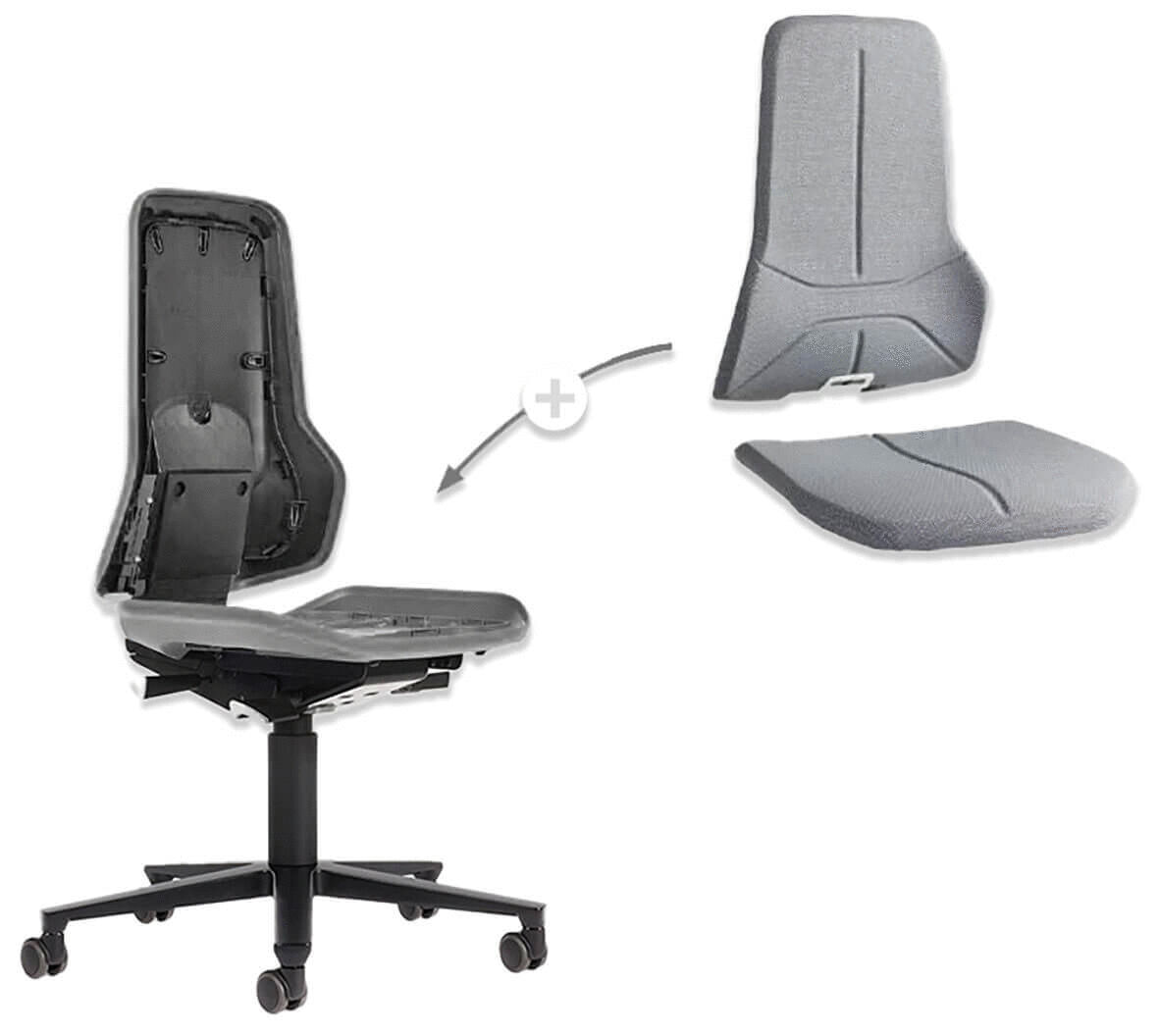

Simple and clever: the interchangeable upholstery system
A special feature of the ESD NEON is the interchangeable upholstery system. Both the back and seat upholstery can be removed and replaced in just a few simple steps. With the ESD NEON and its interchangeable upholstery, you are focusing on sustainability and cost-effectiveness. If the upholstery is damaged or the chair is used in a different work area with different requirements, the upholstery can be replaced quickly without having to replace the entire chair.
Basic mechanisms for active-dynamic sitting
Permanent contact backrest...
... follows the user's movements and ensures that the back is always ideally supported. Weight regulation ensures that backrest resistance and body weight are always in balance. The permanent contact backrest is particularly suitable for predominantly forward-leaning work with little distance between the workpiece and the eyes (e.g. in precision mechanics or in the laboratory).
Synchronous technology...
... ensures active, dynamic sitting including weight regulation. The seat and backrest accompany the body as it moves. This creates a feeling that can probably best be described as “weightless gliding”. The synchronous technology really comes into its own in office-like work situations, when working at a computer screen and in frequently changing sitting positions.
A decision that pays off
Promoting success
With its wide range of adjustment options, the ESD NEON swivel chair is the best in terms of ergonomics. Adapting the chair to the individual ensures greater health and efficiency for your employees - factors that have a positive impact on your entire company. The modern design is also a confirmation of their performance - and increases motivation in the workplace.
Ensuring safety
The ESD NEON from Bimos guarantees maximum safety and reliable protection for your production. Any electrostatic charge is safely dissipated and your components are protected from damage. We adhere strictly to the standard and even exceed it. Before the chairs are delivered, the dissipative capacity is extensively tested - so you can rely on the protection one hundred percent.
Buying sustainably
The sustainability of the ESD NEON swivel chair is due to its consistent quality: the materials and construction of the chair are designed to last as long as possible. We back this up with a 10-year guarantee. If something does break, the modular design makes it easy to replace individual parts if necessary. And at some point at the end of the chair's life, all materials can be fully recycled. ESD NEON is the first task chair to be awarded the Blue Angel.
