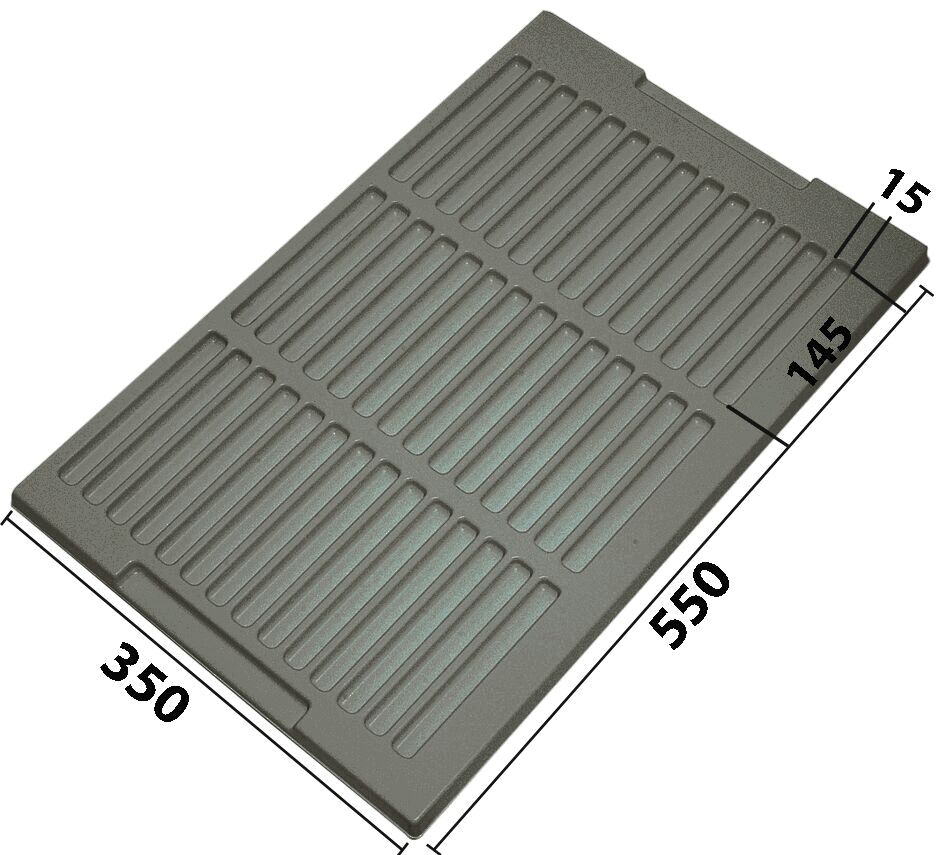

The image shows a gray, rectangular plate with many parallel grooves. The dimensions are 550 mm long and 350 mm wide. It has a thickness of 15 mm and a recess on one side.
Vacuum-formed insert T-234 550 x 350 x 17 mm, 42 compartments ESD
(Product No.: 032.T-234)
The image shows a gray, rectangular plate with many parallel grooves. The dimensions are 550 mm long and 350 mm wide. It has a thickness of 15 mm and a recess on one side.
Notice / Inquire

Vacuum-formed insert T-234 550 x 350 x 17 mm, 42 compartments ESD

Vacuum-formed insert T-234 550 x 350 x 17 mm, 42 compartments ESD

dpvlink:
18924
Length :
550 mm
Width :
350 mm
Height :
17 mm
Properties:
Further product information
Imprinting / Printing for boxes
Configure now


Minimum order:
10 PCE
available available
15,55 EUR

excl. 19% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-234 550 x 350 x 17 mm, 42 compartments ESD

The deep-drawing insert T-234 from Licefa is optimally tailored to the requirements of safe transport and storage of sensitive electronic components. With its dimensions of 550 x 350 x 17 mm and 42 precisely shaped compartments (each 145x15x10 mm), it fits perfectly into containers of size 600x400 mm.
The insert is characterized by its electrical conductivity, which is standardized according to DIN EN 61340-5-1, and offers a surface resistance between 10^3 and 10^5 Ohm. This ensures effective protection against electrostatic discharges. An integrated handle recess facilitates the handling of the insert.
This deep-drawing insert is not only functional but also robust and durable, ideal for technical use in demanding environments.
Length
Length
550 mm
Width
Width
350 mm
Height
Height
17 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
42
Dimensions cavities
Dimensions cavities
145x15x10 mm
Suitable for containers
Suitable for containers
600x400 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 318
Complete Catalog 2023 - 2024
