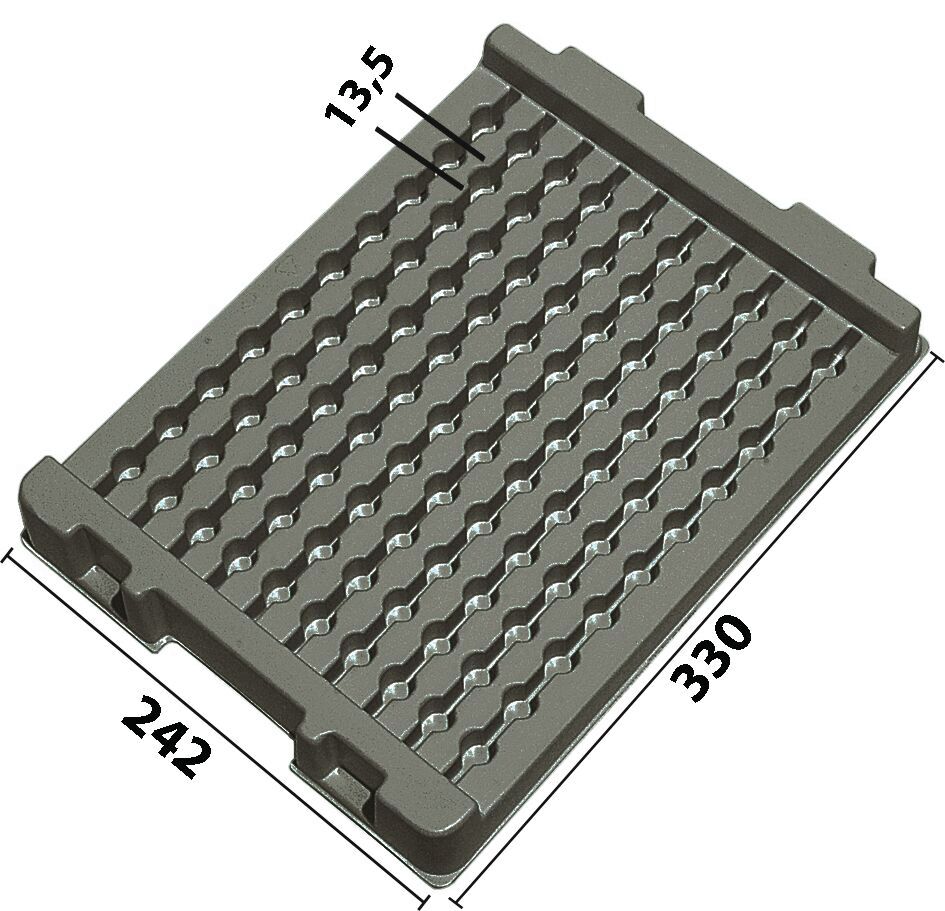

The image shows a rectangular, gray mat with a wavy, textured surface. Dimensions are provided on the sides: 242 mm and 330 mm. A measurement of 13.5 mm is also noted.
Vacuum-formed insert T-278 330 x 242 x 43 mm, 100 compartments ESD
(Product No.: 032.T-278)
The image shows a rectangular, gray mat with a wavy, textured surface. Dimensions are provided on the sides: 242 mm and 330 mm. A measurement of 13.5 mm is also noted.

Vacuum-formed insert T-278 330 x 242 x 43 mm, 100 compartments ESD

Vacuum-formed insert T-278 330 x 242 x 43 mm, 100 compartments ESD

dpvlink:
18952
Length :
330 mm
Width [mm]:
242 mm
Height [mm]:
43 mm
Properties:
Further product information
Imprinting / Printing for boxes
Configure now


Delivery time! Delivery time!

Compare Compare
Notice
Product Info

Vacuum-formed insert T-278 330 x 242 x 43 mm, 100 compartments ESD

The Licefa ESD thermoformed insert T-278, measuring 330 x 242 x 43 mm, is designed for the safe storage and transportation of sensitive electronic components. It features 100 precisely crafted compartments, each with a diameter of 13.5 mm and a depth of 35 mm, providing optimal organization and protection. The insert is specifically developed for use in containers sized 400 x 300 mm and allows efficient space utilization through its reversible stacking.
An integrated handle recess facilitates handling. The conductivity of the insert meets the standards of DIN EN 61340-5-1, with a surface resistance between 10^3 and 10^5 Ohm, making it the ideal choice for ESD-sensitive environments. The minimum order quantity is 50 pieces, simplifying planning for larger projects or stock levels.
Length
Length
330 mm
Width [mm]
Width
242 mm
Height [mm]
Height
43 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
100
Dimensions cavities
Dimensions cavities
13.5x35 mm
Suitable for containers
Suitable for containers
400x300 mm
Common
Vacuum-formed inserts are specially shaped inserts or inserts made of plastic that are used in storage and transport containers to store sensitive or fragile items safely and securely.
Licefa's ESD vacuum-formed inserts offer a first-class solution for the safe and efficient storage of your sensitive electronic components. All inserts are made of electrically conductive material (Liastat).

Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 319
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Vacuum-formed inserts T-278

Article image
Article description
Length
Width [mm]
Height [mm]
Price
Compare
032.T-278 - Vacuum-formed insert T-278 330 x 242 x 43 mm, 100 compartments ESD
032.T-278
Vacuum-formed insert T-278 330 x 242 x 43 mm, 100 compartments ESD
330 mm
242 mm
43 mm
-
