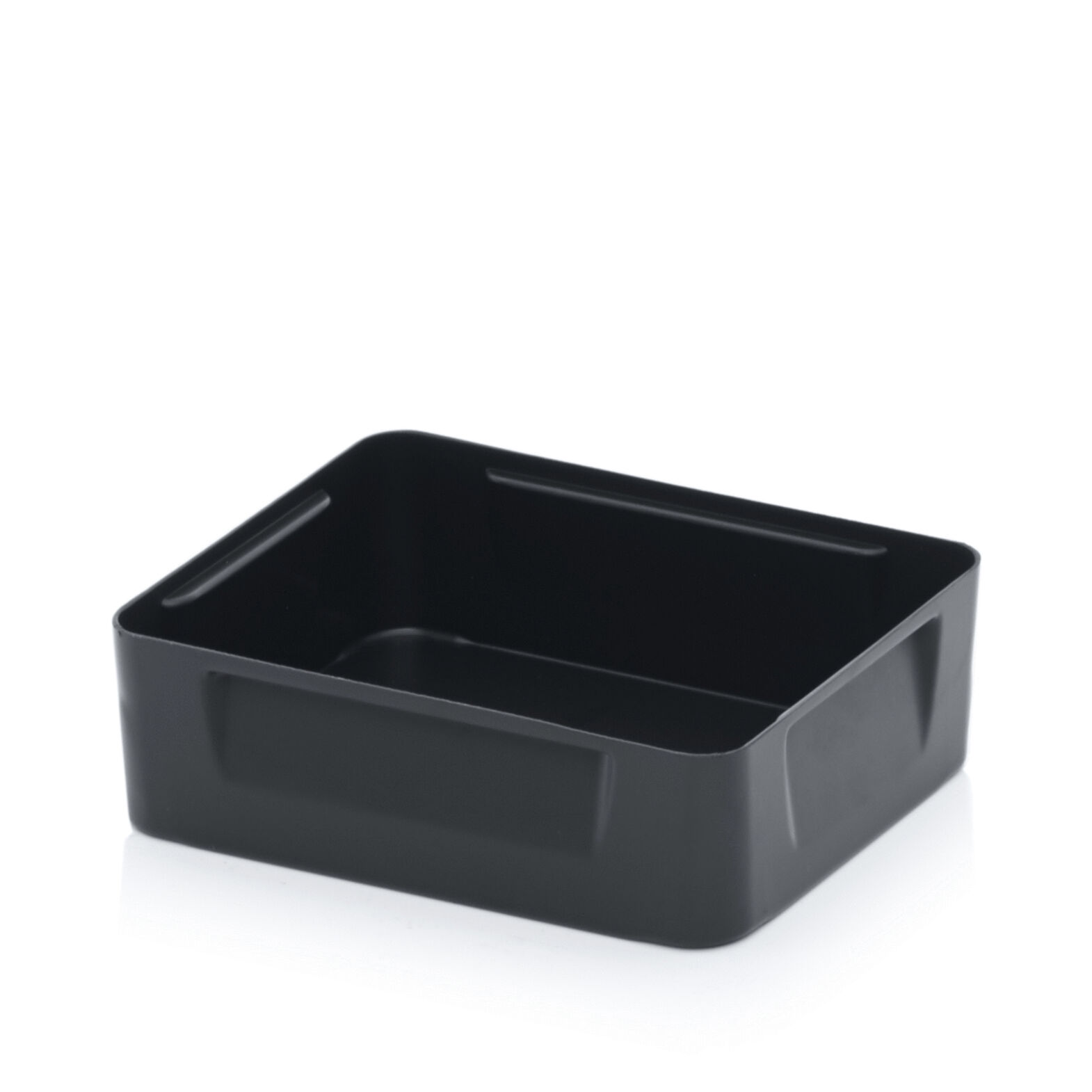

The image shows a rectangular, flat dish made of black plastic. It has straight edges and a smooth surface, ideal for storing or presenting food.
Insert box 805 for Euro container Light ESD 600 x 400 mm
(Product No.: 6040.EK805)
The image shows a rectangular, flat dish made of black plastic. It has straight edges and a smooth surface, ideal for storing or presenting food.
Notice / Inquire

Insert box 805 for Euro container Light ESD 600 x 400 mm

Insert box 805 for Euro container Light ESD 600 x 400 mm

dpvlink:
17035
Length :
183 mm
Width :
141 mm
Height :
50 mm
Properties:
Further product information
Imprinting / Printing for boxes
Configure now


chevron-down
available available
5,86 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Insert box 805 for Euro container Light ESD 600 x 400 mm

The AUER Insert Box 805, specifically designed for Euro container Light ESD 600 x 400 mm, combines functionality with technical precision. This model, Type EK 8/50 ESD, measures 183 mm in length, 141 mm in width, and 50 mm in height, making it an optimal solution for the secure storage and transport of sensitive electronic components.
The material, polypropylene, ensures electrostatic conductivity that meets the standards of DIN EN 61340-5-1, with a specific volume and surface resistance of 10^3 to 10^10 Ohm. The box is black, weighs 130 g, and is stackable, which simplifies handling and storage.
Additionally, the reinforced edge of the insert box allows for secure stacking, and the grip edge facilitates easy insertion and removal from the containers. These features make the Insert Box 805 an ideal choice for technical purchasers who value efficiency and safety.
Length
Length
183 mm
Width
Width
141 mm
Height
Height
50 mm
Color
Color
black
Volume resistance
Volume resistance
103 - 1010 Ω
Stackable
Stackable
yes
Weight
Weight
130 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a black, rectangular tray without a lid. It has raised edges and two side handles for easy handling. The surface is smooth and even.
Euro container Light ESD 600 x 400 x 75 mm...
Euro container Light black outside 600x400x75mm /
inside 560x360x70 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

10,06 EUR
The image shows a rectangular, flat black plastic tray with open sides and slightly raised edges. It has two side handles for easy handling.
Euro container Light ESD 600 x 400 x 120...
Euro container Light black outside 600x400x120 mm/
inside 560x360x115 mm
electrostatically conductive (DIN EN 61340-5-1)

Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

12,53 EUR
It is a rectangular, black plastic box with open handles on the sides. The walls are sturdy and the box has no lid. It appears robust and practical.
Euro container Light ESD 600 x 400 x 170...
Euro container Light black outside 600x400x170mm /
inside 560x360x165 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

14,85 EUR
The image shows a rectangular, black plastic box. It has an open top and two integrated handles on the longer sides. The walls are smooth and sturdy.
Euro container Light ESD 600 x 400 x 220...
Euro container Light black outside 600x400x220 mm/
inside 560x360x215 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

16,30 EUR
The image shows a rectangular, black plastic box. It has a smooth surface, no lids, and handle openings on the shorter sides for carrying. Ideal for storing items.
Euro container Light ESD 600 x 400 x 270...
Euro container Light black outside 600x400x270mm /
inside 560x360x265 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

19,15 EUR
The image shows a black, rectangular plastic box without a lid. It has sturdy walls and a simple design, ideal for storing items.
Euro container Light ESD 600 x 400 x 320...
Euro container Light black outside 600x400x320mm/
inside 560x360x315 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

20,65 EUR
The image shows a rectangular, black plastic box. It has smooth walls, an open top, and is sturdy. The corners are slightly rounded, and the bottom is flat.
Euro container Light ESD 600 x 400 x 420...
Euro container Light black outside 600x400x420 mm/
inside 560x360x415 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

25,65 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 304
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Insert for Euro containers 600 x 400 mm

  • for Euro containers with basic dimensions 600 x 400 mm
  • gripping edge for an easy insertion and removal
  • safely stackable due to reinforced edge
  • material: polypropylene

Typical volume resistance 103-1010 Ohm

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
Length
Width
Height
Price
Compare
6040.EK205 - Insert box 205 for Euro container Light ESD 600 x 400 mm
6040.EK205
Insert box 205 for Euro container Light ESD 600 x 400 mm
563 mm
183 mm
50 mm
12,45 EUR
6040.EK210 - Insert box 210 for Euro container Light ESD 600 x 400 mm
6040.EK210
Insert box 210 for Euro container Light ESD 600 x 400 mm
563 mm
183 mm
100 mm
16,37 EUR
6040.EK215 - Insert box 215 for Euro container Light ESD 600 x 400 mm
6040.EK215
Insert box 215 for Euro container Light ESD 600 x 400 mm
563 mm
183 mm
150 mm
16,10 EUR
6040.EK405 - Insert box 405 for Euro container Light ESD 600 x 400 mm
6040.EK405
Insert box 405 for Euro container Light ESD 600 x 400 mm
282 mm
183 mm
50 mm
7,77 EUR
6040.EK410 - Insert box 410 for Euro container Light ESD 600 x 400 mm
6040.EK410
Insert box 410 for Euro container Light ESD 600 x 400 mm
282 mm
183 mm
100 mm
11,14 EUR
6040.EK415 - Insert box 415 for Euro container Light ESD 600 x 400 mm
6040.EK415
Insert box 415 for Euro container Light ESD 600 x 400 mm
282 mm
183 mm
150 mm
14,30 EUR
6040.EK805 - Insert box 805 for Euro container Light ESD 600 x 400 mm
6040.EK805
Insert box 805 for Euro container Light ESD 600 x 400 mm
183 mm
141 mm
50 mm
5,86 EUR
6040.EK810 - Insert box 810 for Euro container Light ESD 600 x 400 mm
6040.EK810
Insert box 810 for Euro container Light ESD 600 x 400 mm
183 mm
141 mm
100 mm
6,63 EUR
6040.EK815 - Insert box 815 for Euro container Light ESD 600 x 400 mm
6040.EK815
Insert box 815 for Euro container Light ESD 600 x 400 mm
183 mm
141 mm
50 mm
10,01 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a blue spray bottle with the label "ESD-Cleaner professional". It features a man and a woman working together at a table.
TOP
EPAclean® ESD Cleaner Professional 1l
ESD-Cleaner professional 1L , "EPAclean"
Spray bottle, ready-to-use cleaner
for dissipative and conductive surfaces
dpvlink
22449

10,35 EUR
