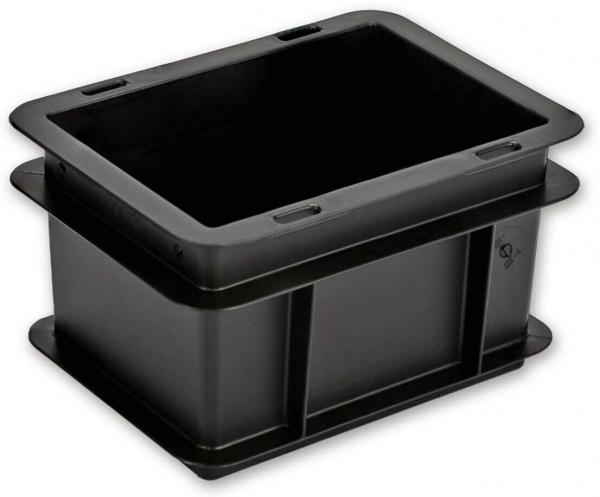

The image displays a rectangular, black plastic container with an open top. It has smooth walls and feet on the sides for stability.
RAKO Euro container ESD 200 x 150 x 120 mm
(Product No.: 051302)

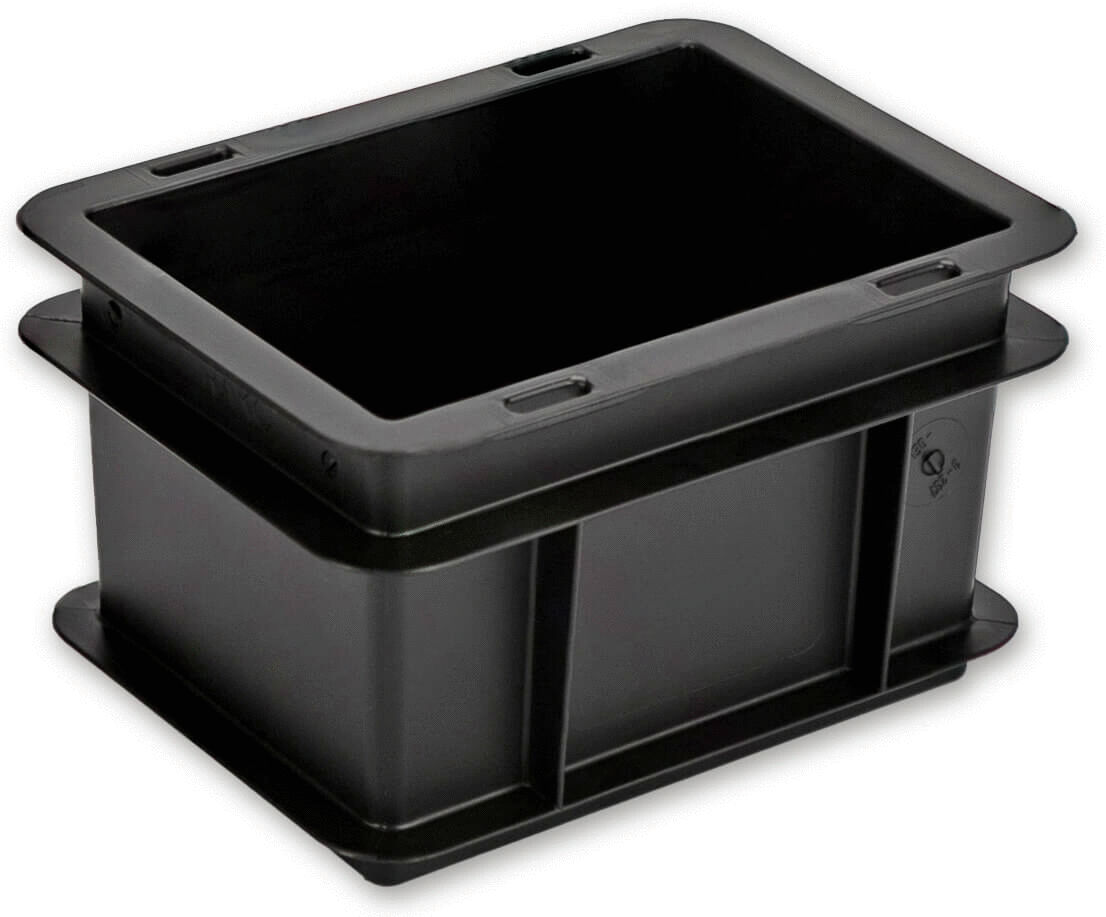

The image displays a rectangular, black plastic container with an open top. It has smooth walls and feet on the sides for stability.
Notice

RAKO Euro container ESD 200 x 150 x 120 mm

RAKO Euro container ESD 200 x 150 x 120 mm

dpvlink:
797
Dimensions outside:
200 x 150 x 120
inside LxWxH [mm]:
162 x 112 x 114
Material:
polypropylene
Stackable:
yes
Conductivity:
volume conductive
Properties:
Further product information
Interlayers
Configure now
Parting Inserts
Configure now
Imprinting / Printing for boxes
Configure now


chevron-down
available available
6,64 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

RAKO Euro container ESD 200 x 150 x 120 mm

The RAKO Euro container ESD from UTZ is specifically designed for the safe transport and storage of electronic components to protect them from electrostatic discharge. These containers are made from electrostatically conductive polypropylene and comply with the ESD standard DIN EN 61340-5-1. With external dimensions of 200 x 150 x 120 mm and internal dimensions of 162 x 112 x 114 mm, they combine a compact shape with a sufficient volume of 2 liters.
The containers are stackable and characterized by a high load capacity of up to 25 kg. The surface resistance is between 10^4 and 10^11 Ohms, ensuring the safety of sensitive electronic components. The robust design also protects the contents from mechanical damage, dirt, and moisture. The weight per container is 200 g, and the color is standard black. These features make the RAKO Euro container ESD an ideal solution for technical purchasing in areas where electrostatic discharge plays a role.
Material
Material
polypropylene
Stackable
Stackable
yes
Conductivity
Conductivity
volume conductive
Color
Color
black
Height
Height
120 mm
Internal height
114 mm
Internal length
162 mm
Internal width
Internal width
112 mm
Length
Length
200 mm
Width
Width
150 mm
Surface resistance Rs
Surface resistance Rs
104 - 1011 Ω
Volume
Volume
2 l
Load capacity
Load capacity
25 kg
Weight
Weight
200 g
Show accessories
Common

The ESD storage and transport system by UTZ prevents a potential electrostatic discharge. Furthermore the robust plastic containers protect the content against mechanical damage, contamination or moisture.



ESD Storage and transport system for the protection against electrostatic discharge

Electronic components can be destroyed by electrostatic discharges. In order to protect those components against such damages, electronic mounting parts are often transported or stored in containers or on pallets made of electrically conductive plastic.


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image displays multiple black, rectangular trays in various sizes. They are stacked on top of each other, with the largest at the bottom and the smallest on top.
Loose lid ESD 200 x 150 mm
Loose lid RAKO 200 x 150 mm
electrically conductive (DIN EN 61340-5-1)
dpvlink
815

4,42 EUR

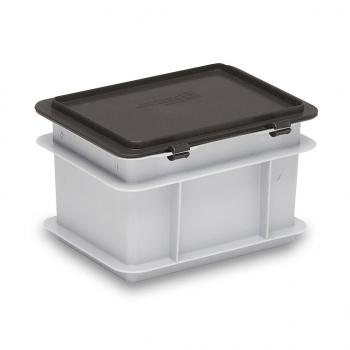

This is a rectangular storage box with a gray body and a black lid. The box has handles and is made of plastic. It appears sturdy and functional.
Hinged lid ESD 200 x 150 mm
Hinged lid RAKO 200 x 150 mm, unmounted
electrically conductive (DIN EN 61340-5-1)
dpvlink
815

4,42 EUR
The image shows a white plastic cap positioned on a black part. The cap has a curved shape with a hook and a flat, pointed side.
RAKO ESD snap lock
Snap lock for RAKO containers
dpvlink
828

0,41 EUR
The image shows a black plastic container with a white closure mechanism. The closure has a curved shape and a straight edge.
RAKO ESD slide closure
Slide closure for RAKO containers
dpvlink
828

0,33 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 302
Complete Catalog 2023 - 2024
Configurators:
Interlayers
Configurators:
Parting Inserts
Configurators:
Imprinting / Printing for boxes

Product Family

Euro containers RAKO

Article image
Article description
Dimensions outside
inside LxWxH [mm]
Material
Stackable
Conductivity
Price
Compare
051302 - RAKO Euro container ESD 200 x 150 x 120 mm
051302
RAKO Euro container ESD 200 x 150 x 120 mm
200 x 150 x 120
162 x 112 x 114
polypropylene
yes
volume conductive
6,64 EUR
051312 - RAKO Euro container ESD 300 x 200 x 120 mm
051312
RAKO Euro container ESD 300 x 200 x 120 mm
300 x 200 x 120
258 x 160 x 115
polypropylene
yes
volume conductive
6,50 EUR
051322 - RAKO Euro container ESD 300 x 200 x 220 mm
051322
RAKO Euro container ESD 300 x 200 x 220 mm
300 x 200 x 220
260 x 160 x 217
polypropylene
yes
volume conductive
11,90 EUR
051406 - RAKO Euro container ESD 400 x 300 x 65 mm
051406
RAKO Euro container ESD 400 x 300 x 65 mm
400 x 300 x 65
358 x 258 x 62
polypropylene
yes
volume conductive
10,24 EUR
051412 - RAKO Euro container ESD 400 x 300 x 120 mm
051412
RAKO Euro container ESD 400 x 300 x 120 mm
400 x 300 x 120
358 x 258 x 114
polypropylene
yes
volume conductive
11,08 EUR
051417 - RAKO Euro container ESD 400 x 300 x 170 mm
051417
RAKO Euro container ESD 400 x 300 x 170 mm
400 x 300 x 170
358 x 258 x 165
polypropylene
yes
volume conductive
11,80 EUR
051422 - RAKO Euro container ESD 400 x 300 x 220 mm
051422
RAKO Euro container ESD 400 x 300 x 220 mm
400 x 300 x 220
358 x 258 x 217
polypropylene
yes
volume conductive
14,45 EUR
051427 - RAKO Euro container ESD 400 x 300 x 270 mm
051427
RAKO Euro container ESD 400 x 300 x 270 mm
400 x 300 x 270
353 x 253 x 267
polypropylene
yes
volume conductive
16,95 EUR
051432 - RAKO Euro container ESD 400 x 300 x 325 mm
051432
RAKO Euro container ESD 400 x 300 x 325 mm
400 x 300 x 325
358 x 258 x 320
polypropylene
yes
volume conductive
18,60 EUR
051607 - RAKO Euro container ESD 600 x 400 x 75 mm
051607
RAKO Euro container ESD 600 x 400 x 75 mm
600 x 400 x 75
552 x 350 x 70
polypropylene
yes
volume conductive
16,10 EUR
051612 - RAKO Euro container ESD 600 x 400 x 120 mm
051612
RAKO Euro container ESD 600 x 400 x 120 mm
600 x 400 x 120
553 x 353 x 114
polypropylene
yes
volume conductive
17,35 EUR
051617 - RAKO Euro container ESD 600 x 400 x 170 mm
051617
RAKO Euro container ESD 600 x 400 x 170 mm
600 x 400 x 170
558 x 358 x 165
polypropylene
yes
volume conductive
22,90 EUR
051622 - RAKO Euro container ESD 600 x 400 x 220 mm
051622
RAKO Euro container ESD 600 x 400 x 220 mm
600 x 400 x 220
559 x 359 x 216
polypropylene
yes
volume conductive
23,25 EUR
-15%
051627 - RAKO Euro container ESD 600 x 400 x 280 mm
051627
RAKO Euro container ESD 600 x 400 x 280 mm
600 x 400 x 280
556 x 356 x 275
polypropylene
yes
volume conductive
RRP 32,35 EUR
Only 27,50 EUR
051632 - RAKO Euro container ESD 600 x 400 x 325 mm
051632
RAKO Euro container ESD 600 x 400 x 325 mm
600 x 400 x 325
558 x 358 x 320
polypropylene
yes
volume conductive
33,40 EUR
051642 - RAKO Euro container ESD 600 x 400 x 425 mm
051642
RAKO Euro container ESD 600 x 400 x 425 mm
600 x 400 x 425
560 x 360 x 422
polypropylene
yes
volume conductive
49,40 EUR
