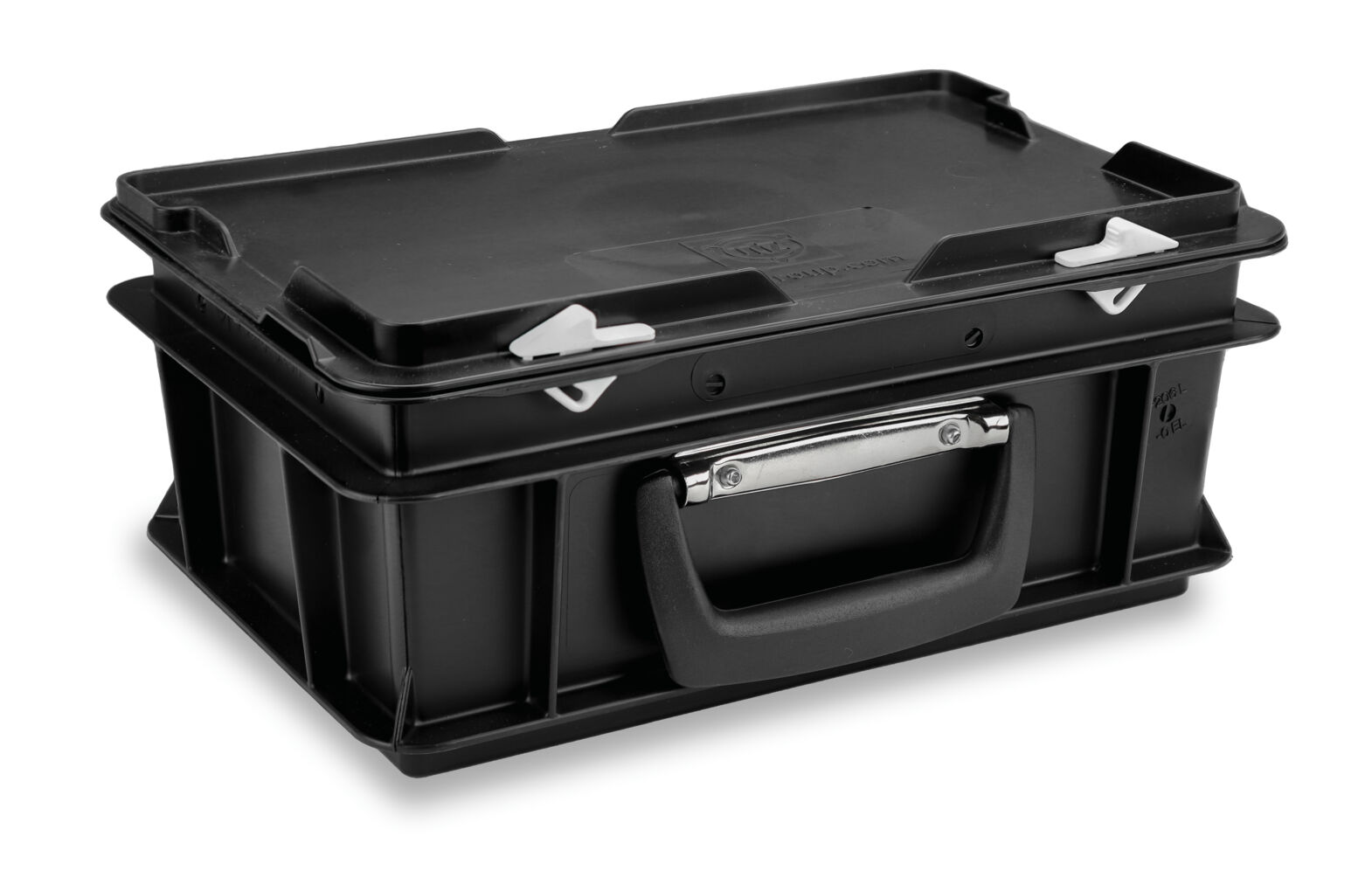

The image shows a black plastic box with a flat lid. It has two snap locks on the side and a sturdy, integrated handle.
RAKO suitcase ESD 300 x 200 x 130 mm
(Product No.: 051312.K)
The image shows a black plastic box with a flat lid. It has two snap locks on the side and a sturdy, integrated handle.
Notice

RAKO suitcase ESD 300 x 200 x 130 mm

RAKO suitcase ESD 300 x 200 x 130 mm

dpvlink:
801
Length :
300 mm
Width :
200 mm
Height :
130 mm
Stackable:
yes
Conductivity:
volume conductive
Dimensions outside:
300 x 200 x 130
Properties:
Further product information
Interlayers
Configure now
Parting Inserts
Configure now
Imprinting / Printing for boxes
Configure now


chevron-down
available available
16,35 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

RAKO suitcase ESD 300 x 200 x 130 mm

The RAKO ESD case by UTZ is an optimal solution for the safe transport and storage of electronic components that need to be protected against electrostatic discharges. Made from black, electrostatically conductive polypropylene, this case provides effective prevention against electrostatic damage in accordance with the ESD standard DIN EN 61340-5-1.
The external dimensions of the case are 300 x 200 x 130 mm, while the internal dimensions are 258 x 160 x 115 mm, resulting in a usable volume of 5 liters. Weighing 460 g and with a usable height of 100 mm, the case is lightweight yet robust enough to protect contents from mechanical damage, contamination, or moisture.
The stackable design allows for efficient use of space in storage and transport. The surface resistance of the material is between 10^4 and 10^11 Ohm, ensuring the safety and integrity of the electronic components.
Length
Length
300 mm
Width
Width
200 mm
Height
Height
130 mm
Stackable
Stackable
yes
Conductivity
Conductivity
volume conductive
Color
Color
black
Internal height
115 mm
Internal length
258 mm
Internal width
Internal width
160 mm
Surface resistance Rs
Surface resistance Rs
104 - 1011 Ω
Material
Material
polypropylene
Volume
Volume
5 l
Weight
Weight
460 g
Common

The ESD storage and transport system by UTZ prevents a potential electrostatic discharge. Furthermore the robust plastic containers protect the content against mechanical damage, contamination or moisture.



ESD Storage and transport system for the protection against electrostatic discharge

Electronic components can be destroyed by electrostatic discharges. In order to protect those components against such damages, electronic mounting parts are often transported or stored in containers or on pallets made of electrically conductive plastic.


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 302
Complete Catalog 2023 - 2024
Configurators:
Interlayers
Configurators:
Parting Inserts
Configurators:
Imprinting / Printing for boxes

Product Family

RAKO Suitcases

Article image
Article description
Stackable
Conductivity
Dimensions outside
Price
Compare
051312.K - RAKO suitcase ESD 300 x 200 x 130 mm
051312.K
RAKO suitcase ESD 300 x 200 x 130 mm
yes
volume conductive
300 x 200 x 130
16,35 EUR
051322.K - RAKO suitcase ESD 300 x 200 x 230 mm
051322.K
RAKO suitcase ESD 300 x 200 x 230 mm
yes
volume conductive
300 x 200 x 230
23,80 EUR
051406.K - RAKO suitcase ESD 400 x 300 x 80 mm
051406.K
RAKO suitcase ESD 400 x 300 x 80 mm
yes
volume conductive
400 x 300 x 80
22,05 EUR
051412.K - RAKO suitcase ESD 400 x 300 x 130 mm
051412.K
RAKO suitcase ESD 400 x 300 x 130 mm
yes
volume conductive
400 x 300 x 130
22,05 EUR
051417.K - RAKO suitcase ESD 400 x 300 x 185 mm
051417.K
RAKO suitcase ESD 400 x 300 x 185 mm
yes
volume conductive
400 x 300 x 185
24,30 EUR
051432.K - RAKO suitcase ESD 400 x 300 x 340 mm
051432.K
RAKO suitcase ESD 400 x 300 x 340 mm
yes
volume conductive
400 x 300 x 340
37,60 EUR
051607.K - RAKO suitcase ESD 600 x 400 x 90 mm
051607.K
RAKO suitcase ESD 600 x 400 x 90 mm
yes
volume conductive
600 x 400 x 90
36,90 EUR
051612.K - RAKO suitcase ESD 600 x 400 x 132 mm
051612.K
RAKO suitcase ESD 600 x 400 x 132 mm
yes
volume conductive
600 x 400 x 132
40,10 EUR
051617.K - RAKO suitcase ESD 600 x 400 x 185 mm
051617.K
RAKO suitcase ESD 600 x 400 x 185 mm
yes
volume conductive
600 x 400 x 185
43,95 EUR
051622.K - RAKO suitcase ESD 600 x 400 x 235 mm
051622.K
RAKO suitcase ESD 600 x 400 x 235 mm
yes
volume conductive
600 x 400 x 235
53,35 EUR
051632.K - RAKO suitcase ESD 600 x 400 x 340 mm
051632.K
RAKO suitcase ESD 600 x 400 x 340 mm
yes
volume conductive
600 x 600 x 340
58,20 EUR
051642.K - RAKO suitcase ESD 600 x 400 x 440 mm
051642.K
RAKO suitcase ESD 600 x 400 x 440 mm
yes
volume conductive
600 x 400 x 440
72,75 EUR
