PE foam, dissipative 353x253x6 mm

(Product No.: 4550.06.0253)

PE foam, dissipative 353x253x6 mm

Name: PE foam, dissipative 353x253x6 mm
SKU: 4550.06.0253
Price: 1.97 EUR
Availability: InStock

ArticleNo: 4550.06.0253

PE foam, dissipative 353x253x6 mm

dpvlink:

700

Length :

353 mm

Width :

253 mm

Thickness :

6 mm

Properties:

Further product information

Width x Length x Thickness:

Availability: available

available

1,97 EUR

excl. 19% tax

1 PCE

Compare

Notice

Product Info

PE foam, dissipative 353x253x6 mm

The PE foam with dimensions 353x253x6 mm is made from high-quality polyethylene and is characterized by its electrostatic dissipative capability. This closed-cell, cross-linked foam is corrosion-free and abrasion-resistant, making it exceptionally durable. With a material density of 46 kg/cm³ and a maximum operating temperature of 90 °C, it is robust against environmental influences.
The surface of the foam offers a typical resistance of 10^5 to 10^7 ohms. On the skin side, the resistance ranges from 10^5 to 10^6 ohms, while the non-skin side shows a resistance of 10^7 to 10^8 ohms. These properties make it ideal for applications that comply with ESD standards DIN EN 61340-5-1, such as plug-in foam, interlayers for containers, partition walls for containers, and workplace mats.
In classic black, the PE foam not only offers technical advantages but also an attractive appearance for any application area.

Details

Length Length: 353 mm
Width Width: 253 mm
Thickness Thickness: 6 mm
Color Color: black
Conductivity Conductivity: dissipative
Volume resistance Volume resistance: 10⁵ - 10⁷ Ω
Material Material: polyethylene
Material density Material density: 46 kg/cm³
Operating temperature Operating temperature: 90 °C

Pictograms

Material PE

Abrasion-resistant and corrosion-free, particularly low weight, thickness 3 mm / 6 mm / 10 mm, electrostatically dissipative (suitable as intermediate layers and compartments for containers). Typical surface resistance: R = 10^5 –10^8 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 294

Complete Catalog 2023 - 2024

Product Family

PE foam interlayers, dissipative

Article image

Article description

Length

Width

Thickness

Price

Compare

4550.03.0153
PE foam, dissipative 253x153x3 mm

253 mm

153 mm

3 mm

0,82 EUR

4550.03.0253
PE foam, dissipative 353x253x3 mm

353 mm

253 mm

3 mm

1,50 EUR

4550.03.0255.KLT
PE foam, dissipative 340x255x3 mm

340 mm

255 mm

3 mm

1,50 EUR

4550.03.0300
PE foam, dissipative 300x300x3 mm

300 mm

3 mm

1,40 EUR

4550.03.0353
PE foam, dissipative 553x353x3 mm

553 mm

353 mm

3 mm

2,92 EUR

4550.03.0355.KLT
PE foam, dissipative 540x355x3 mm

540 mm

355 mm

3 mm

2,92 EUR

4550.03.Z
PE foam, dissipative, cutting

Cutting mm

3 mm

4550.06.0153
PE foam, dissipative 253x153x6 mm

253 mm

153 mm

6 mm

0,95 EUR

4550.06.0253
PE foam, dissipative 353x253x6 mm

353 mm

253 mm

6 mm

1,97 EUR

4550.06.0255.KLT
PE foam, dissipative 340x255x6 mm

340 mm

255 mm

6 mm

1,83 EUR

4550.06.0300
PE foam, dissipative 300x300x6 mm

300 mm

6 mm

2,10 EUR

4550.06.0353
PE foam, dissipative 553x353x6 mm

553 mm

353 mm

6 mm

3,95 EUR

4550.06.0355.KLT
PE foam, dissipative 540x355x6 mm

540 mm

355 mm

6 mm

4,10 EUR

4550.06.0550
PE foam, dissipative 750x550x6 mm

750 mm

550 mm

6 mm

10,60 EUR

4550.06.Z
PE foam, dissipative, cutting

Cutting mm

6 mm

4550.10.0253
PE foam, dissipative 353x253x10 mm

353 mm

253 mm

10 mm

3,05 EUR

4550.10.0255.KLT
PE foam, dissipative 340x255x10 mm

340 mm

255 mm

10 mm

2,98 EUR

4550.10.0353
PE foam, dissipative 553x353x10 mm

553 mm

353 mm

10 mm

5,60 EUR

4550.10.0355.KLT
PE foam, dissipative 540x355x10 mm

540 mm

355 mm

10 mm

5,94 EUR

4550.10.0550
PE foam, dissipative 750x550x10 mm

750 mm

550 mm

10 mm

13,80 EUR

4550.10.Z
PE foam, dissipative, cutting

Cutting mm

10 mm

Customers who bought this product also bought the following products:

PE foam, dissipative 353x253x3 mm

PE foam 353 x 253 x 3 mm
Black, electrostattically dissipative,
(DIN EN 61340-5-1)

dpvlink

700

1,50 EUR

The image shows a black, flat plastic box with an open top. It has straight edges and is stackable, ideal for storage or transporting items.

RAKO Euro container ESD 400 x 300 x 65 mm...

Euro container RAKO 400x300x65 mm /
358x258x62 mm,
electrically conductive (DIN EN 61340-5-1)

dpvlink

797

10,24 EUR

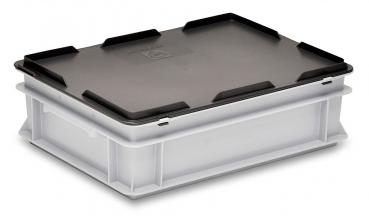

The image displays a rectangular storage box. It has a gray body and a black lid. The box features grippy edges and is sturdily constructed, ideal for storage.
