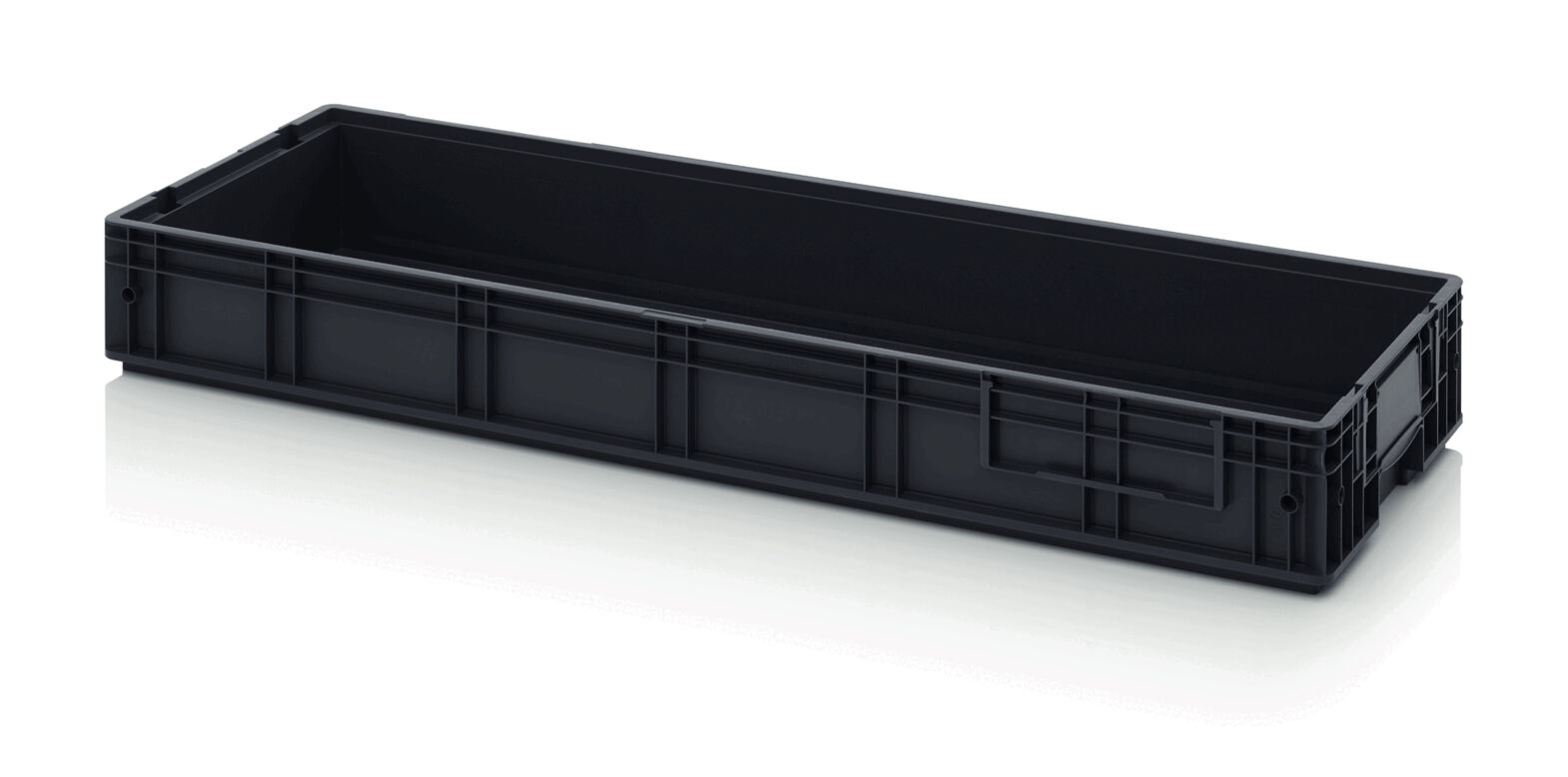

It is a long, rectangular box made of black plastic. It has tall, straight walls and a smooth, open top, suitable for storing or transporting items.
KLT container Light ESD 1200 x 400 x 147 mm
(Product No.: KLT-12040147.ESD)
It is a long, rectangular box made of black plastic. It has tall, straight walls and a smooth, open top, suitable for storing or transporting items.
Notice / Inquire

KLT container Light ESD 1200 x 400 x 147 mm

KLT container Light ESD 1200 x 400 x 147 mm

dpvlink:
22256
Volume:
60,3 l
Additional:
base reinforced
Dimensions outside:
1200 x 400 x 147
inside LxWxH [mm]:
1142 x 360 x 144,5
Material:
polypropylene
Properties:
Note:
Also available as RL version with drainage holes
Further product information
Interlayers
Configure now
Parting Inserts
Configure now


chevron-down
available available
45,54 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

KLT container Light ESD 1200 x 400 x 147 mm

The AUER KLT container Light ESD, made from black polypropylene, is specifically designed for the demands of automated production environments. With its external dimensions of 1200 x 400 x 147 mm and a volume of 60.3 liters, it provides ample space for the safe storage and transport of sensitive electronic components. The internal dimensions of 1142 x 360 x 144.5 mm ensure optimal space utilization.
The electrostatic conductivity of the material meets the ESD standard DIN EN 61340-5-1, with a specific surface resistance of 10^3 to 10^10 ohms, which allows for the safe handling of electrostatically endangered components. The container also features a reinforced closed bottom, providing additional stability. Other functional features such as integrated lid slots, an adhesive area for barcodes, and noise-dampening properties on conveyor belts make this container an ideal solution for the industry.
Volume
Volume
60,3 l
Additional
Additional
base reinforced
Material
Material
polypropylene
Color
Color
black
Conductivity
Conductivity
conductive
Volume resistance
Volume resistance
103 - 1010 Ω
Also available as RL version with drainage holes
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 299
Complete Catalog 2023 - 2024
Configurators:
Interlayers
Configurators:
Parting Inserts

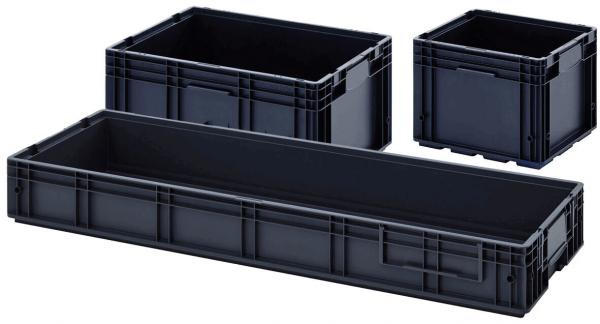

Product Family

KLT container Light

The ESD-R-KLT Light containers are perfectly matched to automated production processes and are suitable for use in various production steps. Sensitive electronic components can be stored and transported without any problems thanks to the electrically conductive plastic.

  • With composite base
  • Integrated lid slots
  • With adhesive surface for barcode
  • Noise-reducing on conveyor lines


Material: polypropylene

Color: black

Typical volume resistance 103-1010 Ohm

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Volume
Additional
Dimensions outside
inside LxWxH [mm]
Material
Price
Compare
KLT-R.3020150.ESD - KLT container Light ESD 300 x 200 x 150 mm
KLT-R.3020150.ESD
KLT container Light ESD 300 x 200 x 150 mm
5,3 l
base smooth
300 x 200 x 150
243 x 162 x 129,5
polypropylene
6,60 EUR
KLT-R.4030150.ESD - KLT container Light ESD 400 x 300 x 150 mm
KLT-R.4030150.ESD
KLT container Light ESD 400 x 300 x 150 mm
10 l
sturdy base ribbing
400 x 300 x 150
346 x 265 x 109,5
polypropylene
11,60 EUR
KLT-R.4030290.ESD - KLT container Light ESD 400 x 300 x 280 mm
KLT-R.4030290.ESD
KLT container Light ESD 400 x 300 x 280 mm
22 l
sturdy base ribbing
400 x 300 x 280
346 x 265 x 242
polypropylene
17,35 EUR
KLT-R.6040150.ESD - KLT container Light ESD 600 x 400 x 150 mm
KLT-R.6040150.ESD
KLT container Light ESD 600 x 400 x 150 mm
22 l
sturdy base ribbing
600 x 400 x 150
544 x 364 x 109,5
polypropylene
19,35 EUR
KLT-R.6040290.ESD - KLT container Light ESD 600 x 400 x 280 mm
KLT-R.6040290.ESD
KLT container Light ESD 600 x 400 x 280 mm
48 l
sturdy base ribbing
600 x 400 x 280
544 x 364 x 242
polypropylene
28,10 EUR
KLT-12040147.ESD - KLT container Light ESD 1200 x 400 x 147 mm
KLT-12040147.ESD
KLT container Light ESD 1200 x 400 x 147 mm
60,3 l
base reinforced
1200 x 400 x 147
1142 x 360 x 144,5
polypropylene
45,54 EUR
