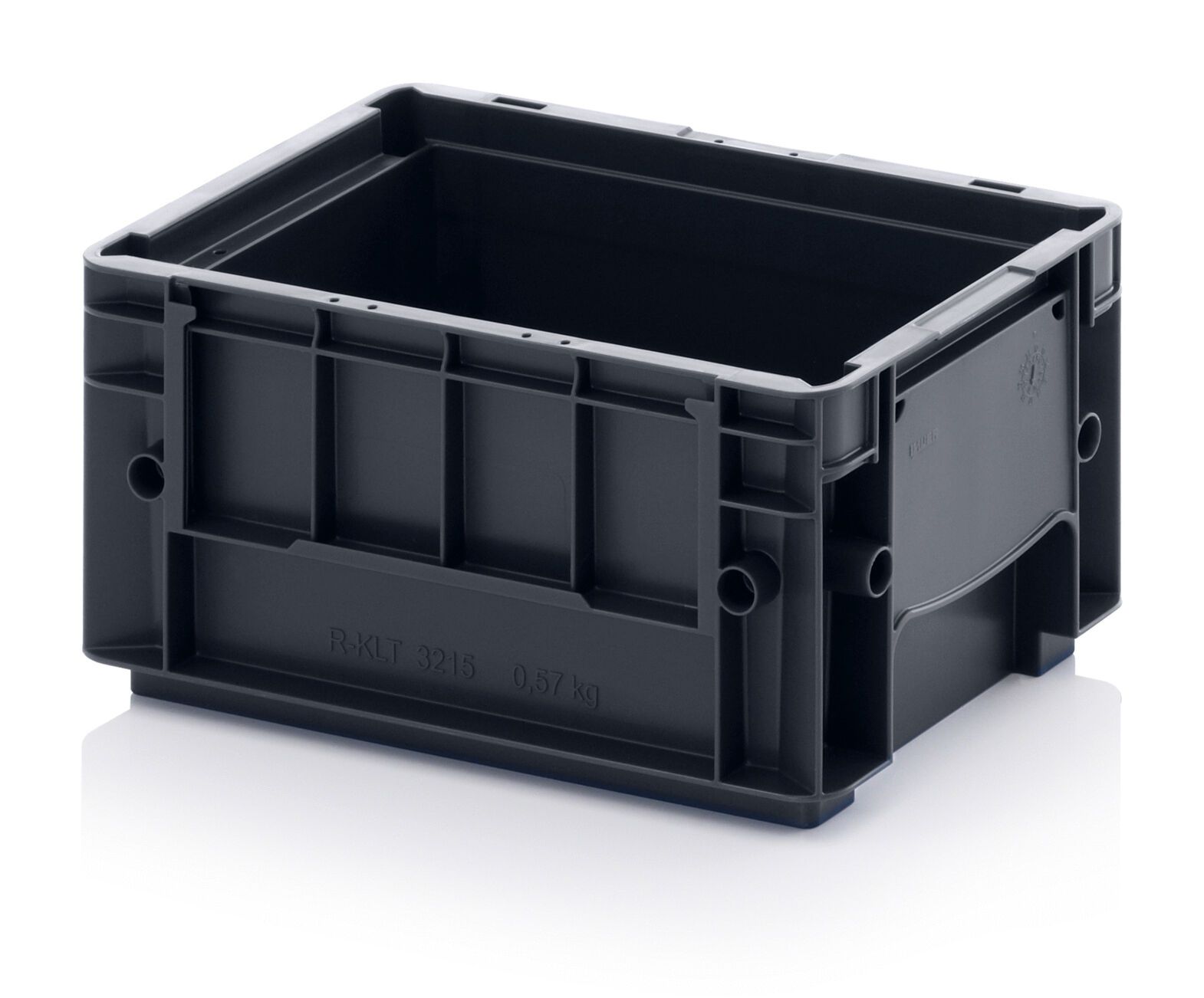

It is a black plastic box without a lid. It has a rectangular shape, is sturdy, and has side handles as well as several vertical grooves on the walls.
KLT container Light ESD 300 x 200 x 150 mm
(Product No.: KLT-R.3020150.ESD)
It is a black plastic box without a lid. It has a rectangular shape, is sturdy, and has side handles as well as several vertical grooves on the walls.
Notice

KLT container Light ESD 300 x 200 x 150 mm

KLT container Light ESD 300 x 200 x 150 mm

dpvlink:
22256
Volume:
5,3 l
Additional:
base smooth
Dimensions outside:
300 x 200 x 150
inside LxWxH [mm]:
243 x 162 x 129,5
Material:
polypropylene
Properties:
Note:
Also available as RL version with drainage holes
Further product information
Parting Inserts
Configure now
Interlayers
Configure now


chevron-down
at short notice at short notice
6,60 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

KLT container Light ESD 300 x 200 x 150 mm

The AUER KLT container Light ESD offers an optimal solution for the safe transport and storage of sensitive electronic components. Equipped with a volume of 5.3 liters and external dimensions of 300 x 200 x 150 mm, this container features a smooth, closed bottom surface and integrated lid slots for easy handling and stackability. The interior measures 243 x 162 x 129.5 mm, providing ample space for various components.
Made from electrostatically conductive polypropylene, it ensures compliance with the ESD standard DIN EN 61340-5-1, with specific volume and surface resistance from 10^3 to 10^10 ohms. These characteristics make the container ideal for use in automated production environments, where electronic components must be protected from static discharge. Additionally, its noise-damping properties on conveyor belts ensure quiet operation. The black color and the option to attach a barcode increase its functionality and flexibility for use in various manufacturing areas.
Volume
Volume
5,3 l
Additional
Additional
base smooth
Material
Material
polypropylene
Color
Color
black
Conductivity
Conductivity
conductive
Volume resistance
Volume resistance
103 - 1010 Ω
Also available as RL version with drainage holes
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 299
Complete Catalog 2023 - 2024
Configurators:
Parting Inserts
Configurators:
Interlayers

Product Family

KLT container Light

Article image
Article description
Volume
Additional
Dimensions outside
inside LxWxH [mm]
Material
Price
Compare
KLT-R.3020150.ESD - KLT container Light ESD 300 x 200 x 150 mm
KLT-R.3020150.ESD
KLT container Light ESD 300 x 200 x 150 mm
5,3 l
base smooth
300 x 200 x 150
243 x 162 x 129,5
polypropylene
6,60 EUR
KLT-R.4030150.ESD - KLT container Light ESD 400 x 300 x 150 mm
KLT-R.4030150.ESD
KLT container Light ESD 400 x 300 x 150 mm
10 l
sturdy base ribbing
400 x 300 x 150
346 x 265 x 109,5
polypropylene
11,60 EUR
KLT-R.4030290.ESD - KLT container Light ESD 400 x 300 x 280 mm
KLT-R.4030290.ESD
KLT container Light ESD 400 x 300 x 280 mm
22 l
sturdy base ribbing
400 x 300 x 280
346 x 265 x 242
polypropylene
17,35 EUR
KLT-R.6040150.ESD - KLT container Light ESD 600 x 400 x 150 mm
KLT-R.6040150.ESD
KLT container Light ESD 600 x 400 x 150 mm
22 l
sturdy base ribbing
600 x 400 x 150
544 x 364 x 109,5
polypropylene
19,35 EUR
KLT-R.6040290.ESD - KLT container Light ESD 600 x 400 x 280 mm
KLT-R.6040290.ESD
KLT container Light ESD 600 x 400 x 280 mm
48 l
sturdy base ribbing
600 x 400 x 280
544 x 364 x 242
polypropylene
28,10 EUR
KLT-12040147.ESD - KLT container Light ESD 1200 x 400 x 147 mm
KLT-12040147.ESD
KLT container Light ESD 1200 x 400 x 147 mm
60,3 l
base reinforced
1200 x 400 x 147
1142 x 360 x 144,5
polypropylene
45,54 EUR
