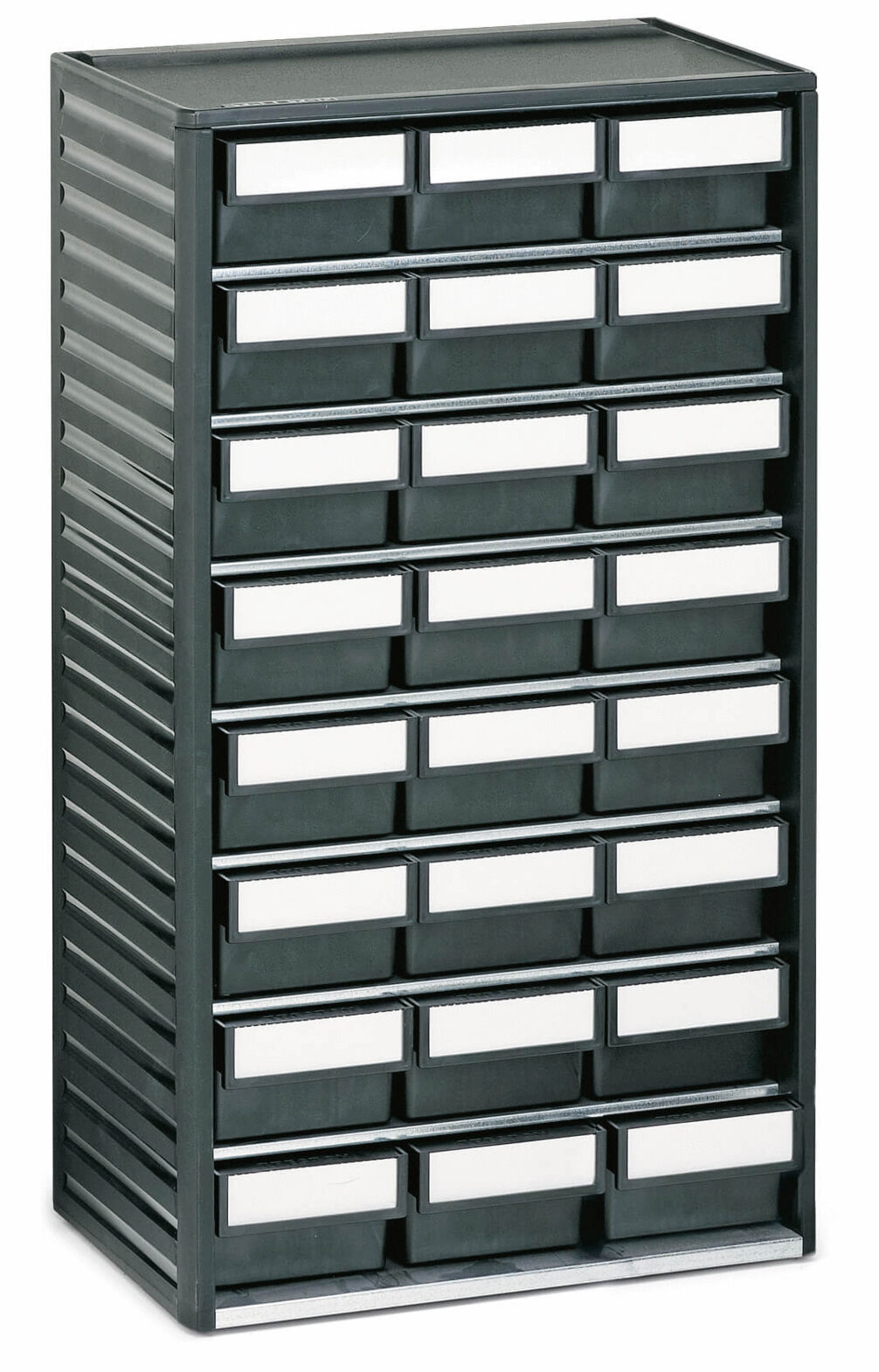

The image shows a rectangular storage cabinet made of dark plastic with several small drawers arranged horizontally. Each drawer has a transparent front.
Cabinet A550 ESD, with 24 drawers
(Product No.: 050.020)
The image shows a rectangular storage cabinet made of dark plastic with several small drawers arranged horizontally. Each drawer has a transparent front.
Notice

Cabinet A550 ESD, with 24 drawers

Cabinet A550 ESD, with 24 drawers

dpvlink:
5264
Width :
310 mm
Height :
550 mm
Depth :
180 mm
Shelves:
7
Drawers:
24
Dimensions cavities:
92x62x170 mm
Properties:
Further product information

chevron-down
at short notice at short notice
159,35 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Cabinet A550 ESD, with 24 drawers

The ESD magazine A550 from Treston is specifically designed for the safe and efficient storage of small parts to prevent electrostatic discharges. This product complies with the ESD standard DIN EN 61340-5-1 and offers a robust storage solution with its 24 drawers made of conductive polypropylene and shelves made of galvanized steel. The external dimensions of the magazine are 180x310x550 mm (DxWxH), and each drawer measures 92x62x170 mm.
The construction of the magazine ensures conductivity according to strict industry standards and is suitable for temperatures from -20 to 70 °C. With a width of 310 mm, a height of 550 mm, and a depth of 180 mm, the black ESD magazine offers a compact and space-saving storage solution. The manufacturer Treston guarantees the durability and functionality of this product through the use of high-quality polypropylene and steel.
Width
Width
310 mm
Height
Height
550 mm
Depth
Depth
180 mm
Shelves
Shelves
7
Drawers
Drawers
24
Dimensions cavities
Dimensions cavities
92x62x170 mm
Cleanroom
Cleanroom
no
Color
Color
black
Conductivity
Conductivity
conductive
Material
Material
polypropylene / steel
ESD
ESD
yes
Temperature range
Temperature range
-20 - 70 °C
Show accessories
Common

The small parts magazines in the A290/550 series from Treston are ideal solutions for space-saving storage. They can be mounted individually on the wall or combined in a practical swivel stand. The drawers are made of conductive polystyrene, while the shelves are made of galvanized steel. Each magazine is equipped with a connection for earthing cables to safely prevent electrostatic charges in accordance with the ESD standard DIN EN 61340-5-1.


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Spares

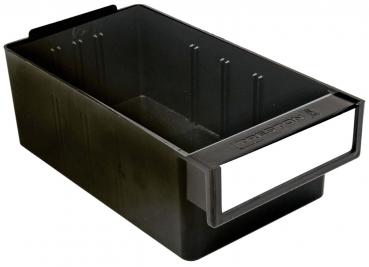

The image shows a black, rectangular plastic storage box. It has an open top edge and a wide front side with a flat handle strip. The inside is smooth.
Single drawer ESD incl. labels
ESD drawer 170 x 92 x 62 mm outside
(LxWxH)
electrically conductive (DIN EN 61340-5-1)
Part no. L-64-4 ESD
dpvlink
5267

5,00 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 337
Complete Catalog 2023 - 2024

Product Family

Cabinets series A550 (D180 x W310 x H550)

Article image
Article description
Width
Height
Depth
Shelves
Drawers
Dimensions cavities
Price
Compare
050.015 - Cabinet A550 ESD, with 48 drawers
050.015
Cabinet A550 ESD, with 48 drawers
310 mm
550 mm
180 mm
11
48
69x40x170 mm
156,25 EUR
050.020 - Cabinet A550 ESD, with 24 drawers
050.020
Cabinet A550 ESD, with 24 drawers
310 mm
550 mm
180 mm
7
24
92x62x170 mm
159,35 EUR
Show Compare List (0)
