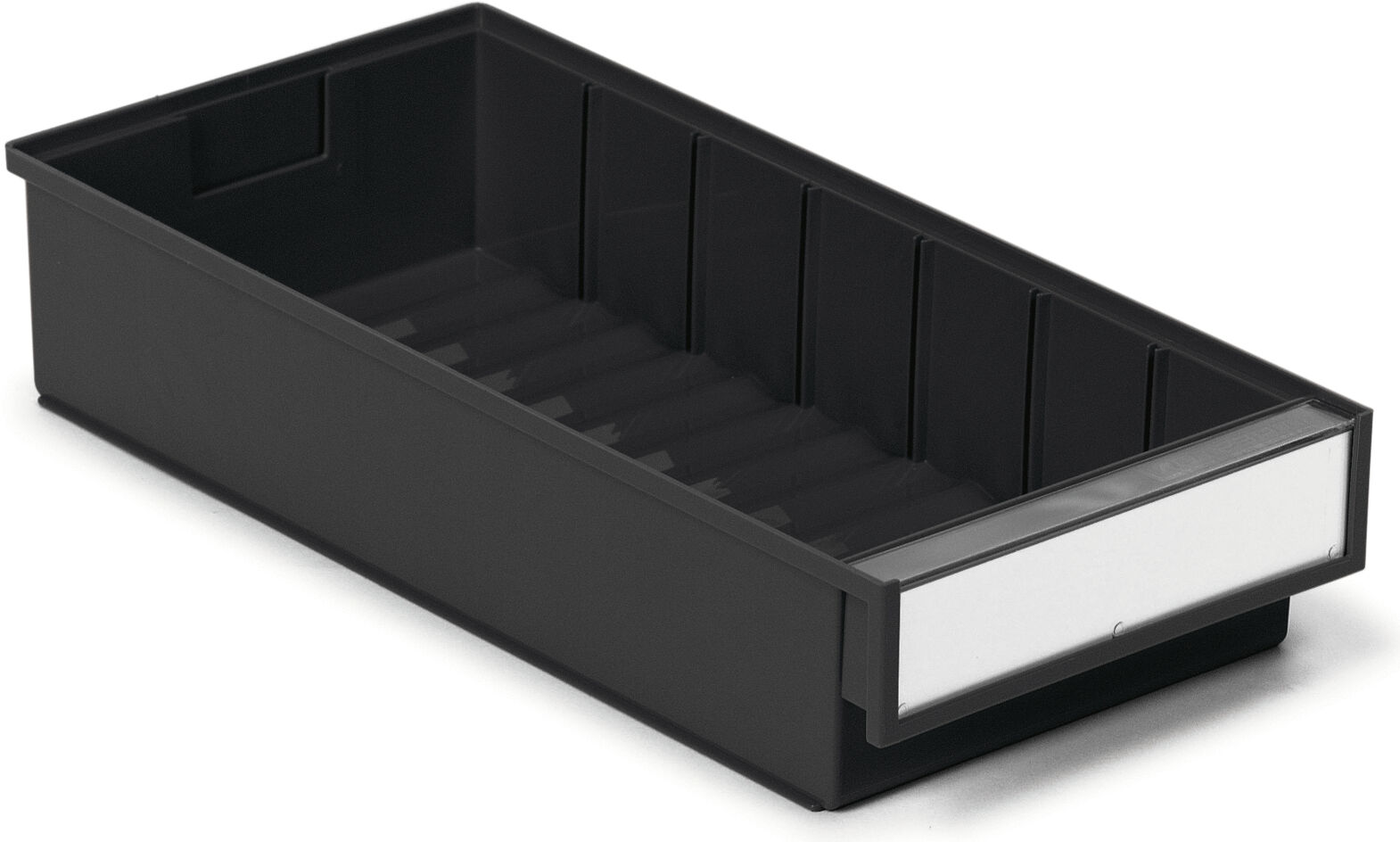

The image shows an elongated, rectangular drawer in black, with a perforated bottom. A white, writable front panel is attached on one side.

Drawer with corrugated base ESD

(Product No.: 050.130)

The image shows an elongated, rectangular drawer in black, with a perforated bottom. A white, writable front panel is attached on one side.

(Product No.: 050.130)

Drawer with corrugated base ESD

ArticleNo: 050.130

Drawer with corrugated base ESD

dpvlink:

5296

Width :

186 mm

Height :

82 mm

Depth :

400 mm

Internal width:

167 mm

Internal height:

70 mm

Internal depth:

357 mm

Volume:

4.2 l

Properties:

ESD-protective

Further product information

Width x Height x Depth / Volume:

Availability: available

available

available

14,35 EUR

excl. 19% tax

1 PCE

Notice / Inquire

Product Info

Drawer with corrugated base ESD

The ESD drawer from Treston is specifically designed for metric shelving systems and supports efficient storage of sensitive electronic components. This model, measuring 400 x 186 x 82 mm (LxWxH) externally and with an internal dimension of 167 x 70 x 357 mm, offers a volume of 4.2 liters. The drawer is made from conductive polypropylene, making it electrically conductive according to the ESD standard DIN EN 61340-5-1 and suitable for use in cleanrooms.
The black drawer features a corrugated bottom that facilitates the grasping of items and is stackable to allow flexible use of space. Additional dividers can be used for individual compartmentalization. The temperature range from -20 to 70 °C ensures a wide range of applicability. Included in the delivery are the drawer, a label, and a clear protective cover for labeling and protecting the contents.

Details

Width Width: 186 mm
Height Height: 82 mm
Depth Depth: 400 mm
Internal width Internal width: 167 mm
Internal height: 70 mm
Internal depth: 357 mm
Volume Volume: 4.2 l
Cleanroom Cleanroom: suitable
Color Color: black
Conductivity Conductivity: conductive
Material Material: polypropylene
ESD ESD: yes
Temperature range Temperature range: -20 - 70 °C

ESD protective

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Complete Catalog 2023 - 2024

Product Family

Drawers / storage box ESD

ESD drawers for shelf systems - Ideal solution for storing and organizing components in ESD-sensitive environments.

Compatibility: Specially designed for metric shelf systems with depths of 300, 400, 500 and 600 mm

User-friendly: Corrugated base for easy gripping and efficient use

Stackability: drawers can be stacked at the same width, even at different lengths

Flexibility: Matching partitions enable individual subdivisions

Scope of delivery: Drawer, label and transparent cover

ESD protection: In compliance with the ESD standard DIN EN 61340-5-1 for protection against electrostatic discharge

Article image

Article description

Width

Height

Depth

Internal width

Internal height

Internal depth

Volume

Price

Compare

050.115 - ESD Drawer with corrugated base

050.115
ESD Drawer with corrugated base

92 mm

82 mm

300 mm

75 mm

70 mm

257 mm

1.3 l

050.125 - Drawer with corrugated base ESD

050.125
Drawer with corrugated base ESD

92 mm

82 mm

400 mm

75 mm

70 mm

357 mm

1.9 l

050.132 - Drawer with corrugated base ESD

050.132
Drawer with corrugated base ESD

92 mm

82 mm

500 mm

75 mm

70 mm

457 mm

2.4 l

050.120 - Drawer with corrugated base ESD

050.120
Drawer with corrugated base ESD

186 mm

82 mm

300 mm

167 mm

70 mm

257 mm

3.0 l

050.130 - Drawer with corrugated base ESD

050.130
Drawer with corrugated base ESD

186 mm

82 mm

400 mm

167 mm

70 mm

357 mm

4.2 l

050.133 - Drawer with corrugated base ESD

050.133
Drawer with corrugated base ESD

186 mm

82 mm

500 mm

167 mm

70 mm

457 mm

5,3 l

050.135 - Drawer with corrugated base ESD

050.135
Drawer with corrugated base ESD

186 mm

82 mm

600 mm

167 mm

70 mm

557 mm

6.5 l

050.131 - Drawer with corrugated base ESD

050.131
Drawer with corrugated base ESD

132 mm

100 mm

400 mm

110 mm

90 mm

357 mm

3.2 l

050.134 - Drawer with corrugated base ESD

050.134
Drawer with corrugated base ESD

132 mm

100 mm

500 mm

110 mm

90 mm

457 mm

4,5 l

050.136 - Drawer with corrugated base ESD

050.136
Drawer with corrugated base ESD

132 mm

100 mm

600 mm

110 mm

90 mm

557 mm

5.5 l
