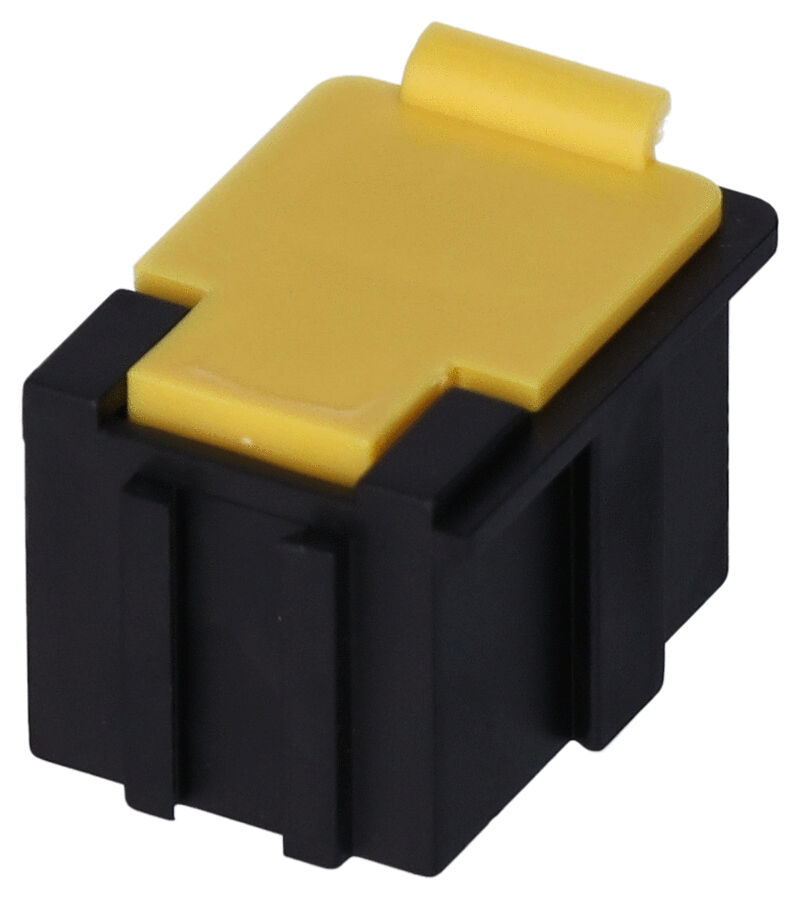

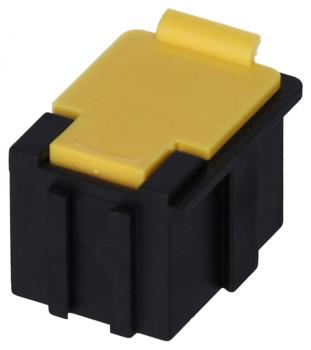

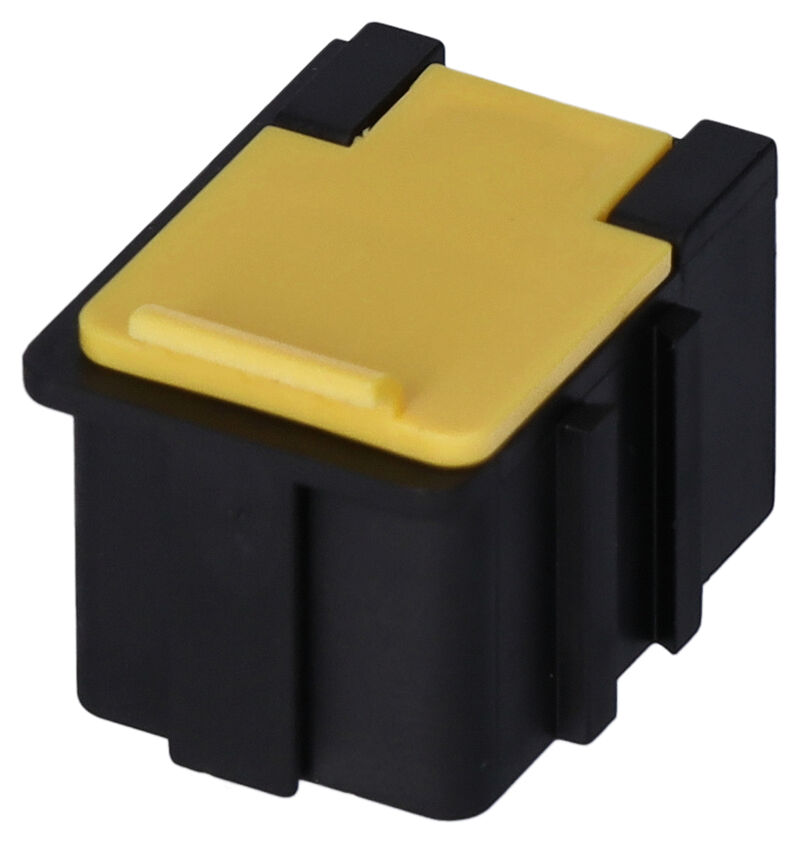

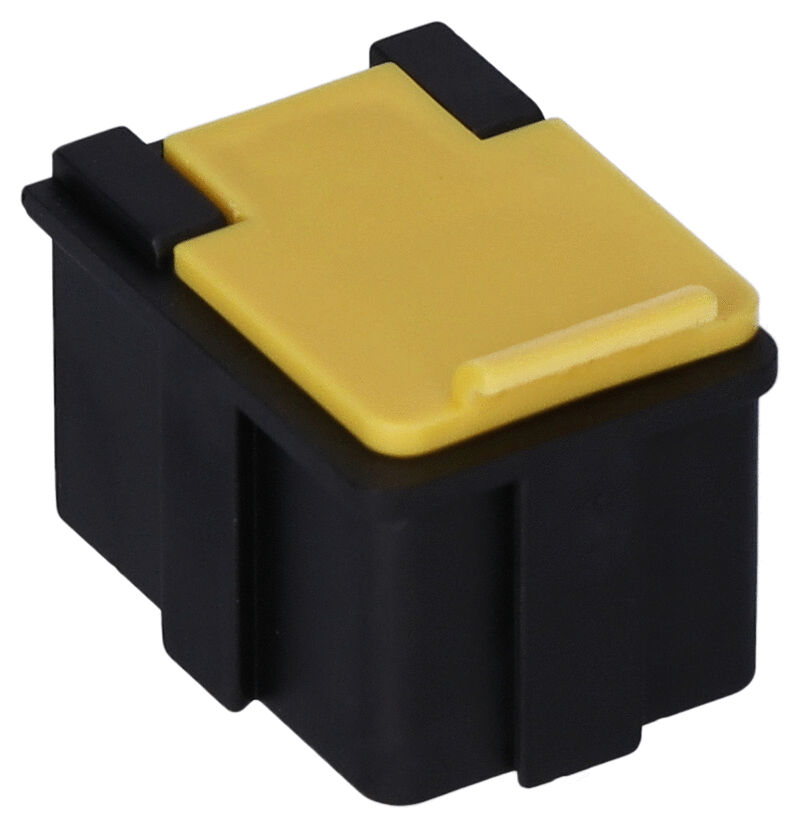

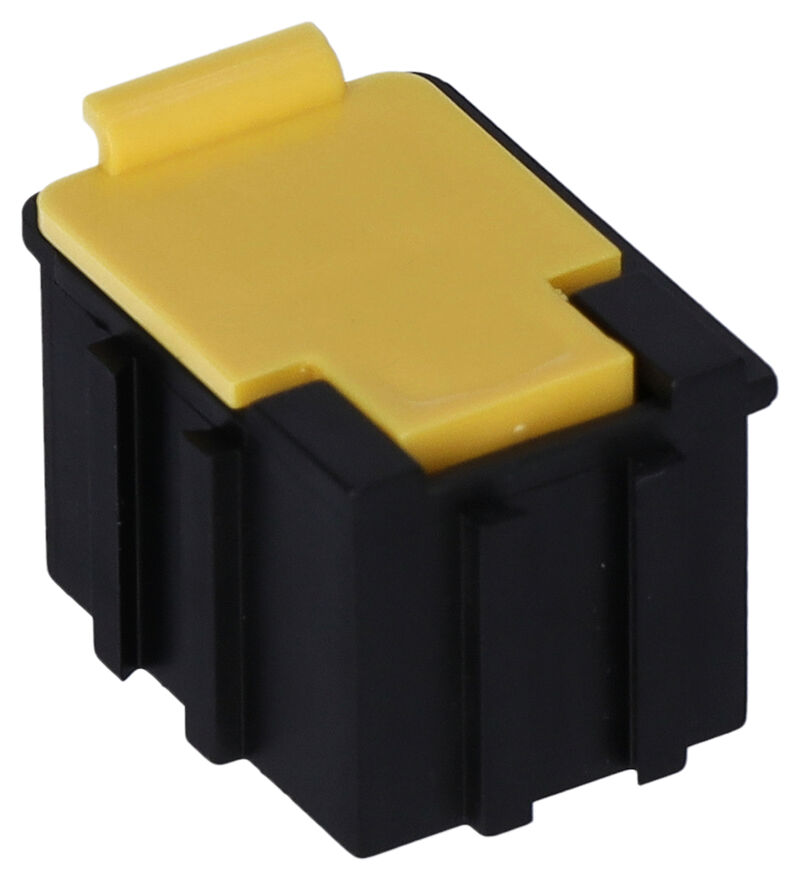

SMD folding box size N1 (small), conductive/dissipative
SMD folding box size N1 (small), conductive/dissipative
The SMD folding box N1 from Licefa offers an optimal solution for the storage and provision of SMD components. This box is specifically designed for use in technical environments, as it has conductive and dissipative properties. The box meets the ESD standard DIN EN 61340-5-1, thus supporting the safe handling of electronically sensitive components.The external dimensions are 29.4 mm in length and 21.8 mm in width, with a height of 21 mm. Inside, the box provides a width of 12 mm, a height of 15 mm, and a length of 16 mm. Its low weight of only 4.7 g and a continuous use temperature range from -20 to 80 °C make it especially practical for daily use.
The box features a yellow dissipative lid and a black conductive base, which not only ensures clear visual distinction but also enhances functionality. The surface resistance is between 10^3 and 10^5 Ω, ensuring reliable conductivity. The lid design allows for easy replacement and secure closing by spring pressure. Labels for marking can also be easily attached, facilitating organization and identification.
Details
- Color Color
- black / yellow
- Height Height
- 21 mm
- Internal height
- 15 mm
- Internal length
- 16 mm
- Internal width Internal width
- 12 mm
- Length Length
- 29.4 mm
- Width Width
- 21.8 mm
- Conductivity Conductivity
- dissipative / conductive
- Surface resistance Rs Surface resistance Rs
- 103 - 105 Ω
- Version Version
- with yellow lid
- Size Size
- N1 (small)
- Continuous use temperature Continuous use temperature
- -20-80 °C
- Weight Weight
- 4.7 g
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
SMD Folding boxes, conductive/dissipative
Article image
Article description
Color
Height
Internal height
Internal length
Internal width
Length
Width
Conductivity
Surface resistance Rs
Version
Size
Continuous use temperature
Weight
Price
Compare
yellow / black
21 mm
15 mm
16 mm
12 mm
29.4 mm
21.8 mm
dissipative / conductive
103 - 105 Ω
with black lid
N1 (small)
-20-80 °C
4.7 g
yellow / black
21 mm
15 mm
12 mm
37 mm
29.4 mm
42.4 mm
dissipative / conductive
103 - 105 Ω
with black lid
N2 (medium)
-20-80 °C
8.3 g
yellow / black
21 mm
15 mm
41 mm
37 mm
57.4 mm
42.3 mm
dissipative / conductive
103 - 105 Ω
with black lid
N3 (large)
-20-80 °C
13.7 g
yellow / black
21 mm
15 mm
68 mm
57 mm
85.3 mm
63 mm
dissipative / conductive
103 - 105 Ω
with black lid
N4 (maxi)
-20-80 °C
26.5 g
black / yellow
21 mm
15 mm
16 mm
12 mm
29.4 mm
21.8 mm
dissipative / conductive
103 - 105 Ω
with yellow lid
N1 (small)
-20-80 °C
4.7 g
black / yellow
21 mm
15 mm
12 mm
37 mm
29.4 mm
42.4 mm
dissipative / conductive
103 - 105 Ω
with yellow lid
N2 (medium)
-20-80 °C
8.3 g
black / yellow
21 mm
15 mm
41 mm
37 mm
57.4 mm
42.3 mm
dissipative / conductive
103 - 105 Ω
with yellow lid
N3 (large)
-20-80 °C
13.7 g
black / yellow
21 mm
15 mm
68 mm
57 mm
85.3 mm
63 mm
dissipative / conductive
103 - 105 Ω
with yellow lid
N4 (maxi)
-20-80 °C
26.5 g
