SMD folding box size N3 (large), conductive/dissipative
SMD folding box size N3 (large), conductive/dissipative

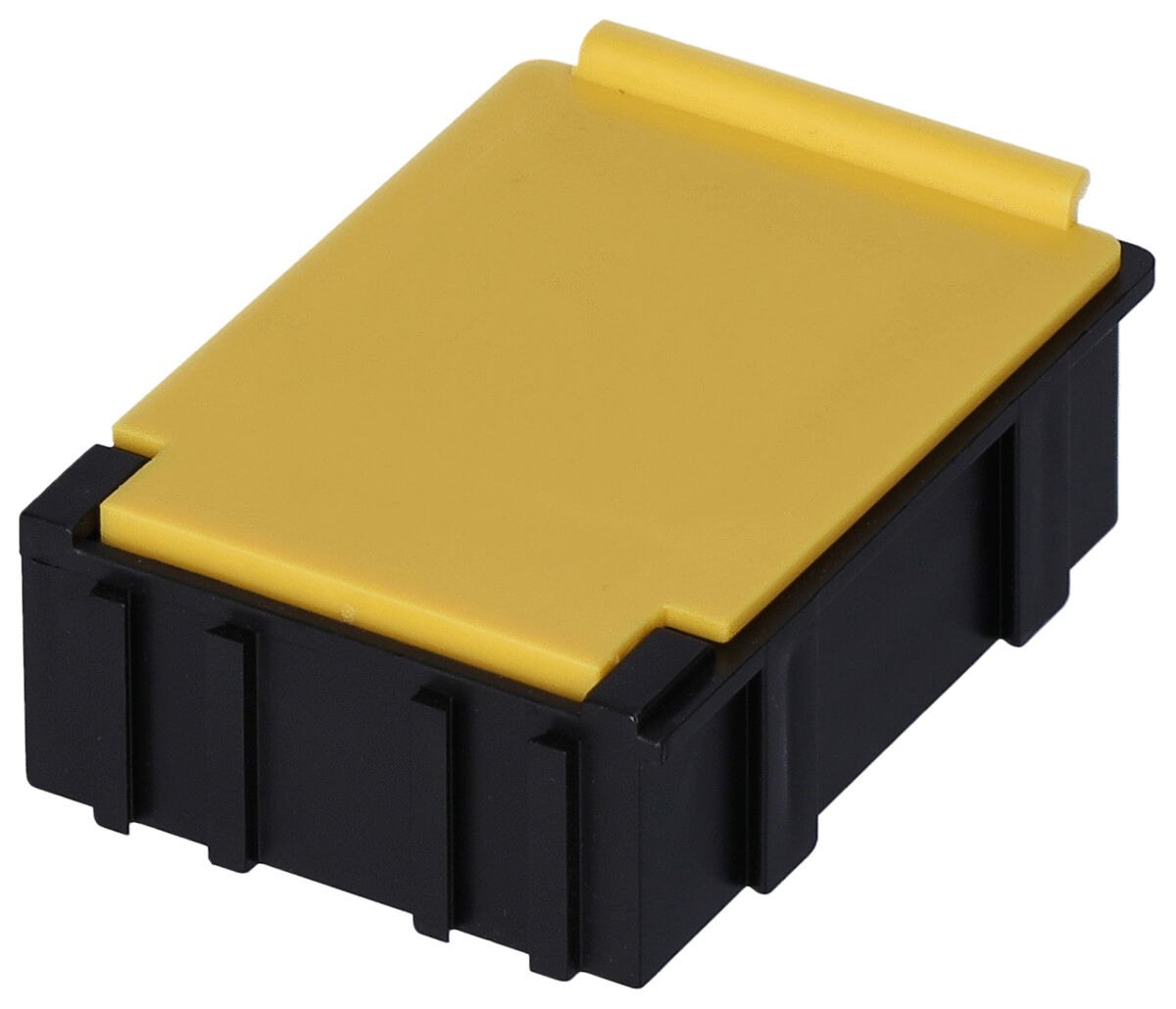

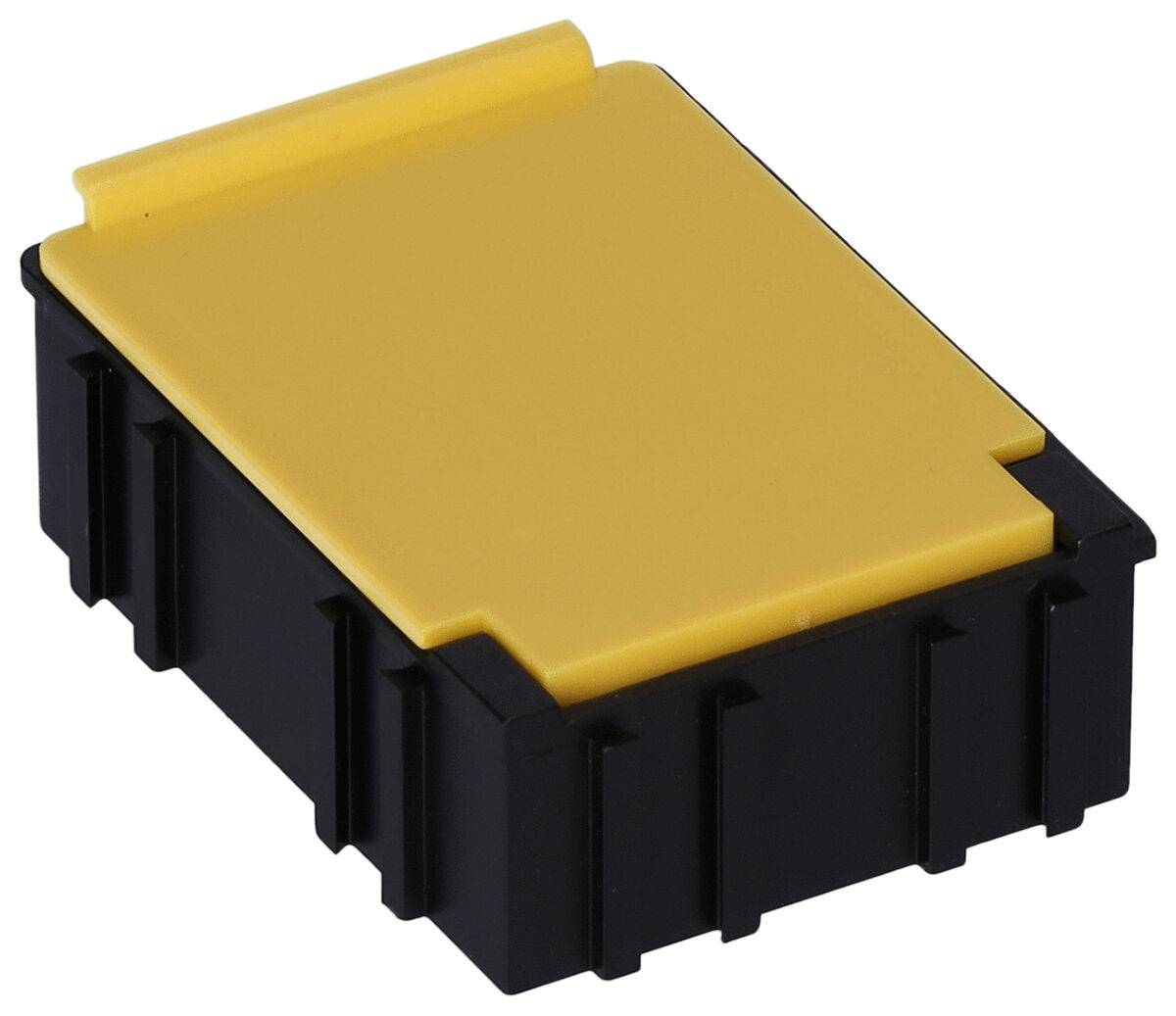

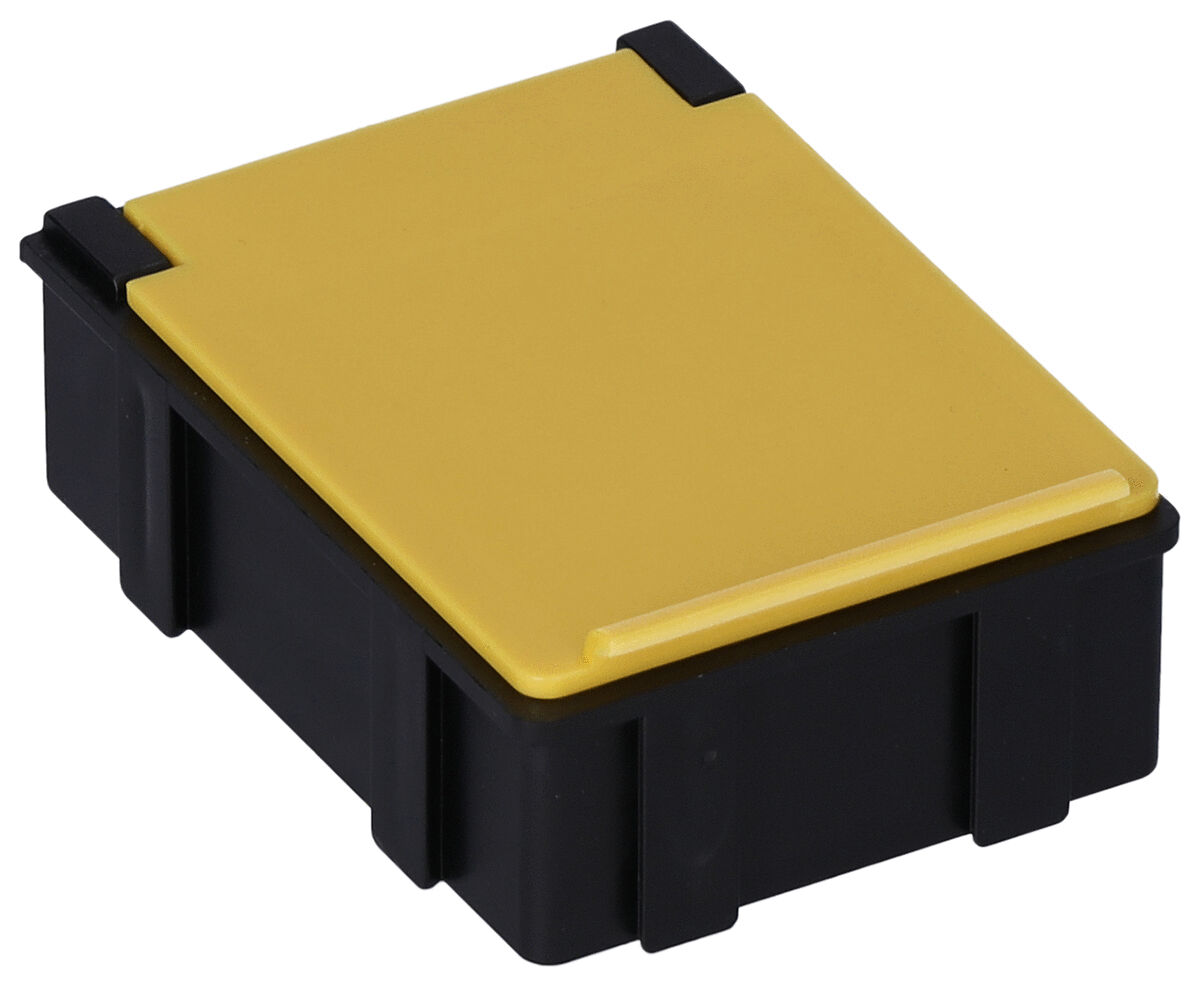

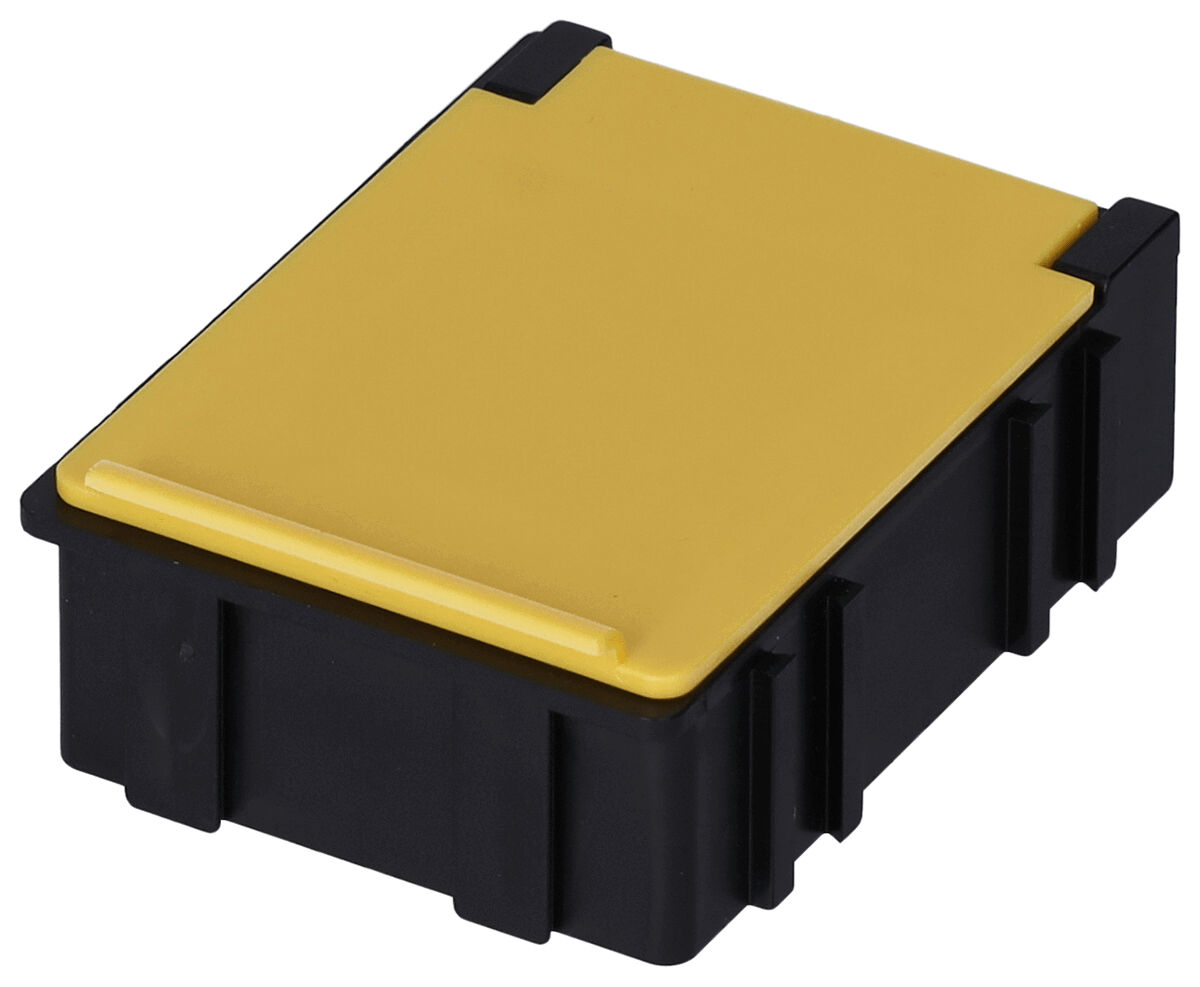

The SMD folding box N3 in size 3 (large) is an ideal solution for the secure and organized storage and provision of SMD components. This product is characterized by its high functionality and adaptability. The box is available in black and yellow, with the black base being conductive and the yellow lid being dissipative.The box complies with the ESD standard DIN EN 61340-5-1 and offers optimal protection against electrostatic discharges due to its conductive properties. With a width of 42.3 mm, a height of 21 mm, and a length of 57.4 mm, it provides ample space for components that can be securely stored within dimensions of 41x37x15 mm.
The lid of the box can be easily replaced, remains open on its own, and can be securely closed with a spring pressure. Labels for marking can be easily applied, and the boxes can be precisely integrated into setup cabinets of size 2.0.
Manufactured by Licefa, this product guarantees reliability and quality, supported by a weight of 13.7 g and a continuous operating temperature of -20 to 80 °C.
Details
- Color Color
- black / yellow
- Height Height
- 21 mm
- Internal height
- 15 mm
- Internal length
- 41 mm
- Internal width Internal width
- 37 mm
- Length Length
- 57.4 mm
- Width Width
- 42.3 mm
- Conductivity Conductivity
- dissipative / conductive
- Surface resistance Rs Surface resistance Rs
- 103 - 105 Ω
- Version Version
- with yellow lid
- Size Size
- N3 (large)
- Continuous use temperature Continuous use temperature
- -20-80 °C
- Weight Weight
- 13.7 g
For a clear and ready-to-hand storage respectively provision of SMD components. The lids can be easily exchanged, stay open independently and can be closed by spring pressure. Labels for inscription can be simply affixed. The SMD folding boxes can be exactly integrated into the racks of size 2.0.
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
SMD Folding boxes, conductive/dissipative
Article image
Article description
Color
Height
Internal height
Internal length
Internal width
Length
Width
Conductivity
Surface resistance Rs
Version
Size
Continuous use temperature
Weight
Price
Compare
yellow / black
21 mm
15 mm
16 mm
12 mm
29.4 mm
21.8 mm
dissipative / conductive
103 - 105 Ω
with black lid
N1 (small)
-20-80 °C
4.7 g
yellow / black
21 mm
15 mm
12 mm
37 mm
29.4 mm
42.4 mm
dissipative / conductive
103 - 105 Ω
with black lid
N2 (medium)
-20-80 °C
8.3 g
yellow / black
21 mm
15 mm
41 mm
37 mm
57.4 mm
42.3 mm
dissipative / conductive
103 - 105 Ω
with black lid
N3 (large)
-20-80 °C
13.7 g
yellow / black
21 mm
15 mm
68 mm
57 mm
85.3 mm
63 mm
dissipative / conductive
103 - 105 Ω
with black lid
N4 (maxi)
-20-80 °C
26.5 g
black / yellow
21 mm
15 mm
16 mm
12 mm
29.4 mm
21.8 mm
dissipative / conductive
103 - 105 Ω
with yellow lid
N1 (small)
-20-80 °C
4.7 g
black / yellow
21 mm
15 mm
12 mm
37 mm
29.4 mm
42.4 mm
dissipative / conductive
103 - 105 Ω
with yellow lid
N2 (medium)
-20-80 °C
8.3 g
black / yellow
21 mm
15 mm
41 mm
37 mm
57.4 mm
42.3 mm
dissipative / conductive
103 - 105 Ω
with yellow lid
N3 (large)
-20-80 °C
13.7 g
black / yellow
21 mm
15 mm
68 mm
57 mm
85.3 mm
63 mm
dissipative / conductive
103 - 105 Ω
with yellow lid
N4 (maxi)
-20-80 °C
26.5 g
