Handle, stainless for plug-in board
(Product No.: 053212-1)
The image shows a simple, U-shaped metal bracket. It has two open ends that are bent downwards and could be used for fastening or as a mount.
The image shows a black, diamond-shaped bracket with several vertically oriented circuit boards. These have various electronic components and are fixed to two metal brackets.
Mobile Preview: The image shows a simple, U-shaped metal bracket. It has two open ends that are bent downwards and could be used for fastening or as a mount.
Mobile Preview: The image shows a black, diamond-shaped bracket with several vertically oriented circuit boards. These have various electronic components and are fixed to two metal brackets.
Notice / Inquire

Handle, stainless for plug-in board

dpvlink:
3703
Properties:
Further product information

available available
11,50 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Handle, stainless for plug-in board

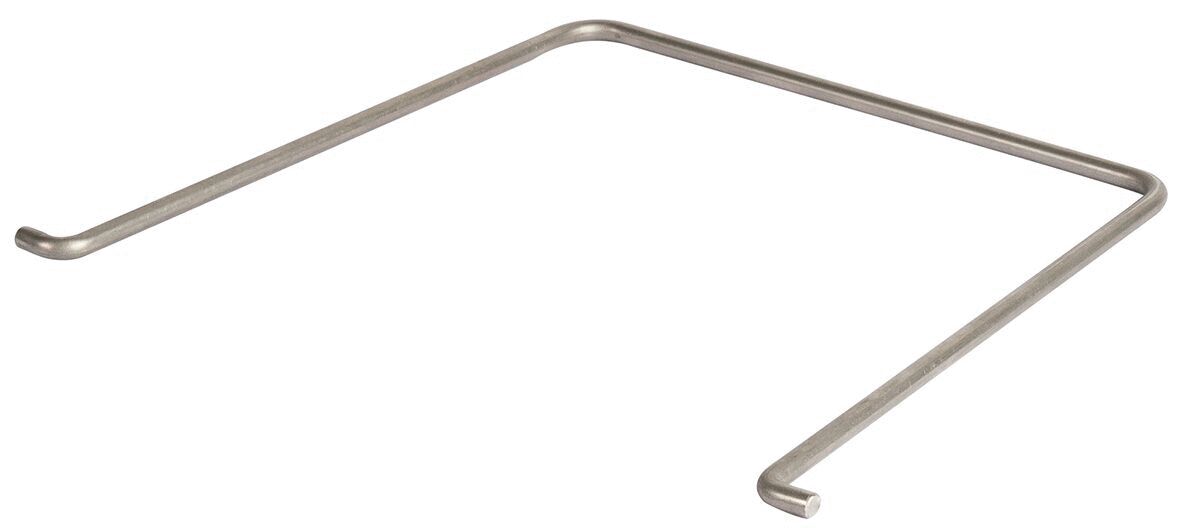

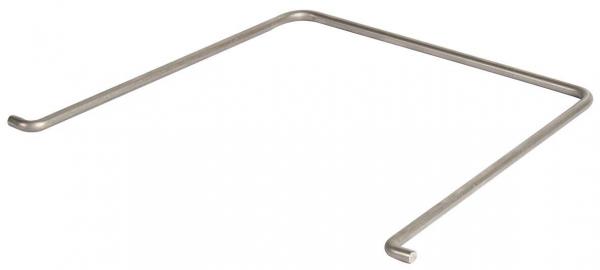

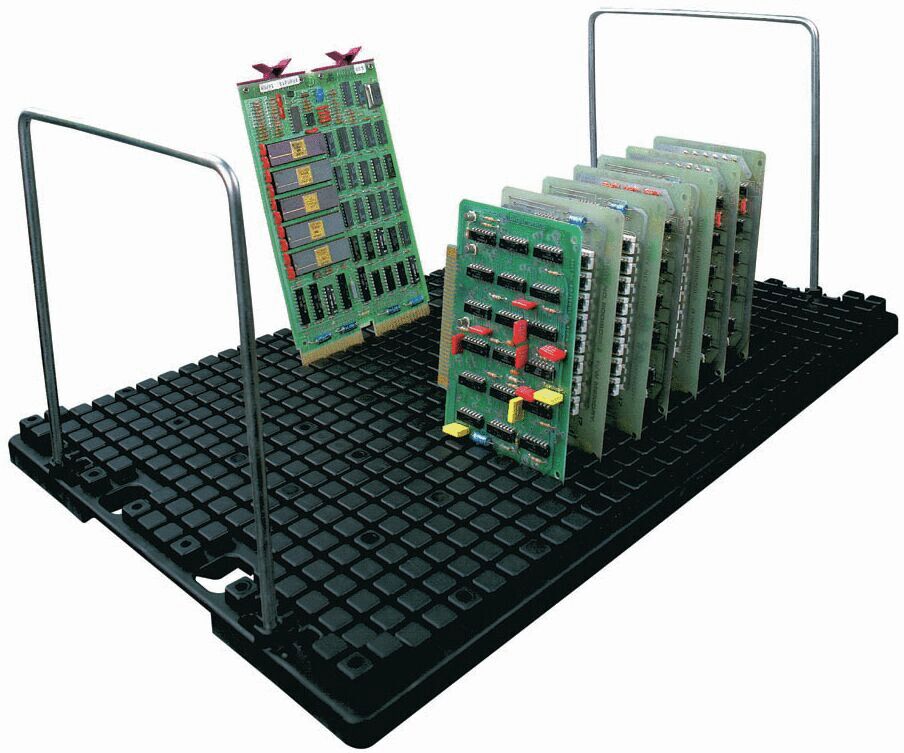

The offered stainless steel bracket is specifically designed for use with the Art. 053212 dimple plate. This product ensures that circuit boards of any size are securely and reliably held on the plug or dimple plates. The electrostatic volume conductivity of the bracket meets the ESD standard DIN EN 61340-5-1, qualifying it for use in ESD-sensitive environments. Note that two pieces of the bracket per dimple plate are required to ensure optimal stability and safety. Ideal for technical applications where durability and reliability in handling electrostatically sensitive components are required.
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 349
Complete Catalog 2023 - 2024

Product Family

Plug-in boards (square knobs)

Properties: secure hold for circuit boards of any size

Material: electrostatically volume conductive

Color: black

Application: ideal for the protection and storage of sensitive electronic components

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
Color
Height
Knob height
Knob length
Knob width
Length
Width
Conductivity
Surface resistance Rs
Knob shape
PCB thickness
Temperature resistance
Price
Compare
053210 - Plug-in board (knobbed)
053210
Plug-in board (knobbed)
black
15 mm
6 mm
8 mm
8 mm
352 mm
252 mm
volume conductive
104 - 1011 Ω
square
1.7 mm
50 - 70 °C
11,34 EUR
053212 - Plug-in board (knobbed)
053212
Plug-in board (knobbed)
black
22 mm
8 mm
14 mm
14 mm
557 mm
357 mm
volume conductive
104 - 1011 Ω
square
2.5 mm

23,00 EUR
053212-1 - Handle, stainless for plug-in board
053212-1
Handle, stainless for plug-in board












11,50 EUR
