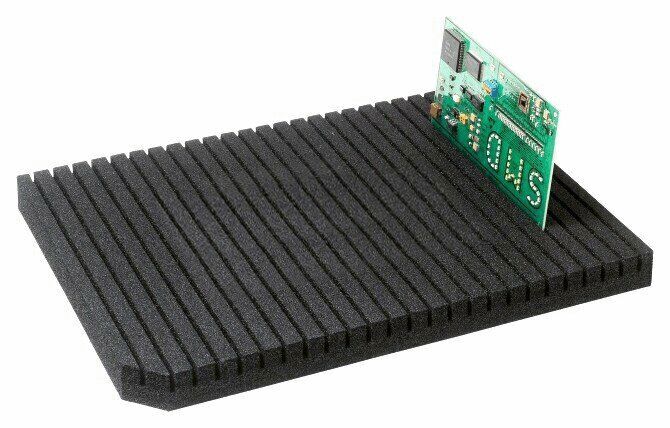

The image displays a rectangular, black foam pad with many parallel grooves. On the left side, there is a small green circuit board protruding from the foam.
PCB holder made of PE foam
(Product No.: 4550.25.0255.LP)
The image displays a rectangular, black foam pad with many parallel grooves. On the left side, there is a small green circuit board protruding from the foam.
Notice / Inquire

PCB holder made of PE foam

dpvlink:
14625
Properties:
Further product information

available available
8,65 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

PCB holder made of PE foam

The circuit board holder made of permanently conductive polyethylene foam is specifically designed for the secure storage and handling of circuit boards. With dimensions of 355 mm in length, 255 mm in width, and 25 mm in height, this product offers a compact and efficient solution for technical environments. The surface is in a discreet black, which facilitates the visual inspection of the circuit boards.
The holder features 25 precisely cut grooves, each 3 mm wide and 12 mm deep, ideal for accommodating various circuit board sizes. Two beveled corners make it easier to insert and remove the boards, thereby simplifying handling. Compliance with the ESD standard DIN EN 61340-5-1 ensures that the holder can effectively dissipate electrostatic discharges, protecting sensitive electronic components during storage and transport.
Color
Color
black
Height
Height
25 mm
Length
Length
355 mm
Width
Width
255 mm
Conductivity
Conductivity
dissipative
Groove depth
Groove depth
12 mm
Groove width
Groove width
3 mm
Groove number
Groove number
25
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 349
Complete Catalog 2023 - 2024

Product Family

PCB holder made of PE foam

Article image
Article description
Color
Height
Length
Width
Conductivity
Groove depth
Groove width
Groove number
Price
Compare
4550.25.0255.LP - PCB holder made of PE foam
4550.25.0255.LP
PCB holder made of PE foam
black
25 mm
355 mm
255 mm
dissipative
12 mm
3 mm
25
8,65 EUR
