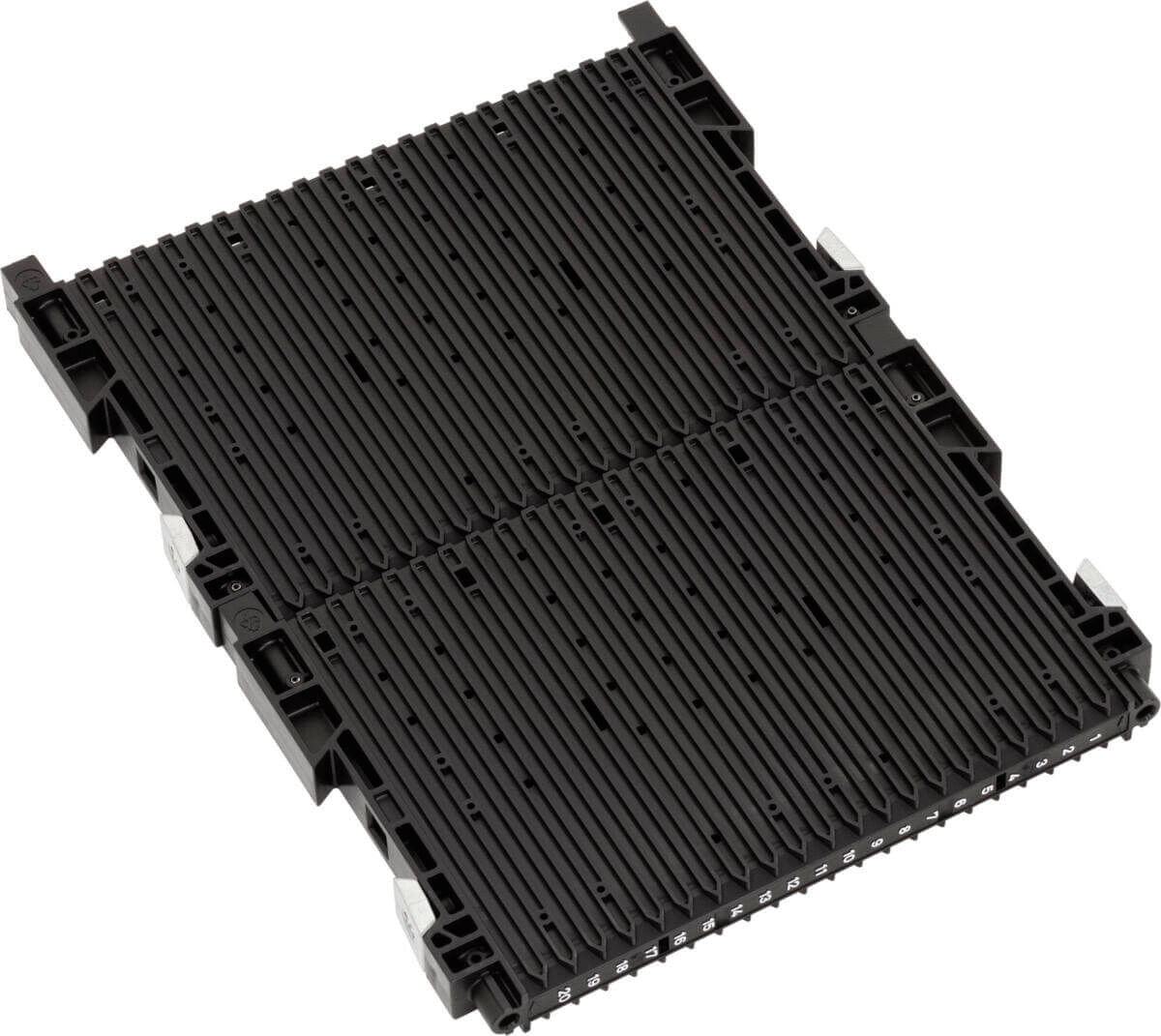

The image shows a rectangular, flat plate made of black plastic. It features a structure with many narrow, parallel grooves and two lateral cutouts.

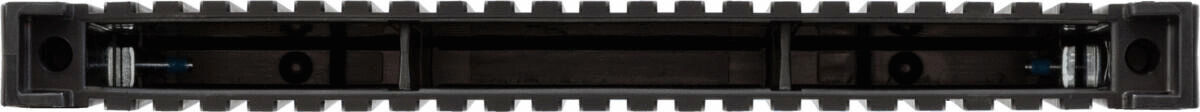

The image shows an elongated, black object with a ridged upper edge and two open compartments in the middle. The structure is sturdy and monochrome.

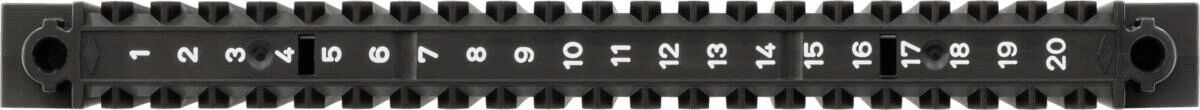

The image shows a black, elongated component with letters and numbers on one side. Along the edges are connection pins used for linking.
Preview: The image shows a rectangular, flat plate made of black plastic. It features a structure with many narrow, parallel grooves and two lateral cutouts.
Preview: The image shows an elongated, black object with a ridged upper edge and two open compartments in the middle. The structure is sturdy and monochrome.
Preview: The image shows a black, elongated component with letters and numbers on one side. Along the edges are connection pins used for linking.
Double slotted wall 300
(Product No.: 2534.000.992)
The image shows a rectangular, flat plate made of black plastic. It features a structure with many narrow, parallel grooves and two lateral cutouts.
The image shows an elongated, black object with a ridged upper edge and two open compartments in the middle. The structure is sturdy and monochrome.
The image shows a black, elongated component with letters and numbers on one side. Along the edges are connection pins used for linking.
Mobile Preview: The image shows a rectangular, flat plate made of black plastic. It features a structure with many narrow, parallel grooves and two lateral cutouts.
Mobile Preview: The image shows an elongated, black object with a ridged upper edge and two open compartments in the middle. The structure is sturdy and monochrome.
Mobile Preview: The image shows a black, elongated component with letters and numbers on one side. Along the edges are connection pins used for linking.
Notice / Inquire

Double slotted wall 300

dpvlink:
4770
Version:
without base stop, unstrengthened
Length :
255 mm
Width :
345 mm
Height :
22 mm
Properties:
Further product information

chevron-down
available available
27,85 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Double slotted wall 300

The Double Groove Wall 300 from WEZ is an effective and modular system specifically designed for handling circuit boards in production environments, storage, and during transportation. With dimensions of 255 x 345 x 22 mm and a weight of 0.76 kg, this product is made from black PP and offers high functionality without a bottom stop. The wall is unreinforced, has 20 grooves with a width of 3.5 mm, a spacing of 10.16 mm, and a depth of 2.5 mm.
The Double Groove Wall is electrostatically volume conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for ESD-sensitive environments. It is temperature resistant from -20 to 80 °C and can be customized to meet practical needs. The modularity of the system allows for seamless integration into Euro containers, ensuring flexible and space-saving storage and transportation.
Version
Version
without base stop, unstrengthened
Length
Length
255 mm
Width
Width
345 mm
Height
Height
22 mm
Color
Color
black
Conductivity
Conductivity
volume conductive
Material
Material
PP
ESD
ESD
yes
Groove depth
Groove depth
2.5 mm
Groove spacing
Groove spacing
10.16 mm
Groove width
Groove width
3.5 mm
Groove number
Groove number
20
Temperature resistance
Temperature resistance
-20 - 80 °C
Weight
Weight
0.76 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail, length = 256 mm
Profile rail 0256 for WEZRack series 180
Length: 256 mm
dpvlink
4797

3,95 EUR
Show product
In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail customer-specific
dpvlink
4797

Price on request
Show product
The image shows two small, black plastic parts. They have a rectangular base with two upright supports that lean slightly upwards. Ideal for mounts or attachments.
Slot lock (Pack = 100 pcs)
Groove lock for WEZ rack system 180
PU = 100 pieces
dpvlink
4803

28,60 EUR
Show product
The image shows a long, narrow, black object with rectangular ends. It has a smooth surface and could be a holder or a support bar.
Handle 230 x 8 mm
Handle 230 x 8 mm
unmounted for WEZ rack 180
dpvlink
4803

2,27 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Double slotted wall 300 / 322

The double slotted wall 300 is a component of the WEZ Rack System 180 and is used for the safe storage and handling of PCBs.

  • Material: volume conductive polypropylene
  • Complies with the ESD standard DIN EN 61340-5-1
  • Available as unreinforced and reinforced version
  • Available with open groove ends to allow the PCBs to slide through, or as bottom stop variants for secure fixing of the PCBs
  • Inlet bevels facilitate insertion and optional clip-on groove locks secure unused grooves.
  • Suitable for 400 x 300 mm containers
  • Holds a maximum of 20 PCBs with an insertion dimension of up to 320 mm

Double slotted wall 300/322
Slot number:20
Slot depth:2.5 mm
Slot width:3.5 mm
Slot pitch:10.16 mm


Article image
Article description
Version
Length
Width
Height
Price
Compare
2534.000.992 - Double slotted wall 300
2534.000.992
Double slotted wall 300
without base stop, unstrengthened
255 mm
345 mm
22 mm
27,85 EUR
2534.900.992 - Double slotted wall 300 reinforced
2534.900.992
Double slotted wall 300 reinforced
without base stop, double reinforced
255 mm
345 mm
22 mm
-
2534.022.992 - Double slotted wall 322
2534.022.992
Double slotted wall 322
with base stop type 22, unstrengthened
255 mm
345 mm
22 mm
0,00 EUR
2534.922.992 - Double slotted wall 322 reinforced
2534.922.992
Double slotted wall 322 reinforced
with base stop type 22, double reinforced
255 mm
345 mm
22 mm
40,30 EUR
