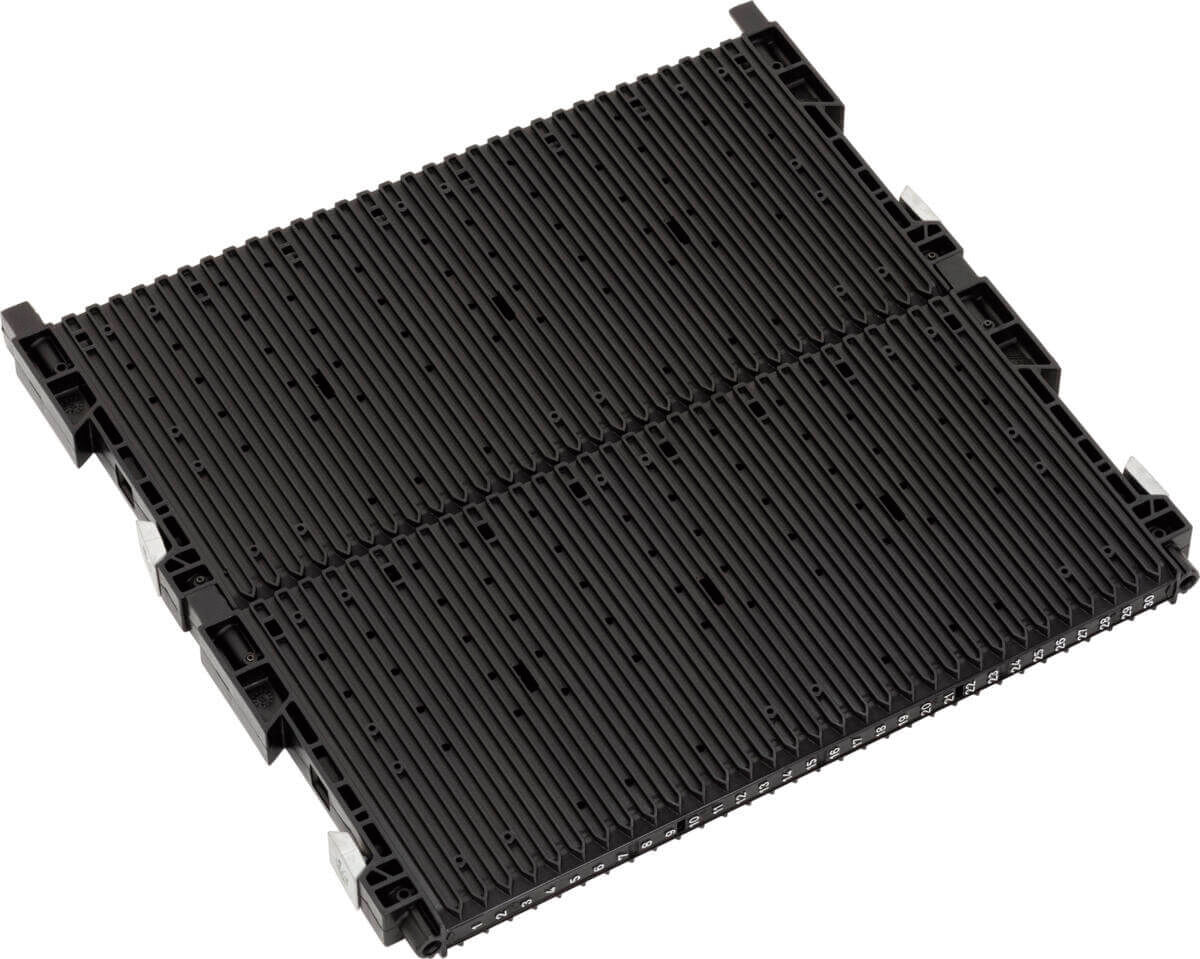

Double slotted wall 400
The Double Groove Wall 400 from WEZ offers an efficient solution for handling circuit boards in production, storage, and transport. With a size of 355 x 345 x 22 mm and a design without a bottom stop, this product is especially designed for the handling of circuit boards. It is modular and fits perfectly into Euro containers, making it a versatile tool for various applications.
The double groove wall is made of black PP, is electrostatically conductive, and meets the ESD standard DIN EN 61340-5-1. Weighing only 0.98 kg, with a groove width of 3.5 mm and a groove depth of 2.5 mm, it combines lightness with functionality. The wall is unreinforced and offers 30 grooves, which are temperature resistant from -20 to 80 °C. These features make the product an optimal choice for technical buyers who value quality and specifications.
The double groove wall is made of black PP, is electrostatically conductive, and meets the ESD standard DIN EN 61340-5-1. Weighing only 0.98 kg, with a groove width of 3.5 mm and a groove depth of 2.5 mm, it combines lightness with functionality. The wall is unreinforced and offers 30 grooves, which are temperature resistant from -20 to 80 °C. These features make the product an optimal choice for technical buyers who value quality and specifications.
Details
- Length [mm] Length [mm]
- 355 mm
- Width [mm] Width [mm]
- 345 mm
- Height [mm] Height [mm]
- 22 mm
- Version Version
- without base stop, unstrengthened
- Color Color
- black
- Conductivity Conductivity
- volume conductive
- Material Material
- PP
- ESD ESD
- yes
- Groove depth Groove depth
- 2.5 mm
- Groove width Groove width
- 3.5 mm
- Groove number Groove number
- 30
- Temperature resistance Temperature resistance
- -20 - 80 °C
- Weight Weight
- 0,.98 kg
Simple and safe system for PCB handling in the production, in the storage and for the transport. Modular design fits in Euro containers. Individually configurable for the different practical needs.
Electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1
Open slots or base stop?
The slotted walls of the series 180 are available with open or closed slot ends.
Versions 000 / 900 open slots for pushing through
Versions 022 922 base stop 22, support width = 2.5 mm
Versions 032 / 932 base stop 32, support width = 7.5 mm
Versions 025 / 925 base stop 25, support width = 4.0 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Length [mm]
Width [mm]
Height [mm]
Version
Price
Compare
355 mm
345 mm
22 mm
with base stop type 22, unstrengthened
355 mm
345 mm
32 mm
with base stop type 22, double strengthened
355 mm
345 mm
32 mm
with base stop type 22, unstrengthened
355 mm
345 mm
22 mm
without base stop, unstrengthened
355 mm
345 mm
22 mm
without base stop, double strengthened
355 mm
345 mm
22 mm
with base stop type 22, double strengthened
